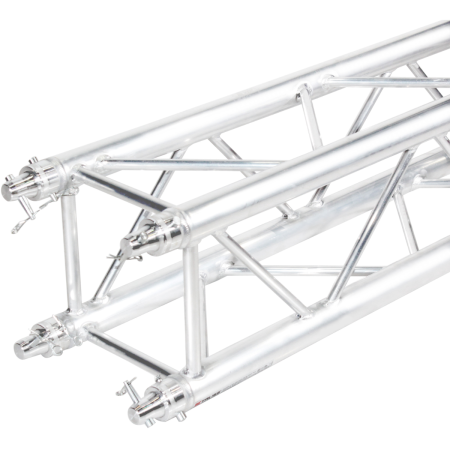

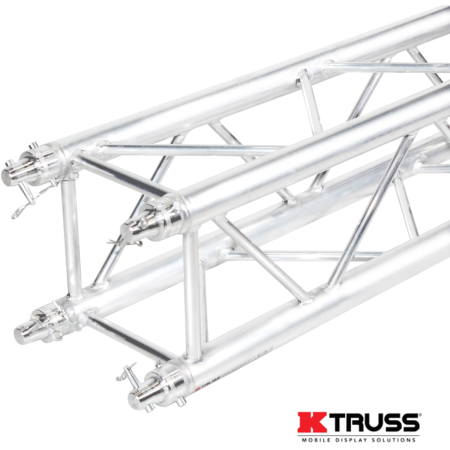

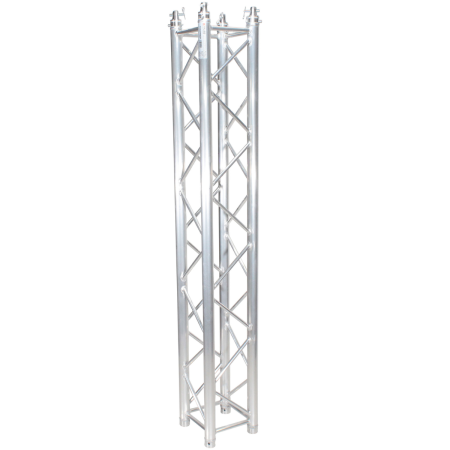

ProX KT-F34SQ656

Display Truss Segment

ProX KT-F34SQ656 is a 6.56 ft / 2 m F34 K-Truss aluminum truss segment designed for display structures and non-load-bearing systems. Its lightweight aluminum construction, standard square truss profile, and conical connector design make it useful for trade show booths, DJ booths, DJ totems, architectural displays, and light-duty event structures.

ProX KT-F34SQ656 Competitive Differences

• 6.56 ft / 2 m F34 square truss segment for display and light-duty structural applications
• Designed for non-load-bearing systems and reduced-load display structures
• EN-AW T6-6061 aluminum construction provides display-grade strength with manageable weight
• Standard conical connector system supports connection with same-size, same-style compatible truss systems
• 11.42 inch square profile maintains a standard truss appearance for booths, totems, and displays
• K-Truss load capacity is rated at 75% of the ProX 2 mm SQ series

ProX KT-F34SQ656 Description

The ProX KT-F34SQ656 is part of the ProX K-Truss series, an economy light-structural trussing line designed primarily for display systems and non-load-bearing applications. It provides the look and layout flexibility of square F34 truss while using a reduced-load design for trade show, retail, architectural, and event display environments.

This 6.56 ft / 2 m truss segment is well suited for trade show booths, DJ booths, DJ totems, exhibition displays, architectural non-load-bearing systems, and support applications involving lighter lighting fixtures. Its square 11.42 inch profile and 2 inch main tubes provide a familiar truss appearance for clean, professional display builds.

The K-Truss system uses a standard conical connector style, allowing it to connect with same-size and same-connector-style compatible truss systems. Available corners, base plates, connectors, and accessories can expand the system into a variety of booth, display, and light-duty event configurations.

The ProX KT-F34SQ656 has a reduced load chart and is not intended to replace or substitute for standard or heavy-duty load-bearing truss segments. Always verify equipment weight, follow the applicable ProX K-Truss loading chart, and consult a qualified engineer for specific applications.

KT-F34SQ656 Features

• 6.56 ft / 2 m F34 K-Truss square truss segment
• Designed for display and non-load-bearing systems
• Suitable for trade show booths, DJ booths, DJ totems, architectural displays, and light-duty event structures
• Economy light-structural trussing design
• EN-AW T6-6061 aluminum display-grade construction
• Standard conical connector system
• Compatible in size only with many major F34 box square truss systems using the same connector style
• Constructed by certified welders
• 11.42 inch square exterior profile
• 2 inch main tubes with 0.06 inch wall thickness
• 0.63 inch braces
• K-Truss load capacity is 75% of the ProX 2 mm SQ series
• Supports a standard truss appearance for reduced-load display designs
• Not intended as a replacement for standard or heavy-duty load-bearing truss segments

KT-F34SQ656 Specifications

• Product Type: F34 economy aluminum square truss segment
• Series: ProX K-Truss
• Length: 6.56 ft / 2 m
• Application: Display and non-load-bearing systems
• Material: EN-AW T6-6061 aluminum
• Connector Type: Standard conical connector
• Width: 11.42 in (290 mm)
• Height: 11.42 in (290 mm)
• Main Tube Diameter: 2 in (50 mm)
• Wall Thickness: 0.06 in (1.5 mm)
• Brace Diameter: 0.63 in (16 mm)
• Exterior Dimensions: 11.42 x 11.42 x 78.72 in
• Product Weight: 18.00 lb
• Shipping Dimensions: 12.00 x 12.00 x 80.50 in
• Shipping Weight: 20.00 lb
• Suggested Shipping Method: Parcel

ProX KT-F34SQ656 (ProX KTF34SQ656)
