This package includes:
12-Platform Illuminated Acrylic Stage Package
The ProX XSA-2X2-8 + Ape Labs Coin INS 2.0 package combines twelve modular 2x2ft acrylic stage platforms with twelve compact RGBaW LED fixtures and a complete selection of power distribution and wireless control accessories. Designed for DJs, event production companies, wedding stages, clubs, lounges, exhibits, and special events, this system makes it easy to create a coordinated illuminated platform or dance floor configuration with individual lighting inside each stage section.
ProX XSA-2X2-8 + Ape Labs Coin INS 2.0 Competitive Differences
- Includes 12 matching 2x2ft ProX acrylic Lumo Stage platforms and 12 Ape Labs Coin INS 2.0 fixtures
- Places a compact 15W RGBaW light inside each platform for individually illuminated stage sections
- Ape Labs Coin INS 2.0 fixtures feature IP65-rated, fanless solid-state construction
- Built-in Ape Labs wireless control eliminates the need to run lighting data cables between fixtures
- Included ApeRemote controls any quantity of compatible Ape Labs fixtures and supports four independent groups
- Ape Labs MusikMode creates synchronized music-responsive light shows without DMX programming
- Included 5V 6A IP65 PSU is capable of powering up to 60 Coin INS 2.0 fixtures when properly distributed
- Package includes 3 four-way splitters, 1 three-way splitter, and 11 IP65 extension cables for flexible power routing
- Modular ProX platforms can be arranged in multiple configurations and feature openings for convenient cable routing
- Each ProX platform has a 300 lb safe working load when weight is evenly distributed
ProX XSA-2X2-8 + Ape Labs Coin INS 2.0 Description
The ProX XSA-2X2-8 Lumo Stage sections provide a modular foundation for building illuminated risers, platforms, displays, and dance floor configurations. Each section measures 2 x 2ft with an 8-inch assembled height and uses clear acrylic panels that allow lighting mounted inside the structure to remain visible. The modular design makes it possible to arrange multiple sections together for custom stage layouts, while pre-cut cable access helps keep wiring organized.
Each platform in this package is paired with an Ape Labs Coin INS 2.0. Despite its compact size, the fixture uses a 15W RGBaW LED with Ape Labs AmberWhite technology and produces up to 545 lumens. The dedicated 2700K AmberWhite channel has a CRI of 90, while the RGB channels provide vivid saturated colors for transforming the clear ProX acrylic into colorful illuminated stage surfaces.
The Coin INS 2.0 also provides the wireless functionality associated with the Ape Labs ecosystem. The included ApeRemote communicates directly with the fixtures over 2.4GHz RF at distances up to 200ft and does not require line of sight. Fixtures can be divided into four groups for independent color, brightness, program, speed, strobe, and MusikMode control. Ape Labs Connect is not included with this package and is required for app-based control.
Power is handled by the included Ape Labs IP65 5V 6A 30W power supply. Three 4-way IP65 splitters, one 3-way IP65 splitter, eight 4.9ft extension cables, and three 9.8ft extension cables provide flexible options for distributing low-voltage power between the twelve lighting fixtures. The Coin INS 2.0 fixtures, compatible PSU components, splitters, and extension cables are designed for IP65 indoor/outdoor applications, while the stage sections provide a durable modular platform for event and production use.
Together, the ProX platforms and Ape Labs lighting create an integrated stage system suited to weddings, DJ performances, nightclub installations, lounges, corporate events, trade shows, retail displays, and other productions where an illuminated stage surface can become part of the visual design.
XSA-2X2-8 + Coin INS 2.0 Package Features
- 12 modular ProX XSA-2X2-8 acrylic Lumo Stage platform sections
- 12 Ape Labs Coin INS 2.0 IP65 RGBaW LED fixtures
- One Coin INS 2.0 fixture available for placement inside each platform
- 15W RGBaW LED with AmberWhite technology in each Coin INS 2.0
- Fanless, solid-state lighting fixtures for silent operation
- IP65-rated Coin INS 2.0 fixtures for indoor and outdoor installations
- Ape Labs wireless control built into each fixture
- ApeRemote control range up to 200ft
- Four independently controllable fixture groups using the ApeRemote
- Mix-and-match compatibility with other Ape Labs fixtures
- MusikMode synchronized music-responsive lighting operation
- 29 curated Ape Labs color presets
- Adjustable brightness, programs, program speed, and strobe functions
- Flicker-free operation with adjustable PWM from 500Hz to 4000Hz
- Standard 65° effect lens on Coin INS 2.0
- Optional 10°, 15°, 25°, and 45° optics available separately
- Modular acrylic stage sections can be arranged in multiple configurations
- Pre-cut cable routing access in ProX platforms
- Clear acrylic construction allows internal lighting effects to shine through
- Durable, easy-to-clean acrylic platform surfaces
- 300 lb safe working load per ProX platform when evenly distributed
- IP65 low-voltage power supply and power distribution accessories
- Includes both 4.9ft and 9.8ft IP65 power extension cables for flexible layouts
XSA-2X2-8 + Coin INS 2.0 Package Specifications
- ProX Platform Model: XSA-2X2-8
- ProX Platform Quantity: 12
- ProX Platform Size: 24 x 24 x 8 in assembled
- ProX Platform Material: Clear acrylic
- ProX Safe Working Load: 300 lb evenly distributed per platform
- ProX Shipping Dimensions: 25 x 25 x 5.5 in per platform
- ProX Shipping Weight: 24 lb per platform
- Ape Labs Fixture Model: Coin INS 2.0
- Ape Labs Fixture Quantity: 12
- LED Source: 1 x 15W RGBaW LED per fixture
- White Technology: AmberWhite
- AmberWhite Color Temperature: 2700K
- CRI: 90
- Total Lamp Luminous Flux: 545 lm
- Red Wavelength: 622.5nm
- Green Wavelength: 522.5nm
- Blue Wavelength: 457.5nm
- PWM Frequency: Adjustable from 500Hz to 4000Hz
- Dimming: Yes
- Flicker-Free Operation: Yes
- Standard Optic: 65° effect lens
- Optional Optics: 10°, 15°, 25°, and 45°
- Fixture Material: Stainless steel
- Fixture Outdoor Rating: IP65
- Fixture Dimensions: 1.5 x 2.4 in
- Fixture Weight: 0.55 lb each
- Fixture Power Connection: 2-pin IP65 cable
- Remote Model: Ape Labs ApeRemote
- Remote Frequency: 2.4GHz RF
- Remote Range: Up to 200ft
- Remote Groups: 4
- Remote Battery: CR2032 included
- Power Supply: Ape Labs IP65 PSU
- PSU Output: 5V DC, 6A, 30W
- PSU Outdoor Rating: IP65
- PSU Capacity: Supports up to 60 Coin INS 2.0 fixtures when properly distributed
- 4-Way IP65 PSU Splitters: 3
- 3-Way IP65 PSU Splitters: 1
- IP Ext-60 Extension Cables: 8
- IP Ext-60 Cable Length: 60 in / 150 cm / 4.92 ft
- IP Ext-120 Extension Cables: 3
- IP Ext-120 Cable Length: 120 in / 300 cm / 9.84 ft
Coin INS 2.0 Photometric Data
- 10° Optic at 1m / 2m: AmberWhite 1770 / 545 lux; Red 1790 / 515 lux; Green 2300 / 933 lux; Blue 3460 / 809 lux
- 15° Optic at 1m / 2m: AmberWhite 1503 / 402 lux; Red 1400 / 355 lux; Green 2290 / 422 lux; Blue 2970 / 712 lux
- 25° Optic at 1m / 2m: AmberWhite 565 / 126 lux; Red 455 / 100 lux; Green 602 / 133 lux; Blue 1004 / 215 lux
- 45° Optic at 1m / 2m: AmberWhite 272 / 73 lux; Red 242 / 64 lux; Green 319 / 101 lux; Blue 522 / 170 lux
- 65° Effect Lens at 1m / 2m: AmberWhite 125 / 31 lux; Red 87 / 23 lux; Green 130 / 38 lux; Blue 177 / 48 lux

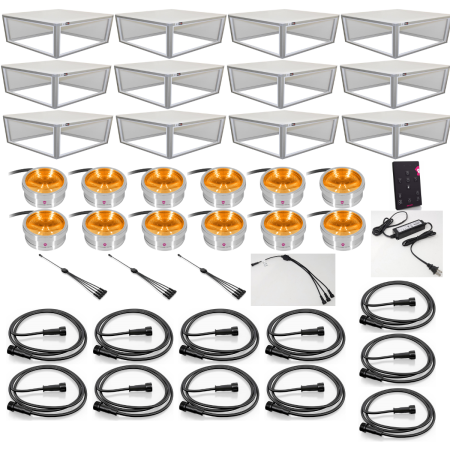

What's In The Box
- 12 x ProX XSA-2X2-8 Lumo Stage Acrylic Platform Sections
- 12 x Acrylic Top Panels
- 24 x Acrylic Side Panels
- Security clamps for the ProX platform sections
- 12 x Ape Labs Coin INS 2.0 IP65 Fixtures
- 1 x Ape Labs ApeRemote
- 1 x CR2032 Battery for ApeRemote
- 1 x Ape Labs IP65 PSU Power Supply
- 3 x Ape Labs 4-Way IP65 PSU Splitters
- 1 x Ape Labs 3-Way IP65 PSU Splitter
- 8 x Ape Labs IP Ext-60 4.9ft IP65 Power Extension Cables
- 3 x Ape Labs IP Ext-120 9.8ft IP65 Power Extension Cables
