ProX T 8RSP

8U Shockproof Rack Flight Case

The ProX T-8RSP is an ATA-style vertical rack case designed to protect standard 19-inch amplifiers, mixers, effects processors, networking components, and other rack-mountable equipment. Its suspended inner rack, high-density foam support, reinforced construction, and caster wheels provide secure storage and easier transportation for touring, mobile DJ, production, and installation applications.

ProX T-8RSP Competitive Differences

• High-density 1.5-inch foam suspension helps isolate mounted equipment from shocks and vibration
• Dual front and rear rack rails support equipment securely while reducing stress on rack ears
• Twenty-inch front-to-rear rail depth accommodates a wide range of professional rack equipment
• Removable front and rear lids provide convenient access to controls, connections, and cabling
• Heavy-duty caster wheels make the fully loaded rack easier to move at venues and production sites
• Reinforced 3/8-inch plywood construction is designed for repeated mobile and touring use

ProX T-8RSP Description

The ProX T-8RSP provides eight vertical rack spaces for standard 19-inch professional audio, DJ, lighting-control, and networking equipment. Its 20-inch front-to-rear rail depth supports amplifiers, signal processors, wireless systems, power distribution equipment, and other rack-mounted components.

The inner rack is surrounded by 1.5 inches of high-density foam, creating a shock-isolated structure that helps reduce the transfer of impacts and vibration to installed equipment. Front and rear mounting rails hold components securely from both sides, helping prevent movement and reducing strain on equipment rack ears.

The case is built from laminated 3/8-inch plywood and reinforced with steel ball corners, dual-anchor rivets, industrial twist-lock latches, and recessed spring-loaded handles. Removable front and rear lids use tongue-and-groove closures for a secure fit while providing fast access during setup and teardown.

Heavy-duty caster wheels improve mobility when the rack is loaded, while durable rubber feet provide support when the case is positioned or stacked. The T-8RSP is suited for touring musicians, mobile DJs, production companies, rental operations, houses of worship, venues, and technicians who need dependable protection for rack-mounted equipment.

T-8RSP Features

• Eight vertical rack spaces
• Standard 19-inch rack-mounting width
• Twenty-inch depth from front rail to rear rail
• Dual front and rear mounting rails
• Includes rack-mounting hardware
• High-density 1.5-inch foam shock-isolation system
• ATA-300-style flight case construction

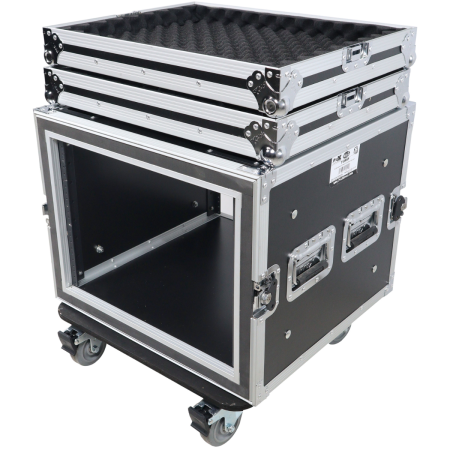

• Removable front and rear lids
• Approximately 2.5 inches of lid depth at the front and rear
• Two recessed spring-loaded handles on each side
• Industrial-strength butterfly twist-lock latches
• Padlock-compatible latch design
• Heavy-duty steel ball corners
• Dual-anchor rivets
• Durable rubber feet
• Laminated 3/8-inch plywood construction
• Heavy-duty caster wheels
• Black and silver exterior finish

T-8RSP Specifications

• Rack Capacity: 8U
• Rack Width: Standard 19 in
• Front-to-Rear Rail Depth: 20 in (508 mm)
• Foam Thickness: 1.5 in (38 mm)
• Front Lid Depth: 2.5 in (64 mm)
• Rear Lid Depth: 2.5 in (64 mm)
• Panel Material: Laminated 3/8 in (9 mm) plywood
• Interior Dimensions: 14 x 19 x 20 in (356 x 483 x 508 mm)
• Exterior Dimensions with Casters: 22 x 23 x 27 in (559 x 584 x 686 mm)
• Case Weight: 70 lb (31.8 kg)
• Shipping Dimensions: 20 x 25 x 29 in (508 x 635 x 737 mm)
• Shipping Weight: 76 lb (34.5 kg)

What's In The Box

• ProX T-8RSP 8U shockproof rack flight case
• Front removable lid
• Rear removable lid
• Caster wheel set
• Rack-mounting hardware
