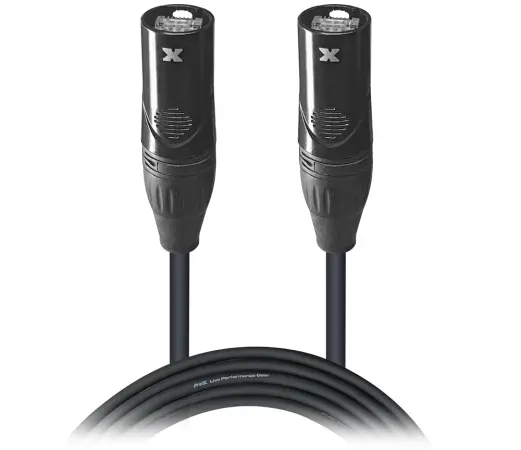

High-Performance Shielded Cat 6 Cable for Network and Stage Connections
The
ProX XC-CAT6-50 is a professional-grade 50 ft Shielded Twisted Pair (STP) Category 6 cable designed for touring sound, permanent installations, A/V stage technology, and DMX systems. It ensures uncompromised signal integrity, making it ideal for digital snakes, stageboxes, and data link applications. This cable delivers superior performance with enhanced shielding to minimize interference and maintain optimal data transmission.
ProX XC-CAT6-50 Competitive Differences
- 50 ft STP Cat 6 Ethernet cable with ProX RJ45 connectors
- 550MHz bandwidth for high-speed data transmission
- Shielded system with aluminum foil and braided/woven screen for superior EMI protection
- 100% pure copper inner conductor for optimal signal integrity
- Complies with CAT6 specifications (TIA/EIA 568B, ISO/IEC 11801, EN 50173)
- Thermoplastic polyolefin insulation with no-lead jacket for durability
- Compact cable diameter to reduce interference and improve performance
- IP65-rated for dust and waterproof protection in mated condition
- Individually tested for quality assurance
ProX XC-CAT6-50 Description
The
ProX XC-CAT6-50 is built for professional audio, video, and data transmission applications. Compared to Cat 5 and Cat 5e cables, Cat 6 provides higher bandwidth and superior noise resistance, ensuring clean and uninterrupted signal flow. Designed for demanding live sound and installation environments, this cable meets industry standards and is UL Code 444 and National Electrical Code TIA-568-C.2 compliant.
Whether used for networking, stage connections, or data transfer, this shielded Cat 6 cable offers high-speed performance and durability. With a rugged outer jacket and advanced shielding technology, it effectively minimizes crosstalk and external interference, making it an essential component for professionals in the entertainment, IT, and broadcast industries.
XC-CAT6-50 Features
- Shielded Twisted Pair (STP) Category 6 Ethernet cable
- Genuine ProX XC-RJ45M connectors
- 19 x 0.12 Copper OFC Inner Conductor for pure signal transfer
- 6 x 16 x 0.12 braided TC shield for superior noise reduction
- Aluminum foil shielding for added external interference protection
- Cotton & PP Cross shielding for enhanced durability
- Thermoplastic polyolefin insulation with no lead jacket
- Outer Diameter (O.D.): 6.8mm (1/4”+)
- Capacitance: 46 pF/ft.
- Bending Radius: 1” minimum
- Pulling Tension: 25 ft-lb (110 N) maximum
- IP65 rated for dust and water resistance
- Complete Coil™ technology for accurate and detailed clarity
- Individually tested to ensure quality and performance
XC-CAT6-50 Specifications
- Bandwidth: 550MHz
- Maximum 10GBASE-T length: 180 ft (55m)
- Compliance: TIA/EIA 568B, ISO/IEC 11801, EN 50173
- Material: 100% pure copper wire (not copper-clad aluminum)
- UL Code 444 and National Electrical Code TIA-568-C.2 compliant
- Product Dimensions: 50 ft length
- Shipping Dimensions: 2.00"H x 3.00"W x 14.00"L
- Shipping Weight: 3.00 lbs
- UPC: 019372410072
This ProX STP Cat 6 cable ensures reliability, performance, and durability for all professional networking and stage applications.
Pro X XC CAT6 50
(ProX 50ft Ethercon Cat 6)
