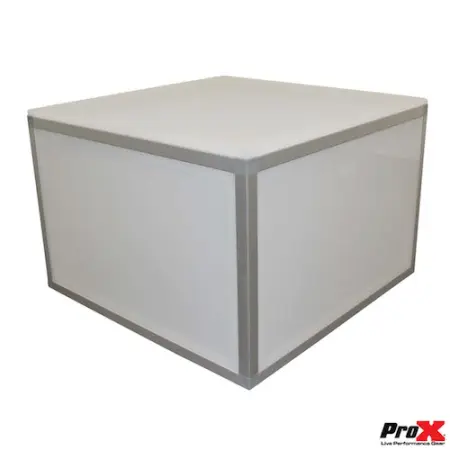

ProX XSA-2X2-16 (16in 2x2ft Acrylic Stage)

Modular Acrylic Stage Platform Riser

The ProX XSA-2X2-16 is a 16-inch-high modular acrylic stage platform designed for illuminated dance floors, DJ risers, performance stages, and decorative event displays. Part of the ProX LUMOStage series, this 24 x 24-inch platform features a durable aluminum frame, a translucent white acrylic top, and two matching acrylic side panels. With a maximum evenly distributed load capacity of 300 lbs (136.1 kg), the modular design allows multiple sections to be connected using the included security clamps. Its translucent surfaces can be illuminated with separately available LED lighting to create colorful effects for weddings, nightclubs, live performances, corporate events, and entertainment venues.

ProX XSA-2X2-16 Competitive Differences

• 2 x 2ft Modular Stage Platform: Measures 24 x 24 inches (61 x 61 cm), allowing multiple sections to be arranged into larger stage and dance floor configurations.
• 16-Inch Platform Height: Provides an elevated surface suitable for DJ platforms, performance risers, and event displays.
• 300 lb Load Capacity: Supports up to 300 lbs (136.1 kg) of evenly distributed weight per platform.
• Translucent White Acrylic: Allows light from separately available LED fixtures to shine through the top and side panels for illuminated stage effects.
• Durable Aluminum Frame: Provides structural support for the modular platform while allowing convenient assembly and transportation.
• 10 mm Acrylic Top: Features a durable, smooth acrylic platform surface designed for stage and dance floor applications.
• Included Security Clamps: Connect adjacent stage sections for creating larger modular platforms and customized layouts.
• Two Acrylic Side Panels: Includes two matching translucent side covers, with additional panels available separately for fully enclosed configurations.
• Lighting Integration: Open underside and cable-routing access allow LED wash lights, light strips, or other compatible lighting effects to be installed beneath the acrylic surface.

ProX XSA-2X2-16 Description

The ProX XSA-2X2-16 LUMOStage acrylic platform riser provides a versatile foundation for illuminated stages, raised dance floors, DJ platforms, and event displays. Measuring 24 inches wide, 24 inches deep, and 16 inches high, each section features an aluminum support frame with a translucent white acrylic top and two matching side panels. The smooth 10 mm acrylic top supports up to 300 lbs of evenly distributed weight, making it suitable for a variety of professional staging applications.

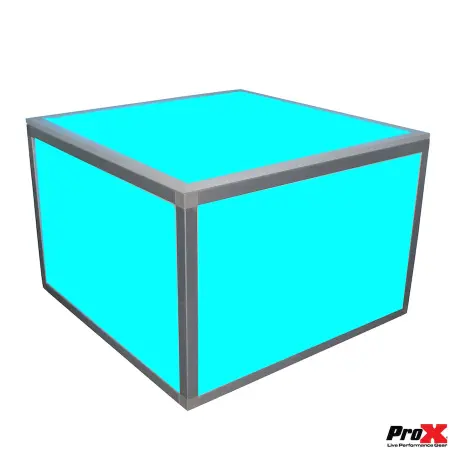

The translucent acrylic panels allow lighting professionals to create custom illuminated effects using separately available LED fixtures or light strips positioned inside the platform. When illuminated, the acrylic surfaces diffuse the light to produce glowing colors and decorative effects. This makes the LUMOStage particularly useful for weddings, nightclubs, lounges, trade shows, live events, and other environments where illuminated staging can enhance the visual presentation. A pre-cut cable-routing opening provides convenient access for power and lighting connections.

Designed as part of a modular staging system, the XSA-2X2-16 can be connected with additional compatible sections to create larger platforms, elevated dance floors, drum risers, DJ stands, and customized event layouts. The included interior security clamps help secure adjoining platform sections together. Its modular construction allows event professionals to expand or rearrange their staging to accommodate different venue sizes and performance requirements.

The platform ships unassembled and includes the aluminum frame, one acrylic top panel, two acrylic side panels, and connecting hardware. The underside remains open between structural supports to accommodate wiring and optional lighting equipment. Because each standard XSA-2X2-16 section includes only two side panels, additional side covers may be necessary when building a standalone platform or an arrangement using fewer than four sections. The separately available ProX XSA-16SX2 two-panel accessory can be used to complete an enclosed four-sided configuration.

XSA-2X2-16 Features

• 16-inch-high modular acrylic stage platform
• 24 x 24-inch (2 x 2ft) platform surface
• Designed as part of the ProX LUMOStage modular staging system
• 300 lb (136.1 kg) maximum evenly distributed load capacity
• Durable aluminum support frame
• Translucent white acrylic top panel
• Two included translucent white acrylic side panels
• 10 mm (0.39 in) acrylic top thickness
• Smooth acrylic platform surface suitable for stage and dance floor applications
• Translucent panels allow compatible LED lighting to illuminate the platform
• Supports optional LED wash lighting and LED strip installations

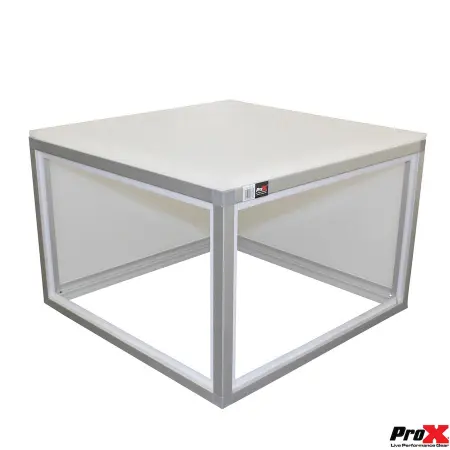

• Open underside for convenient lighting equipment placement and wiring
• Pre-cut opening for power cable routing
• Modular design allows multiple sections to form larger stage layouts
• Includes interior security clamps for connecting adjacent sections
• Can be configured for dance floors, DJ stands, drum risers, and event displays
• Compatible with additional ProX LUMOStage sections
• Additional XSA-16SX2 side panel kit available separately
• Ships unassembled for transportation and storage
• Designed for assembly using the included frame and hardware
• Easy-to-clean acrylic surfaces
• Suitable for weddings, nightclubs, lounges, trade shows, event venues, and live performances
• Optional lighting fixtures and LED strips sold separately

XSA-2X2-16 Specifications

• Brand: ProX
• Model: XSA-2X2-16
• Series: LUMOStage
• Product Type: Modular Acrylic Stage Platform Riser
• Platform Dimensions (L x W): 24 x 24 in (610 x 610 mm)
• Platform Height: 16 in (406 mm)
• Overall Dimensions (L x W x H): 24 x 24 x 16 in (610 x 610 x 406 mm)
• Platform Surface Area: 4 sq ft (0.37 sq m)
• Maximum Load Capacity: 300 lbs (136.1 kg), Evenly Distributed
• Frame Material: Aluminum
• Top Panel Material: Acrylic
• Side Panel Material: Acrylic
• Acrylic Color: Translucent White
• Top Panel Thickness: 10 mm (0.39 in)
• Included Top Panels: 1
• Included Side Panels: 2
• Side Panel Height: 16 in (406 mm)
• Stage Connection: Interior Security Clamps
• Modular Configuration: Connectable Platform Sections
• Lighting Compatibility: Optional LED Wash Fixtures and LED Strip Lighting
• Lighting Access: Open Underside with Cable-Routing Opening
• Assembly: Required
• Additional Side Panel Accessory: ProX XSA-16SX2 (Sold Separately)
• UPC: 019372408734

What's In The Box

• 1 x ProX XSA-2X2-16 Aluminum Stage Frame Assembly
• 1 x 24 x 24-Inch Translucent Acrylic Top Panel
• 2 x 16-Inch-High Translucent Acrylic Side Panels
• 1 x Security Clamp Set
• Assembly Hardware

Important: Each XSA-2X2-16 stage section includes one acrylic top panel and only two acrylic side panels. For a fully enclosed standalone stage section, two additional side panels are required and sold separately as the ProX XSA-16SX2 accessory kit. When purchasing fewer than four stage sections, additional side panels are recommended depending on the desired configuration. LED lighting fixtures, light strips, and lighting controllers are not included.
