ProX XT-BP12A

12in Top Plate for F34/F32/F31 Truss

$59.99 In Stock!

Accessories

Loading...

Truss Top Plate

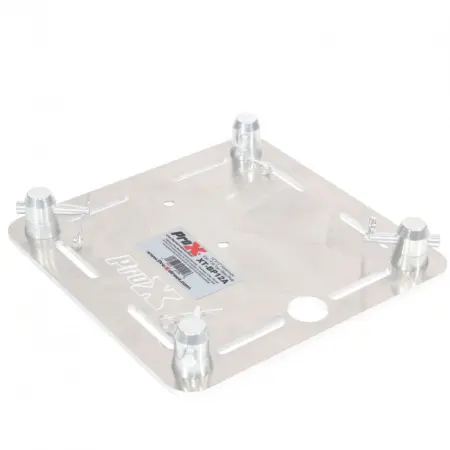

The ProX XT-BP12A is a 12-inch aluminum top plate designed for use with F34, F32, and F31 conical square truss systems. Built from durable 6mm EN-AWT6 6082 aluminum, this plate offers a secure and professional-grade mounting surface, making it ideal for lighting, speakers, and structure termination.

ProX XT-BP12A Competitive Differences

  • Compatible with multiple truss systems: F34, F32, and F31
  • Includes slotted holes and cable routing cutout

ProX XT-BP12A Description

The ProX XT-BP12A is engineered for strength, versatility, and compatibility. Whether you're capping off a truss column, adding a lighting fixture, or building a custom structure, this 12" x 12" top plate provides a stable and secure connection. It is manufactured using precision CNC technology and forged from EN-AWT6 6082 aluminum—a material known for its high strength and corrosion resistance. Designed with slotted mounting holes and a central cable-routing hole, the plate supports flexible configurations and clean cabling. Rounded edges help prevent cable damage and make handling safer during setup and teardown. The XT-BP12A is compatible with most major truss brands using conical connectors, and includes all necessary connector hardware. It can also be used with the optional XT-SPST speaker stud (sold separately) for speaker pole mounting applications.

Model Features

  • Fits F34, F32, and F31 conical square truss
  • 6mm thick EN-AWT6 6082 aluminum plate
  • CNC-cut slotted holes for flexible mounting
  • Large center cutout for cable routing
  • Includes truss connection hardware
  • Smooth, rounded edges for safety
  • Compatible with optional speaker stud (XT-SPST)

Model Specifications

  • Compatible Truss: F34, F32, F31 Conical Square Truss
  • Dimensions: 12 x 12 in (305 x 305 mm)
  • Plate Thickness: 6mm
  • Material: EN-AWT6 6082 Aluminum
  • Unit Weight: 4 lbs
  • Shipping Dimensions: 13 x 13 x 2 in
  • Shipping Weight: 5 lbs
  • UPC: 019372411246

ProX XT BP12A (ProX XTBP12A)

Brand ProX
Name ProX XT-BP12A | 12in Top Plate for F34/F32/F31 Truss | 6mm Aluminum with Slotted Holes
Primary Category Truss Accessories

Build Material EN-AWT6 6082 Aluminum
Depth 6mm mm
Dimensions 12 x 12 in (305 x 305 mm) mm
Included Accessories Truss connection hardware
Mounting Options Fits F34, F32, and F31 conical square truss with slotted holes and cable routing cutout
Transportability Lightweight and compact for easy handling
Weight 4 lbs lbs

Compatible Truss: F34, F32, F31 Conical Square Truss; Dimensions: 12 x 12 in (305 x 305 mm); Plate Thickness: 6mm; Material: EN-AWT6 6082 Aluminum; Unit Weight: 4 lbs; Shipping Dimensions: 13 x 13 x 2 in; Shipping Weight: 5 lbs; UPC: 019372411246

Right from your cart

  • $700+ Orders Qualify for 0% Interest or Up to 24 Months

  • Pay in 4 or Choose Your Financing Plan

  • Business customers only

    NET/30, then Flexible Simple Interest

Get Longer 0% Options or Up to 60 Months

Prefer better payment terms over VIP discounts? Use our partner website. Standard priced products with up to 24 months at 0% interest, or up to 60 months of equal payments with interest.

View this item on SquareCable.com (opens in a new tab)

Store card

  • Call 877-775-7635 to get started
  • No credit checks, no late fees, no minimum order
  • Pay when you can & we'll ship when it's paid off
  • FREE to use ($10 initial charge is applied to final payment)

(1/1) ProX XT-BP12A | 12in Top Plate for F34/F32/F31 Truss | 6mm Aluminum with Slotted Holes By Lisa W 72 pts
September 29, 2022

These plates fit my global truss totems. Also the slots are ideal to securing anything onto the plate for safety. It also has a round hole which I found ideal to run cables down from a moving head. Definitely would recommend.
