ProX XT BT1202BLK

Bolted Box Truss Segment

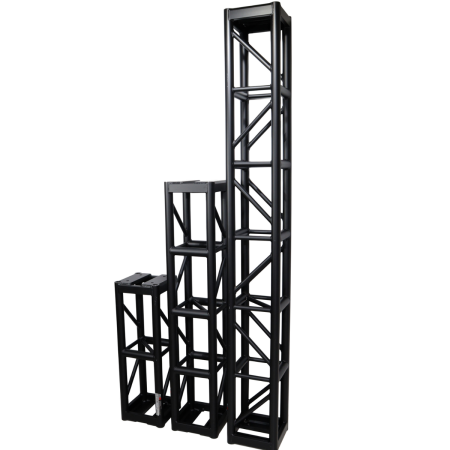

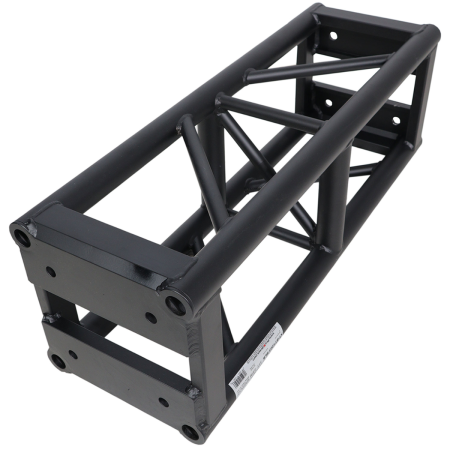

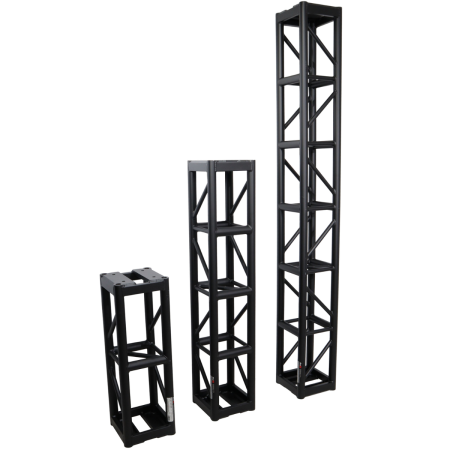

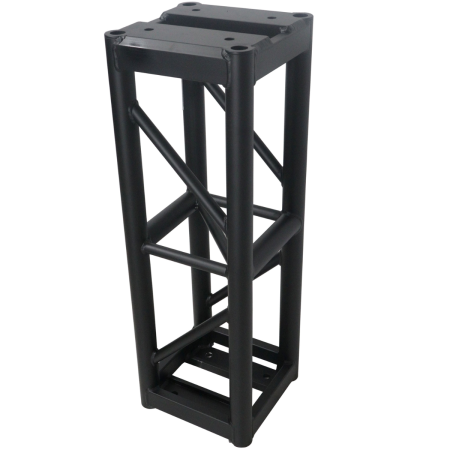

The ProX XT BT1202BLK is a 2-foot professional box truss segment designed for stage lighting, concerts, event structures, obstacle-course construction, and other properly engineered truss applications. Its 12 x 12-inch profile, 3mm-wall aluminum tubing, reinforced end plates, and bolted connection system provide a durable foundation for compatible truss assemblies.

ProX XT BT1202BLK Competitive Differences

• Reinforced end plates are welded on both sides for increased durability
• Integrated circular corner rings help protect the main chord ends from impact and dragging damage
• Industry-standard 6.75 x 6.75-inch bolt pattern supports compatibility with many 12-inch professional bolted box truss systems
• Constructed from 6082-T6 aluminum alloy by GSI SLV-certified welders
• Load tested and inspected during manufacturing and quality control
• Includes the bolts, nuts, flat washers, and lock washers required for one connection

ProX XT BT1202BLK Description

The ProX XT BT1202BLK is part of the BoltX professional truss series and is engineered for applications requiring a compact, heavy-duty 12-inch box truss segment. Its 24-inch length is useful for completing truss spans, creating short structural sections, or configuring custom stage and event-production systems.

The main 2-inch outer tubes and 1-inch diagonal tubes feature 3mm walls for added structural strength. The truss is manufactured from 6082-T6 aluminum alloy and welded to TÜV standards by GSI SLV-certified welders, supporting reliable fitment and consistent connections during assembly.

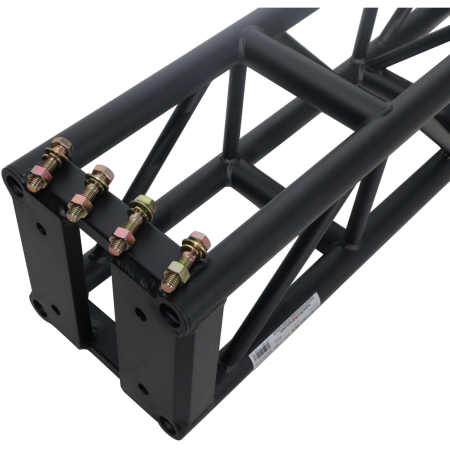

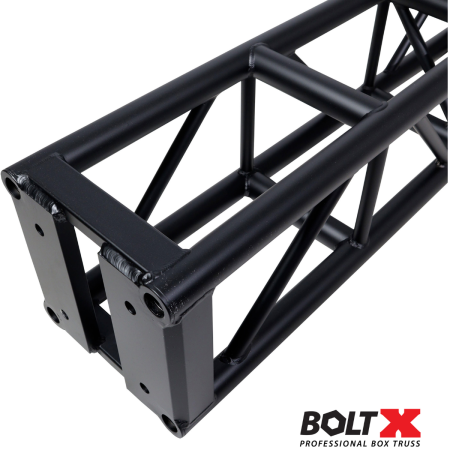

ProX uses reinforced end plates with circular rings positioned at each corner to help reduce damage to the ends of the main chords. This design is especially beneficial for mobile-production environments where truss sections may be repeatedly loaded, unloaded, dragged, or placed on hard surfaces.

The standard 6.75-inch bolt-center pattern and 5/8-inch mounting holes allow compatibility with many other manufacturers’ 12-inch bolted box truss products. This segment is intended for professional production companies, venues, installers, stage-lighting technicians, and users working with properly engineered truss configurations.

XT BT1202BLK Features

• 2-foot professional bolted box truss segment
• 12-inch-high by 12-inch-wide box truss profile
• Industry-standard 6.75 x 6.75-inch bolt-center pattern
• 5/8-inch connection holes
• 2-inch-diameter main tubes with 3mm walls
• 1-inch diagonal tubes with 3mm walls
• 6082-T6 aluminum alloy construction
• Black coated-aluminum finish
• Reinforced end plates welded on both sides
• Circular corner rings help protect main chord ends
• Welded to TÜV standards by GSI SLV-certified welders
• Load tested and inspected during manufacturing
• Compatible with many 12-inch professional bolted box truss systems

XT BT1202BLK Specifications

• Truss Type: Professional bolted box truss segment
• Segment Length: 2 ft
• Exterior Dimensions: 12 x 12 x 24 in
• Bolt-Center Pattern: 6.75 x 6.75 in
• Connection Hole Diameter: 5/8 in
• Main Tube Diameter: 2 in
• Main Tube Wall Thickness: 3mm (approximately 1/8 in)
• Diagonal Tube Diameter: 1 in
• Diagonal Tube Wall Thickness: 3mm (approximately 1/8 in)
• Material: 6082-T6 aluminum alloy
• Finish: Black coated aluminum
• Product Weight: 24 lb
• Shipping Dimensions: 13 x 13 x 25 in
• Shipping Weight: 27 lb

What's In The Box

• 1 x ProX XT BT1202BLK 2-foot box truss segment
• 4 x 5/8-11 x 2.5-inch attachment bolts
• 4 x Nuts
• 4 x Flat washers
• 4 x Lock washers

Installation and Safety Notes

• Engage a licensed engineering professional for complex loading configurations or installation conditions
• Confirm the total equipment load and approved truss capacity before assembly or use
• Install all bolts within a truss span facing the same direction
• For upright truss sections, position the bolts on top and the nuts on the bottom
• Use washers on both sides of every bolted connection
• Tighten connections from the nut side without overtightening the bolts
• Inspect bolts, nuts, connections, and rigging regularly and replace worn hardware as necessary
• Have a qualified person inspect all connections and rigging before raising the assembled truss

ProX XT-BT1202BLK (ProX XTBT1202BLK)
