ProX XT BT1203 BLK

Bolted Box Truss Segment

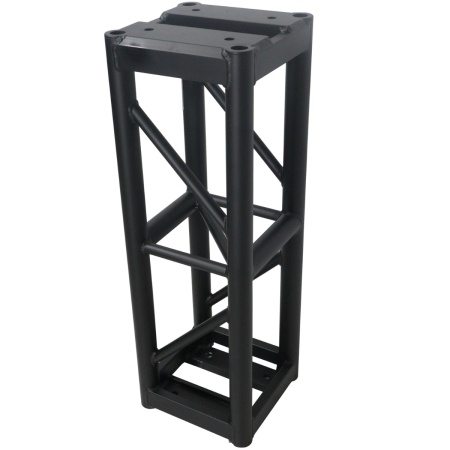

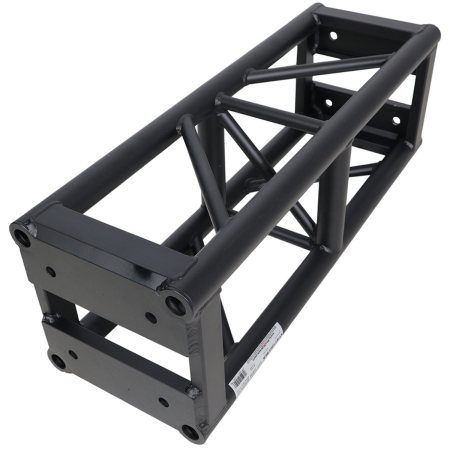

The ProX XT BT1203 BLK is a 3-foot-long, 12-inch square box truss segment designed for stage lighting, concerts, obstacle-course structures, exhibits, and other professional truss applications. Its bolted connection system and industry-standard dimensions provide reliable fitment while supporting compatibility with many 12-inch bolted box truss systems.

ProX XT BT1203 BLK Competitive Differences

• BoltX end plates are welded on both sides for a strong connection structure
• Integrated circular corner rings help protect the ends of the main chord tubes from impact and handling damage
• Heavy-duty main chord and diagonal tubing feature 3mm wall thicknesses
• Industry-standard 6.75 x 6.75-inch bolt pattern supports compatibility with many 12-inch bolted box truss systems
• Each truss segment is load tested and inspected during manufacturing and quality control

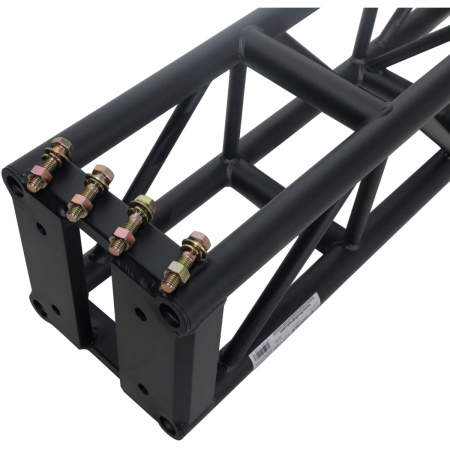

• Includes a complete set of four connection bolts, nuts, flat washers, and lock washers

ProX XT BT1203 BLK Description

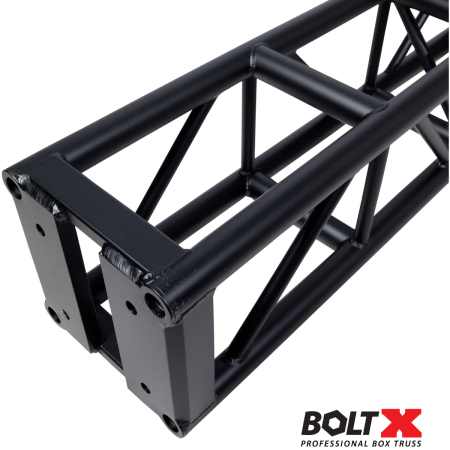

The ProX XT BT1203 BLK BoltX professional box truss combines 6082-T6 aluminum construction with reinforced end plates engineered for repeated setup, transport, and teardown. The end plates are welded on both sides, while circular rings at each corner help reduce damage to the main chord ends when the truss is moved, dragged, or placed on hard surfaces.

The truss uses 2-inch-diameter main chord tubing with a 3mm wall and 1-inch diagonal tubing with a 3mm wall. This substantial construction makes the segment suitable for stage lighting systems, concert productions, exhibit structures, and properly engineered obstacle-course installations.

A standard 6.75-inch bolt-center pattern with 5/8-inch connection holes allows the segment to connect with many other professional 12-inch bolted box truss products. Manufacturing and quality-control procedures are designed to maintain consistent connection fitment and help production crews complete installations efficiently.

The black-coated aluminum finish provides a low-visibility appearance for stages and entertainment environments. Welds are completed to TÜV standards using GSI SLV-certified welders, and ProX recommends consulting a licensed engineering professional for complex loading configurations or installation conditions.

XT BT1203 BLK Features

• 3-foot professional bolted box truss segment
• 12 x 12-inch square truss profile
• BoltX reinforced aluminum end-plate design
• End plates welded on both sides
• Circular corner rings help protect main chord tube ends
• Industry-standard 6.75 x 6.75-inch bolt-center pattern
• Compatible with many 12-inch professional bolted box truss systems
• Load tested and inspected during manufacturing and quality control
• 6082-T6 aluminum alloy construction
• Welded to TÜV standards by GSI SLV-certified welders
• Black-coated aluminum finish
• Suitable for stage lighting, concerts, exhibits, and engineered obstacle-course structures

XT BT1203 BLK Specifications

• Truss Type: Bolted box truss segment
• Truss Profile: 12 x 12 in (304.8 x 304.8 mm)
• Length: 36 in (914.4 mm)
• Material: 6082-T6 aluminum alloy
• Finish: Black-coated aluminum
• Main Chord Diameter: 2 in (50.8 mm)
• Main Chord Wall Thickness: 3 mm (1/8 in)
• Diagonal Tube Diameter: 1 in (25.4 mm)
• Diagonal Tube Wall Thickness: 3 mm (1/8 in)
• Bolt-Center Pattern: 6.75 x 6.75 in (171.5 x 171.5 mm)
• Connection Hole Diameter: 5/8 in
• Connection Bolt Size: 5/8-11 x 2.5 in NC
• Exterior Dimensions: 12 x 12 x 36 in (304.8 x 304.8 x 914.4 mm)
• Weight: 27 lb (12.2 kg)
• Shipping Dimensions: 13 x 13 x 37 in (330.2 x 330.2 x 939.8 mm)
• Shipping Weight: 33 lb (15 kg)

What's In The Box

• ProX XT BT1203 BLK 3-foot box truss segment
• Four 5/8-11 x 2.5-inch NC attachment bolts
• Four connection nuts
• Four flat washers
• Four lock washers

ProX XT-BT1203BLK (ProX XTBT1203BLK)
