ProX XT-CDF12

ProX XT-CDF12 | Folding Plate with Dual Truss Clamp For Moving Heads Stage Lighting
ProX XT-CDF12 Foldaway Double Clamp Mount is a unique way to mount your moving heads to trussing or single tubes, but also to speed up the setup of lighting by being able to fold them away and put the moving heads into a flight case without removing the clamps. This clamping plate is Ideal for moving heads, Professional Stage lighting, other and various types of Audio and DJ equipment

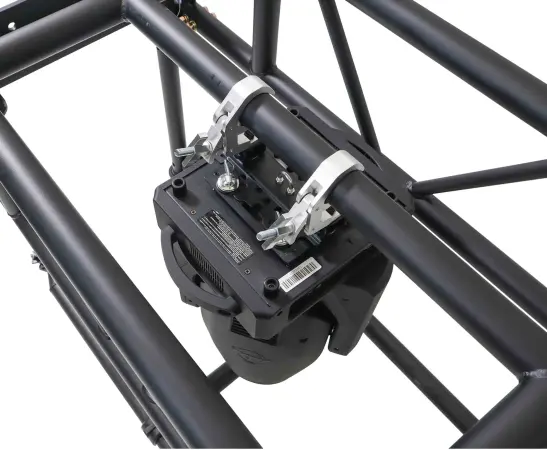

The XT-CDF12 has one fixed direction clamp and one rotatable clamp for easy and secure mounting and is both attached to the heavy-duty steel mounting plate. The plate is designed with multiple holes for mounting to just about any brand or type of light or other equipment.

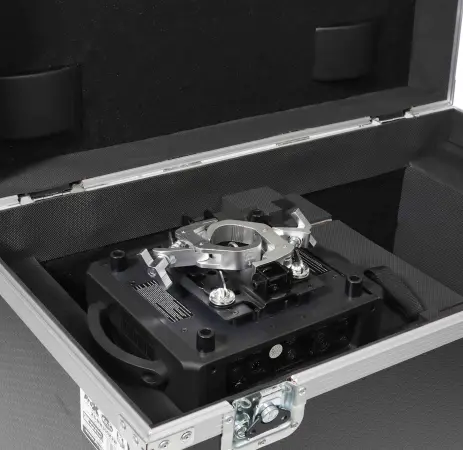

The Foldaway Double Clamp Mount fills a missing gap in the mounting, storage, and transport of moving-head lights and similarly mounted fixtures. Riggers, Lighting Designers, Production Companies, disc jockeys, and others use moving head fixtures. Traditionally, the fixtures are placed in cases but need the mounting clamps removed in order to close the tops of the road cases. The Foldaway Double Clamp Mount does not require removal from the light fixture to fit in standard moving head flight cases. This will speed up the teardown and setup of lighting.

The black powder-coated mounting plate is drilled for 115mm X 105-115mm, 155mm X 115mm, 90mm X 80mm, and more. The big wing nuts have both flat & lock washers and the clamps are designed to stay open using the captive coil spring. In the open and flat positions, they interlock on the mounting plate for compact transport. The entire assembly takes up approximately 1 1/4" (32mm) in the folded position. The strong mounting assembly will hold even the heaviest professional lights.


Features
For use with 2" - 50mm Truss Tubes or Pipe Heavy-Duty Aluminum Clamps Exclusive ProX Design ©2019 - Patent Applied For Black Powder-Coated Mounting Plate TÜV Certified Welding & Construction Manufactured to Exacting Specifications in our Own Factory! TÜV Certified Welding TÜV Rheinland® is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TÜV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

ProX Truss products utilize industry standard dimensions to be compatible to connect to, and work with, many other manufacturers F31/F32/F34 trussing products with conical connectors.


To Fit
Mounts to 2" Poles and F34, F32, F31, F33, F44b, and 12" Bolted Trussing.


Shipping Dimensions
4.00"L x 8.00"D x 2.00"H Shipping Weight: 2.00 lbs
