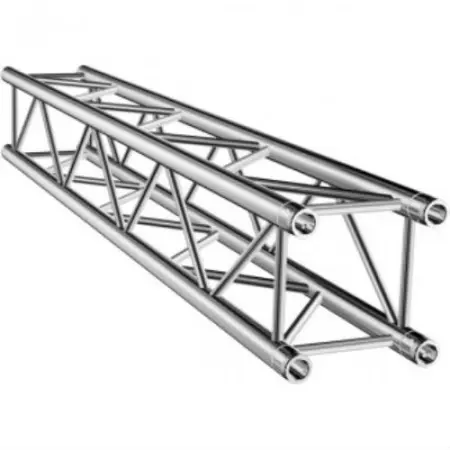

ProX XT-SQ410

4.10ft(1.25m) Square Truss Segment

ProX Truss has the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect formobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.

At the heart of the system is square truss that utilize a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.

Tolerance Free Standard Conical connector
Main tube wall thickness of .08in / 2mm
Constructed to the highest safety ratings by certified welders
XT-SQ SERIES DIMENSIONS
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: ~5.0 lbs/ft / ~7.0/m
Main Tube: 2in / 50mm
Braces: .75in / 20mm
Material: EN-AWT6 6082 Aluminum

Actual Height:  4.1 ft. (1.25 Meter) Square Truss Segment
Actual Weight: 22 lbs.
Outside: 290mm - 11 7/16"
Tubing: 2"
Bracing: 3/4"
Includes connecting hardware set.

AllProX Trussproducts are 100% compatible to connect along with many other manufacturers.

To Fit
Standard Square Truss Configurations.

Dimensions
12.00"Length (L) X 12.00"Width (W) X 49.20"Height (H)
Weight: 22.00 lbs

ProX XTSQ410 (ProX 4.10ft truss segment)
