ProX XT-SQ705

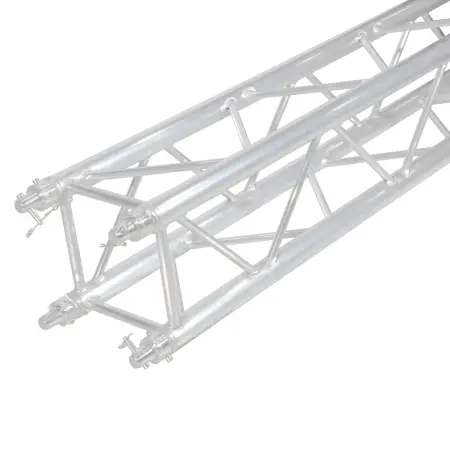

ProX XT-SQ705 7.05 Ft - 84.64 Inch - 2.15 M F34 Square Truss Segment 2 mm Wall

Description
The ProX XT-SQ705 Truss Segment is designed for high-frequency usage or installations, which demands higher loading.  This trussing is Ideal for rental, touring, and exhibition companies.  ProX is one of the most trusted truss manufacturers in the live entertainment industry and is engineered and manufactured to the highest standards of safety and performance. ProX Live Performance Gear® specializes in high-quality, general-purpose aluminum lighting and stage trussing in F31/F32/F34 and 12” bolted configurations designed for live stages, theaters, nightclubs, church installations, mobile applications, trade shows, and retail applications.

The ProX Conical Coupling System allows for genderless trusses, providing a more precise lineup of chords and fastening points, while the conical shape of the couplers helps maintain overall rigidity at the stress points and makes parts harder to damage. This system also makes assembly/disassembly quick and easy, all you need is a small brass or aluminum hammer.  The XT-SQ series easily mates with most other brands of trusses of the same size and connector type and is available in a variety of lengths to suit your designs.  Our outstanding quality control and manufacturing techniques assure excellent fitment at every connection to expedite your setups.  We manufacture with EN-AWT6 6082 Aluminum for safety and strength.  The 2mm wall thickness assures durability and strength and can be used for spans up to 52.5 Ft. (16 M).

ProX XT-SQ series F34 trussing is a rugged and durable trussing solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs, and other permanent installations. ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates, and much more to complete your ideas and make your design an impressive rigging project or a simple show booth.  Always consult an engineer for complex designs!



ProX XT-SQ SERIES DIMENSIONS:

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb/9,5kg per 3.28 ft / 1 meter
Main Tube: 2in / 50mm
Wall Thickness:  .08in / 2mm
Braces: .75in / 20mm
IMPORTANT:  Always know your load weight for your equipment: XT-SQ Truss Loading Chart


Features
Manufactured to Exacting Specifications in our Own Factory!
Actual Length:  9.84 ft. (3.00 Meter) Square Truss Segment
Actual Total Weight: 44 Lbs.
Includes One Connecting Hardware Set of Four
Material: EN-AWT6 6082 Aluminum
TÜV Certified Aluminum Welding
Always Consult an Engineer for Complex Designs!
ProX Live Performance Gear® One Year (365 days) Limited Warranty (Click for Details)
TÜV Certified Welding TÜV Rheinland® is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TÜV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

ProX Truss products utilize industry standard dimensions to be compatible to connect to and work with, many other manufacturers F31/F32/F34 trussing products with conical connectors.


To Fit
The XT-SQPL705 7.05 Ft F34 Professional Truss Ladder Segment | 3mm Wall is compatible in design with standard F34 Trussing but with a ladder brace on one side for safe climbing and with thicker tube walls for enhancing vertical load capacity in combination with standard main rig trussing.  Prox Truss is one of the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged and heavy-duty trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations. Also available in 2.5 meters and 3 meters.

Prox SQ705 (ProX XT-SQ705)
