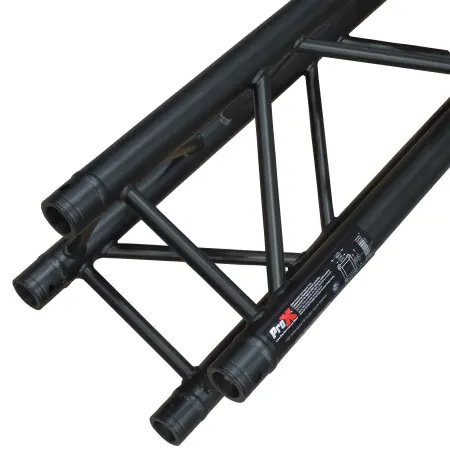

ProX XT-SQ820BLK | F34, 8.2ft Square Truss
$1,025.99
The ProX XT-SQ820BLK is an 8.20-foot (2.5m) F34 square aluminum truss segment designed for stage lighting, live events, touring productions, and permanent installations. Constructed from EN-AWT6 6082 aluminum with 2mm thick main tube walls, it combines durable construction with a professional black powder-coated finish. Its industry-standard F34 dimensions, heavy-duty connector sockets, and conical connection system provide reliable integration into compatible truss structures for professional staging applications.
The ProX XT-SQ820BLK provides a rugged structural solution for professional stage lighting, entertainment productions, nightclub installations, and event staging systems. This 8.20-foot F34 square truss segment is manufactured from EN-AWT6 6082 aluminum and features 2-inch (50mm) main tubes with 2mm wall thickness. Its 11.42-inch (290mm) square profile follows industry-standard F34 dimensions, allowing it to integrate into compatible modular truss configurations for a wide variety of production and installation requirements.
The black powder-coated finish offers both visual appeal and enhanced surface protection. Applied electrostatically and cured under heat, the coating forms a durable protective layer that helps minimize scratches, chipping, abrasion, corrosion, and fading during regular use. Its dark finish is particularly useful for theatrical productions, concerts, and permanent installations where lighting support structures need to blend into the surrounding environment.
Designed for efficient assembly, the XT-SQ820BLK incorporates a precision conical connector system with heavy-duty connector sockets. This connection design supports consistent alignment between compatible truss segments and helps simplify assembly and disassembly during event setup. The standard F34 format also allows use with compatible truss corners, base plates, and accessories for constructing modular structures of different shapes and sizes. Connecting hardware is included with the segment.
Manufactured with TUV-certified aluminum welding processes, the XT-SQ820BLK is built for consistent fitment and durability. With a segment weight of 36 lb (16.3 kg), it provides a practical combination of structural construction and transportability. Whether used for concert lighting, DJ stage designs, trade show displays, or fixed entertainment installations, this black aluminum square truss segment offers a versatile foundation for properly engineered truss systems.
| Brand | ProX |
| Name | ProX XT-SQ820BLK | F34, 8.2ft Square Truss |
| Primary Category | F34 Square Aluminum Truss Segment |
| Build Material | EN-AWT6 6082 Aluminum |
| Dimensions | 98.43 x 11.42 x 11.42 in inches |
| Included Accessories | Connecting Hardware Set |
| Mounting Options | Tolerance-Free Conical Connector System |
| Transportability | 36 lb segment weight suitable for touring and event production lb |
| Weight | 36 lb lb |
| Warranty Length | Manufactured under ProX quality control standards years |
