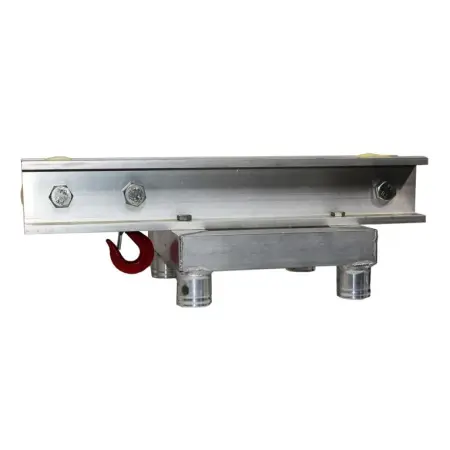

ProX XT-TOPCM

F34 Truss Top Section for 1-Ton Electric or Manual Chain Hoist

$309.99

ProX XT-TOPCM | F34 Truss Top Section for 1-Ton Electric or Manual Chain Hoist

Top Truss Section for Chain Hoist Systems

The ProX XT-TOPCM is a heavy-duty top truss section designed specifically for F34 Series 12" truss systems, offering reliable support for electric motors or manual chain hoists up to 1 ton. Ideal for staging, rigging, and production applications, this component combines professional-grade construction with lightweight portability for touring and permanent installations alike.

ProX XT-TOPCM Competitive Differences

  • Supports up to 1-ton electric motor or manual chain hoist
  • Designed for F34 12" truss systems
  • TUV Certified for safety and performance
  • Constructed from high-grade EN-AWT6 6082 aluminum
  • Includes padded fabric carrying/storage bag
  • Compatible with most F34 conical coupler systems
  • Lightweight yet rugged – perfect for mobile or permanent setups
  • Includes connecting hardware set

ProX XT-TOPCM Description

The ProX XT-TOPCM is engineered to work with F34 Series 12" truss setups and is compatible with electric motors or manual chain hoists rated up to 1 ton. Built from 10mm EN-AWT6 6082 aluminum, this top truss section provides excellent durability and load-bearing capability while maintaining a manageable weight for transport and installation.

This top section features industry-standard sizing, ensuring compatibility with other F34 conical coupler trussing systems across multiple brands. Whether for mobile DJs, live event productions, or permanent stage rigging setups, the XT-TOPCM offers a trusted solution backed by TUV certification — a mark of safety and quality assurance from a nationally recognized testing laboratory.

Each unit includes a padded carrying bag and connecting hardware, though couplers and pins are sold separately. With a compact form factor and strong construction, it’s a vital component for any high-capacity trussing system.

XT-TOPCM Features

  • Supports electric motor or manual chain hoist (up to 1 ton)
  • Made from 10mm EN-AWT6 6082 aluminum
  • TUV Certified manufacturing
  • Compatible with F34 conical coupler systems
  • Includes padded fabric carrying/storage bag
  • Includes connecting hardware set
  • Fits ProX F34 and other 12" truss systems

XT-TOPCM Specifications

  • Height: 11.42 in (290 mm)
  • Width: 11.42 in (290 mm)
  • Weight: 21 lb per 3.28 ft (9.5 kg per meter)
  • Main Tube Diameter: 2 in (50 mm)
  • Wall Thickness: 0.08 in (2 mm)
  • Brace Diameter: 0.75 in (20 mm)
  • Pulley Wiring Width: 0.25 in
  • Hook Size: 1.5 in
  • Exterior Dimensions: 11.50"H x 9.50"W x 24.00"L
  • Exterior Weight: 26.40 lbs
  • Shipping Dimensions: 12.00"H x 10.00"W x 25.00"L
  • Shipping Weight: 28.00 lbs
  • UPC: 019372406341
