ProX XT-USHACKLE075 | 3/4in Galvanized Screw Pin S...
$24.99

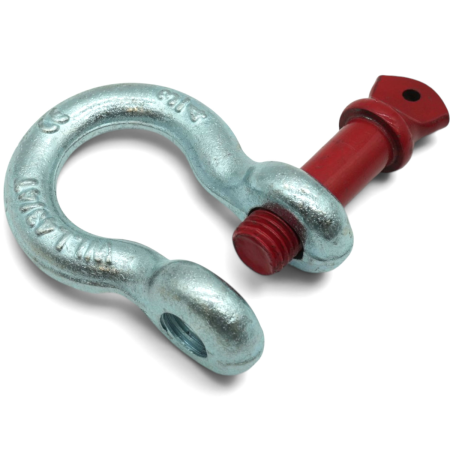

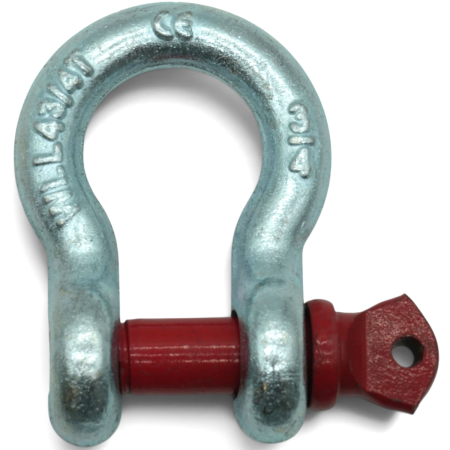

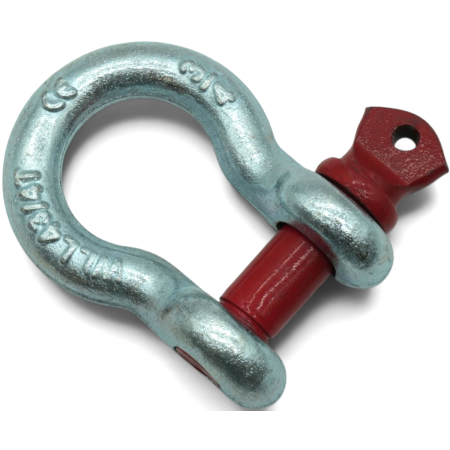

The ProX XT USHACKLE075 is a heavy-duty galvanized steel anchor shackle designed for professional stage, truss, and lifting applications. Its 3-ton working load limit, 6:1 safety factor, and removable screw pin provide a strong and practical connection for truss hardware, lifting slings, roofing systems, and suspended video equipment.
The ProX XT USHACKLE075 is constructed from galvanized steel to withstand repeated use in touring, staging, and installed production environments. The protective galvanized finish helps resist corrosion, while the heavy-duty body provides the structural integrity required for rated rigging applications.

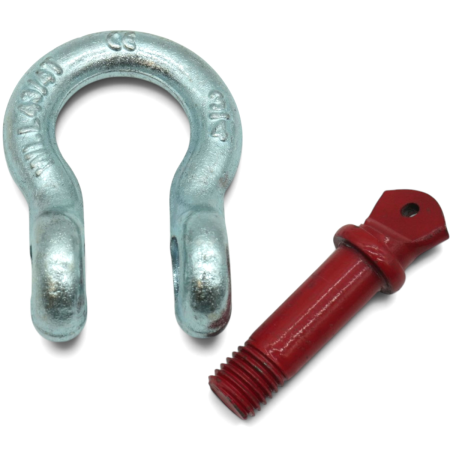

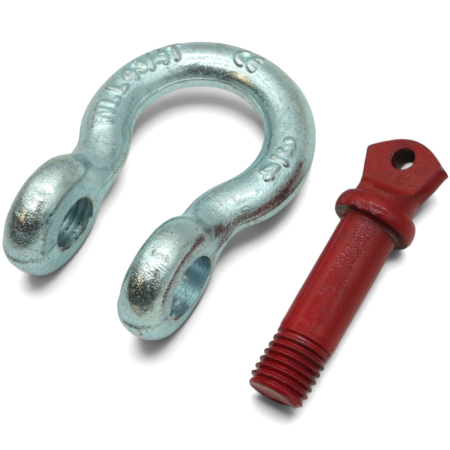

The 3/4-inch shackle body is equipped with a 5/8-inch removable screw pin. This configuration creates a secure connection while allowing production crews to install or remove the shackle without a separate fastening tool. Once properly tightened, the screw pin provides a dependable connection point for compatible rigging hardware.
With a 3.00-ton working load limit and a 6:1 safety factor, this anchor shackle is suited for professional trussing systems, stage roofing structures, suspended video walls, and lifting sling connections. When used with an appropriate sling, the rounded anchor shape can also help reduce concentrated wear on sling eyes compared with direct attachment to some hook designs.
This shackle is intended for qualified riggers, production companies, touring crews, venues, and installation professionals. All rigging components must be inspected before use and operated within their marked working load limits by properly trained personnel.
| Brand | ProX |
| Name | ProX XT-USHACKLE075 | 3/4in Galvanized Screw Pin Shackle | 3 Ton WLL for Stage Rigging |
| Primary Category | Galvanized screw pin anchor shackle |
| Build Material | Galvanized steel |
| Dimensions | Inside Height: 2.38 in, Inside Width: 1.69 in, Mouth Width: 1.06 in |
| Included Accessories | 5/8-inch screw pin |
| Mounting Options | 3/4-inch shackle size with 5/8-inch removable screw pin |
| Weight | 0.66 lb lb |
| Power Consumption | 3.00 tons tons |
| Warranty Length | 6:1 years |
