Heavy-duty line array lifting tower for touring and event production
The

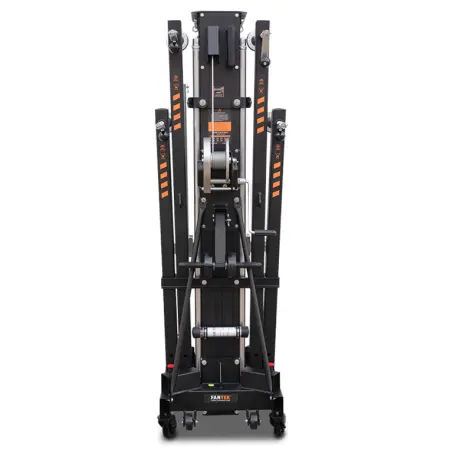

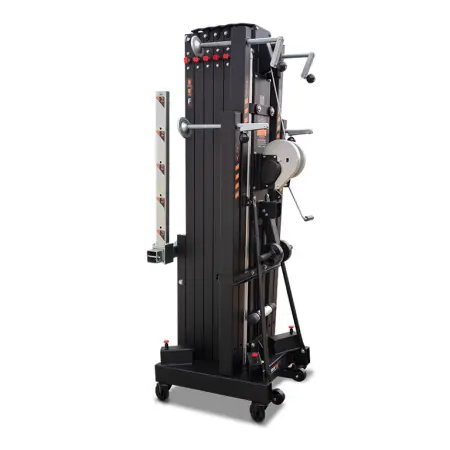

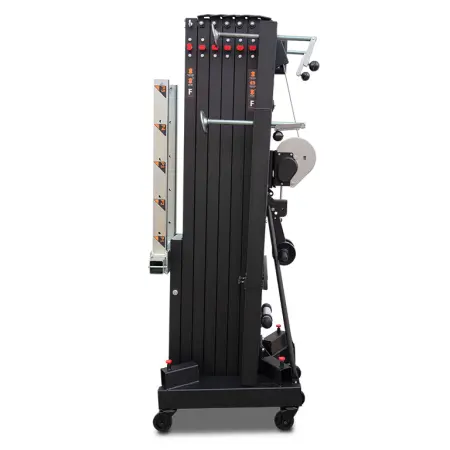

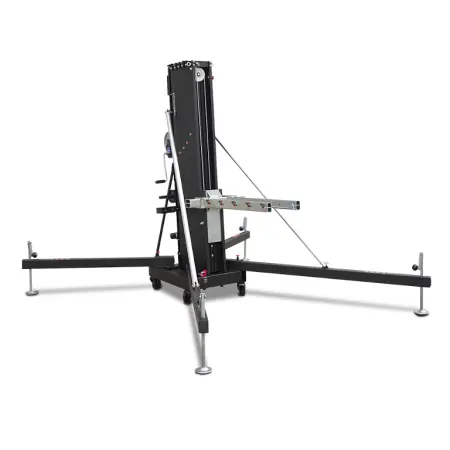

ProX XTF-FT8045, manufactured by FANTEK® in Valencia, Spain, is a compact, front-loading lifting tower engineered for safely and efficiently flying line array systems, trusses, and LED screens. With a maximum height of 26.24 ft and a load capacity of up to 992 lbs, this tower is ideal for professional staging, concerts, rentals, and production use. Its robust build, patented safety systems, and compact folding design make it a reliable choice for demanding environments.
ProX XTF-FT8045 Competitive Differences
- Front-loading lift system raises the load from the ground without strain
- Engineered and manufactured in Spain by FANTEK® for premium European quality
- 992 lb (450 kg) max load capacity with 26.24 ft (8 m) max height
- Dynamic Overlap® system distributes load force for greater stability
- DYNSYS® safety system limits torque and protects tower integrity
- WIREDRIVE® pulley reduces rope angle, increasing winch life
- Compact 6.56 ft (2 m) folded height for efficient storage and transport
- CE and DGUV V17/18 certified for compliance with EU safety standards
ProX XTF-FT8045 Description
The
ProX XTF-FT8045 is a premium lifting tower designed to elevate line array systems and similar loads with minimal effort and maximum safety. Its front-loading configuration means that equipment can be raised directly from the floor, eliminating manual lifting stress and ensuring operational safety.
Constructed with patented Dynamic Overlap® extruded aluminum trussing and a reinforced steel base with adjustable outriggers, this lift tower guarantees structural strength and long-term reliability. Its compact design folds down to just 6.56 ft, making it easy to transport and store, while castors allow for smooth mobility.
Safety is enhanced by integrated features like the Pin Locking System, which transfers load off the winch cable, and the DYNSYS® torque management system, which halts operation if safety thresholds are exceeded. The WIREDRIVE® pulley system minimizes wire tension angles for longer cable and winch life. Whether for touring, installation, or mobile production setups, the XTF-FT8045 delivers trusted performance in the most demanding environments.
XTF-FT8045 Features
- Designed for flying line array systems, LED screens, and trussing
- Front-loading lift system allows effortless ground-up setup
- Made in Valencia, Spain by FANTEK®
- Dynamic Overlap® truss system improves load distribution
- DYNSYS® torque safety limiter prevents winch overloading
- WIREDRIVE® pulley ensures smoother, safer lifting
- Telescopic masts with Pin Locking System for secure stops
- Reinforced steel base with screw-jack outriggers for leveling
- Bubble level integrated for precise setup
- Certified to CE and DGUV V17/18 safety standards

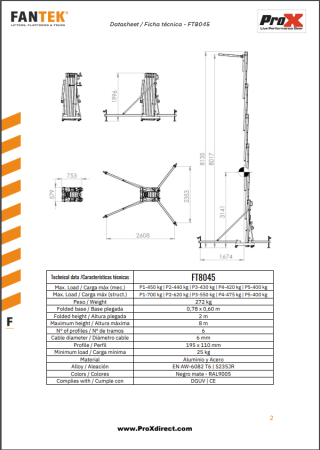

XTF-FT8045 Specifications
- Maximum Load Capacity: 992 lbs (450 kg)
- Maximum Height: 26.24 ft (8 m)
- Folded Height: 6.56 ft (2 m)
- Tower Weight: 600 lbs (272 kg)
- Winch Capacity: 900 kg (1984.16 lbs)
- Steel Fork Length: 23.62 in (600 mm)
- Truss Material: Extruded Aluminum EN-AW 6082 T6
- Base Material: Reinforced Steel with Adjustable Outriggers
- Exterior Dimensions (H x W x L): 72 x 31 x 24 in
- Certifications: CE, DGUV V17/18
- Suggested Shipping Method: LTL
- UPC: 804589615477
What's In The Box
- ProX XTF-FT8045 Front Loading Lifting Tower
- Integrated Line Array Adapter
- Pre-installed Castor Wheels
- User Manual
