ProX XTH-MLT3KIT8FTFD

Pre-Rig Truss and Folding Dolly Kit

ProX XTH-MLT3KIT8FTFD combines an 8-foot HOF MLT THREE pre-rig truss with a purpose-built folding transport dolly for professional touring, rental, lighting, and LED video applications. The system is designed to let crews install equipment in the truss, transport the assembly efficiently, and reduce repetitive setup work during load-in and load-out.

ProX XTH-MLT3KIT8FTFD Competitive Differences

• Open-bottom MLT THREE truss provides clear access for installing moving lights, LED fixtures, video modules, and hanging frames inside the truss.
• Rotatable steel fork connectors support straight, curved, and circular configurations, with locking capability that can preserve a selected setup angle during transport.
• Pre-tension or camber adjustment can help compensate for loaded truss deflection in applications such as LED video walls.
• Purpose-built folding dolly features telescopic legs, heavy-duty casters, and an open-bottom design for transporting and servicing pre-rigged assemblies.

ProX XTH-MLT3KIT8FTFD Description

The ProX XTH-MLT3KIT8FTFD is built around the HOF MLT THREE pre-rig truss system. The 8-foot truss uses EN AW 6082 T6 aluminum construction with a 48.3 x 4.5 mm main tube and 30 x 3 mm bracing. HOF's Heavy Duty coating is designed for the repeated handling, transport, and deployment associated with touring and rental production environments.

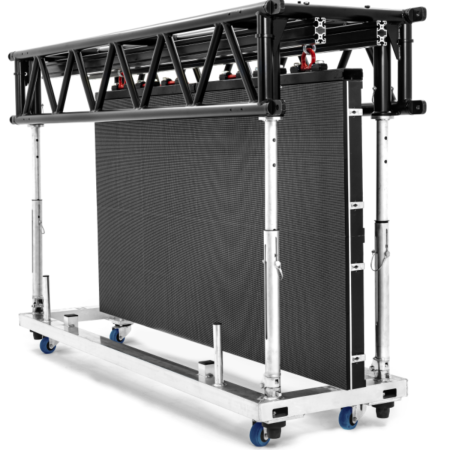

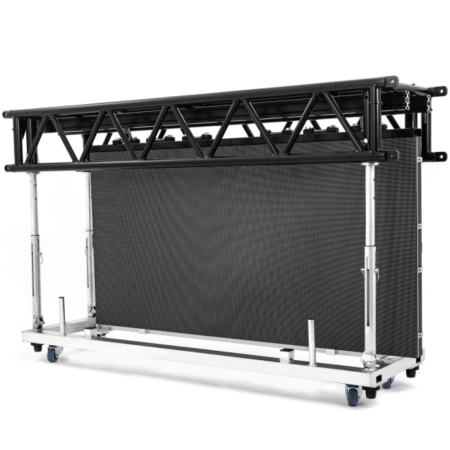

The MLT THREE is open at the bottom rather than using a closed lower head frame, giving technicians easier access when installing moving lights or video modules. Complete video modules, including hanging frames, can remain installed in the truss during transport when properly secured, making the system especially useful for LED video wall production and other applications where reducing equipment handling can save setup time.

Rotatable steel fork connectors give production teams flexibility when creating straight runs, curved structures, and circular configurations. The truss connectors extend up to 60 mm and are individually replaceable. The system can also be configured with pre-tension or camber to help offset deflection caused by the weight of the truss and installed equipment.

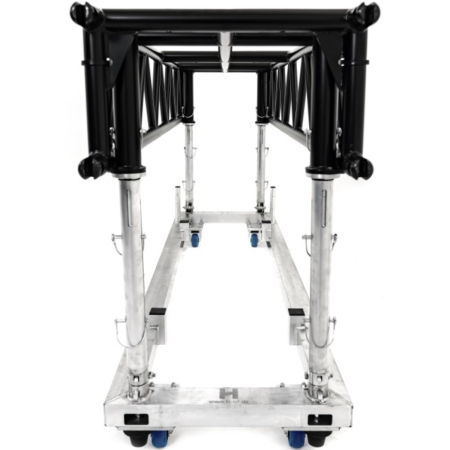

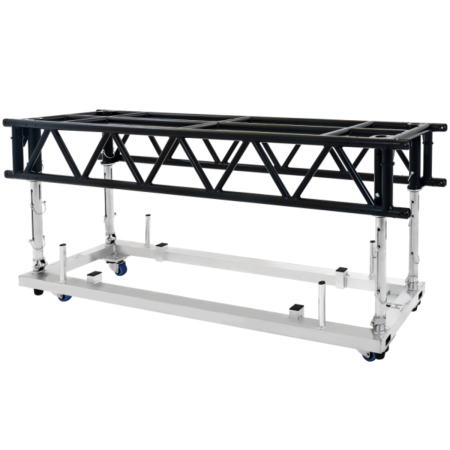

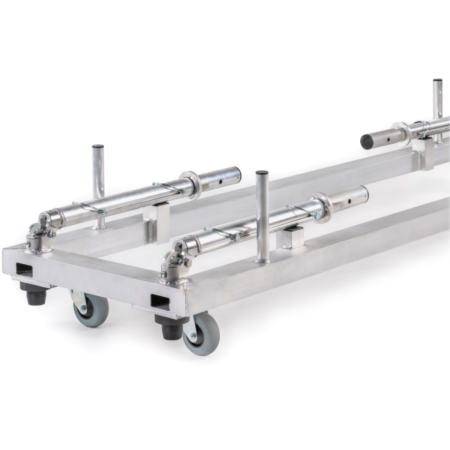

The included MLT THREE folding dolly is engineered specifically for the 8-foot truss. Telescopic adjustable legs provide additional clearance for installed video modules and hanging frames, while the open-bottom layout allows technicians to access equipment while the truss remains on the cart. The dolly folds for storage, can be stacked up to 10 units without truss, and uses heavy-duty casters for movement around production facilities, loading areas, and venues.

XTH-MLT3KIT8FTFD Features

• Complete 8-foot HOF MLT THREE pre-rig truss and folding dolly system
• EN AW 6082 T6 aluminum truss construction
• Open-bottom truss design for easier lighting and video module installation
• Suitable for pre-rigged lighting and LED video wall applications
• Rotatable steel fork connectors for straight, curved, and circular configurations
• Truss fork connectors extend up to 60 mm
• Field-replaceable fork connectors
• Supports pre-tension or camber adjustment to help compensate for loaded deflection
• HOF Heavy Duty coating in RAL 9005 gloss black
• Purpose-built folding dolly for the MLT THREE 8-foot truss
• Telescopic adjustable dolly legs accommodate installed video modules and hanging frames
• Open-bottom dolly provides access to installed equipment at ground level
• Rotatable steel dolly fork connectors extend up to 70 mm
• Heavy-duty casters for transport
• Folding dolly design for compact storage
• Dollies stack up to 10 units without truss
• Hinged adjustable legs support single-person truss-to-dolly connection

XTH-MLT3KIT8FTFD Specifications

• Truss Length: 8 ft (2438 mm)
• Truss Material: EN AW 6082 T6 aluminum
• Main Tube: 48.3 x 4.5 mm (1.90 x 0.18 in)
• Bracing: 30 x 3 mm (1.18 x 0.12 in)
• Truss Fork Extension: Up to 60 mm
• Dolly Fork Extension: Up to 70 mm
• Truss Finish: HOF Heavy Duty coating, RAL 9005 gloss black
• Truss Weight: Approximately 107.8 lb (48.9 kg)
• Dolly Weight: Approximately 60 lb (27.2 kg)
• Combined Component Weight: Approximately 167.8 lb (76.1 kg)
• Suggested Shipping Method: LTL
• UPC: 798239012351

What's In The Box

• (1) XTH-MLT3US8FT HOF MLT THREE 8-Foot Pre-Rig Truss
• (1) XTH-MLTPFDUS8FT Folding Dolly for HOF MLT THREE Pre-Rig Truss

ProX XTH-MLT3KIT8FTFD (ProX XTHMLT3KIT8FTFD)
