ProX XTH-MLT3US10FT | 10ft Open-Bottom Pre-Rig Tru...
$3,109.99

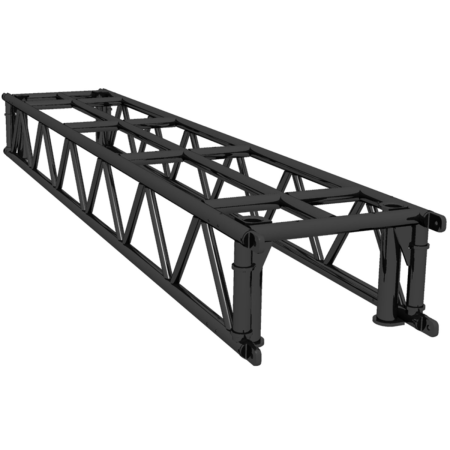

The ProX XTH-MLT3US10FT MLT THREE is a 10-foot open-bottom pre-rig truss designed for touring productions, LED video systems, rental companies, concert stages, and professional event installations. Its open construction provides direct access for mounting moving lights, LED fixtures, and video modules inside the truss, helping crews prepare equipment in advance and reduce repetitive rigging during load-in and load-out.
The ProX XTH-MLT3US10FT is part of the HOF MLT THREE pre-rig truss system and is built for production environments where lighting and video equipment must be installed, transported, and redeployed efficiently. At 10 feet long, the section can cover wider spans with fewer connection points than shorter truss sections, making it well suited for large stages, touring systems, and long LED video wall runs.
The truss is manufactured from EN AW 6082 T6 aluminum with 48.3 x 4.5 mm main tubes and 30 x 3 mm bracing. HOF Heavy Duty coating in RAL 9005 gloss black provides a durable exterior finish intended for repeated handling in touring and rental environments.

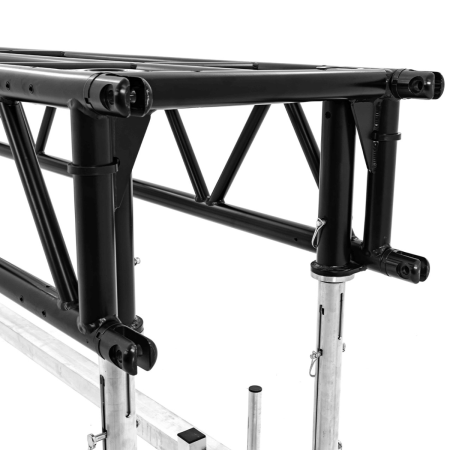

Included hardened-steel male and female fork connectors rotate to support straight runs as well as horizontal and vertical curved configurations. The forks extend up to 60 mm and can be individually replaced when necessary. The fork-locking design also allows crews to establish specific angles and pre-tension or camber settings before deployment to help manage deflection in loaded configurations.

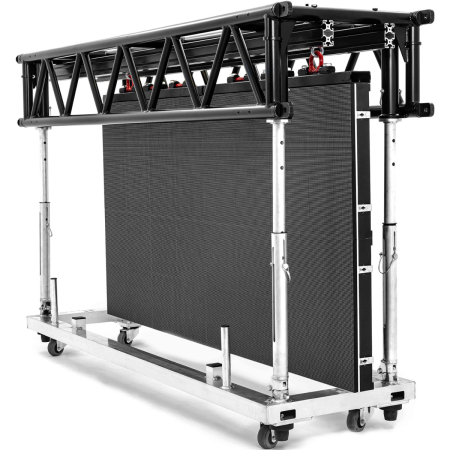

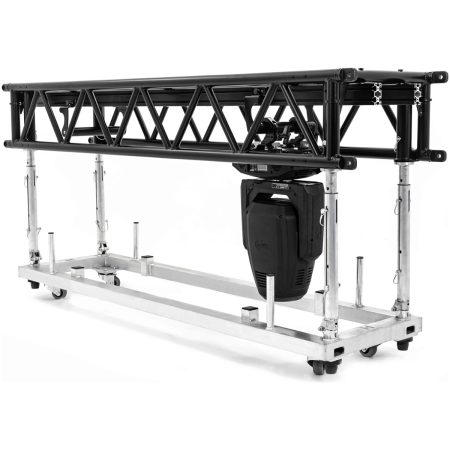

The open-bottom structure is especially useful for pre-rigged lighting and LED video applications because fixtures and complete video modules can be positioned inside the truss without a closed lower frame obstructing access. A compatible folding dolly with telescopic legs is available separately for transporting pre-rigged assemblies, and an optional double-rail system allows fixtures to be suspended at two different levels inside the truss. This listing includes the 10-foot truss section and male and female steel fork connectors only.
| Brand | ProX |
| Name | ProX XTH MLT3US10FT | 10ft Open-Bottom Pre-Rig Truss | Rotatable Steel Fork Connectors |
| Primary Category | Pre-Rig Truss |
| Build Material | EN AW 6082 T6 aluminum |
| Dimensions | 120 x 22 x 12 in (3048 x 559 x 305 mm) mm |
| Included Accessories | Male and Female Rotatable Steel Fork Connectors |
| Mounting Options | Rotatable hardened-steel male and female fork connectors extend up to 60 mm for straight, curved, angled, and circular truss configurations mm |

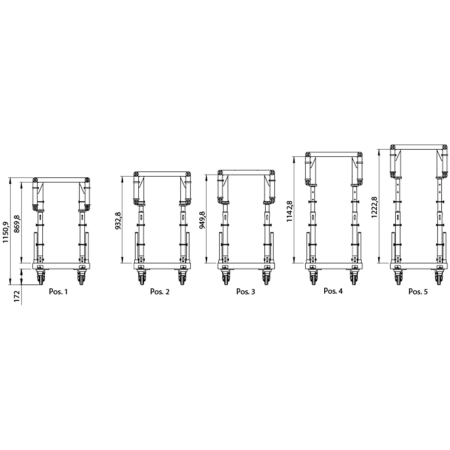

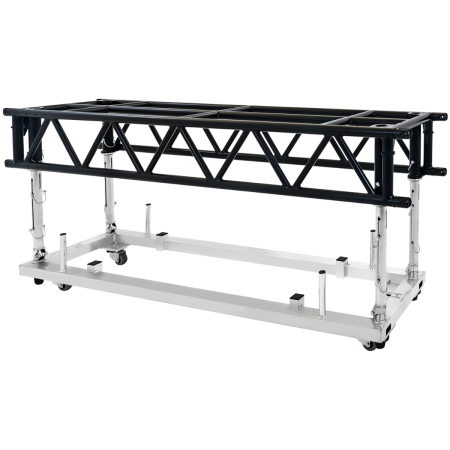

| Transportability | Compatible folding transport dolly with telescopic legs available separately |
| Weight | Approximately 135 lb (61.2 kg) kg |
