ProX XTH-MLTPFDUS8FT

Pre-Rig Truss Folding Dolly

The ProX XTH-MLTPFDUS8FT is a purpose-built folding dolly for 8-foot HOF MLT THREE pre-rig truss sections. Designed for touring, rental, corporate event, and live production environments, it combines telescopic adjustable legs, heavy-duty casters, and compact folding construction to make loaded truss transport and storage more efficient.

ProX XTH-MLTPFDUS8FT Competitive Differences

• Purpose-built specifically for 8-foot HOF MLT THREE pre-rig truss sections rather than functioning as a generic transport cart.

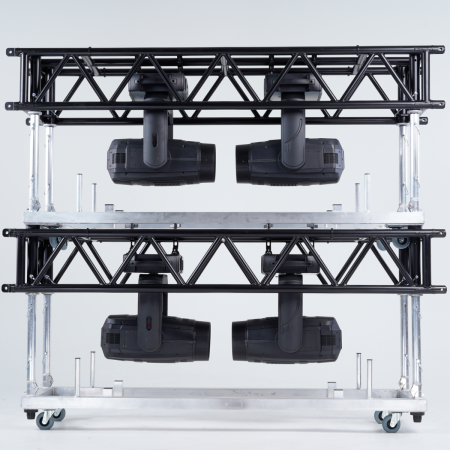

• Telescopic adjustable legs provide clearance for complete video modules and hanging frames while the truss is transported on the dolly.
• Open-bottom construction allows technicians to access and install moving lights or video modules while the truss remains on the dolly.

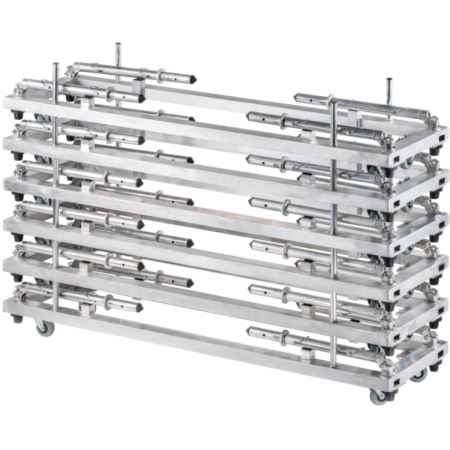

• Folding, stackable design allows up to 10 empty dollies to be stacked for more efficient truck and warehouse storage.

ProX XTH-MLTPFDUS8FT Description

The ProX XTH-MLTPFDUS8FT is engineered to work directly with the HOF MLT THREE 8-foot pre-rig truss system. Its dimensions and operating features are designed around the MLT THREE platform, helping production crews move, prepare, and store truss sections efficiently between events.

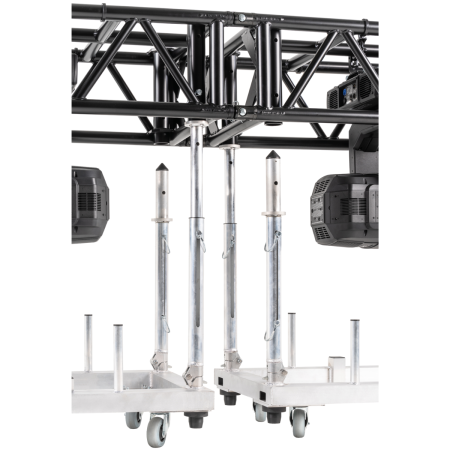

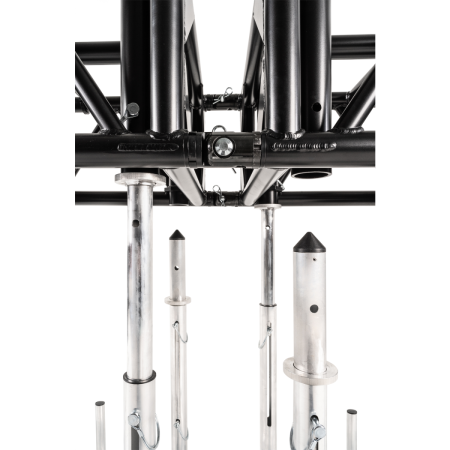

The dolly is constructed from EN AW 6082 T6 aluminum for a strong structure without unnecessary weight. Telescopic adjustable legs can be extended by removing the upper locking pin, providing additional clearance for installed video modules and hanging frames. Once positioned, the locking pin secures the leg configuration for transport.

An open-bottom layout provides access to the underside of the truss while it remains on the cart, allowing technicians to work with moving lights, video modules, and other installed equipment at floor level. Hinged adjustable legs also allow a single crew member to connect the truss to the dolly, helping reduce setup and teardown labor.

For transportation and storage, heavy-duty casters provide mobility across venue floors, backstage areas, and loading docks. The dolly folds for compact storage and can be stacked up to 10 units without truss. Replaceable steel rotatable fork connectors extend up to 70 mm for use with horizontal or vertical curved configurations. This listing includes the dolly only; the compatible pre-rig truss is sold separately.

XTH-MLTPFDUS8FT Features

• Designed specifically for 8-foot HOF MLT THREE pre-rig truss sections
• EN AW 6082 T6 aluminum construction
• Untreated aluminum surface
• Open-bottom design for access to installed lighting and video equipment

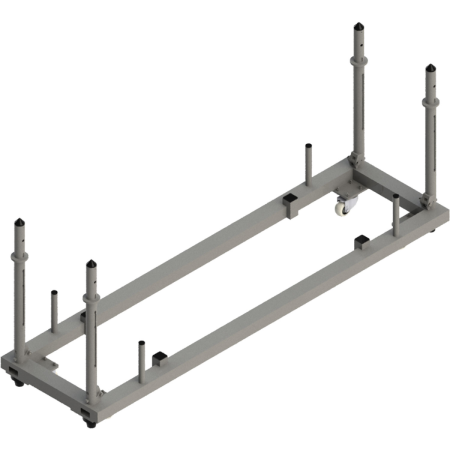

• Telescopic adjustable legs
• Upper locking pins secure extended leg positions
• Accommodates complete video modules including hanging frames
• Hinged adjustable legs support single-person truss connection
• Heavy-duty casters for production and venue transport

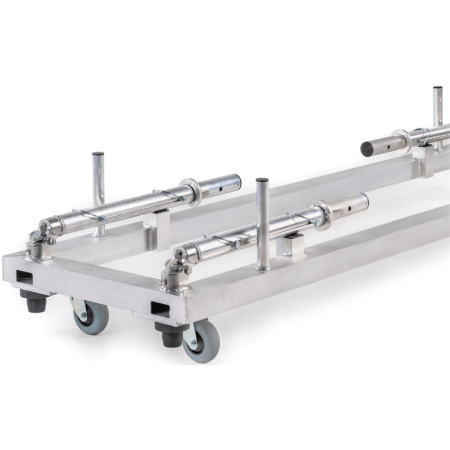

• Steel rotatable fork connectors
• Fork connectors extend up to 70 mm
• Replaceable fork connectors
• Supports horizontal and vertical curved configurations
• Folds for compact transport and storage

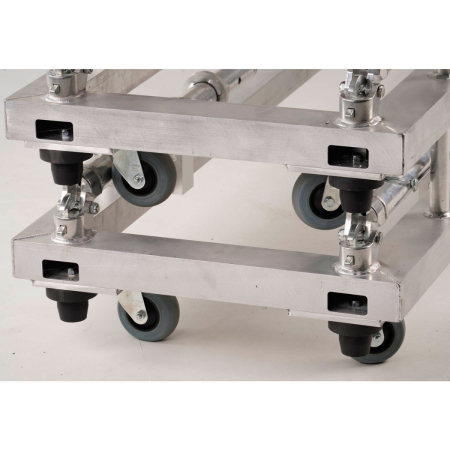

• Stacks up to 10 units without truss
• Compatible with the HOF MLT THREE 8 pre-rig truss system
• Pre-rig truss sold separately

XTH-MLTPFDUS8FT Specifications

• Material: EN AW 6082 T6 aluminum
• Surface: Untreated aluminum
• Compatible Truss: HOF MLT THREE 8-foot pre-rig truss
• Leg Type: Telescopic adjustable
• Connector Type: Rotatable steel fork connectors
• Fork Extension: Up to 70 mm (2.76 in)
• Stacking Capacity: Up to 10 dollies without truss
• Weight: 60 lb (27.2 kg)
• Suggested Shipping Method: LTL

What's In The Box

• (1) HOF MLT THREE 8-Foot Pre-Rig Truss Folding Dolly

ProX XTH-MLTPFDUS8FT (ProX XTHMLTPFDUS8FT)
