ProX XTP-GSBPACK3 PRO

Truss Tower Stage Lift System Package

$3,416.00 Available
$0 Tax $85 Back or Join VIP for upfront discounts.

ProX XTP-GSBPACK3 PRO | Truss Tower Stage Lift System Package

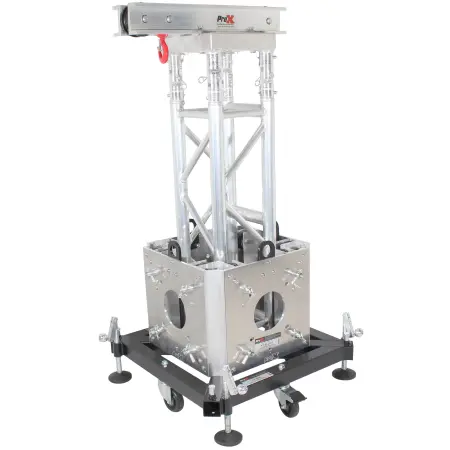

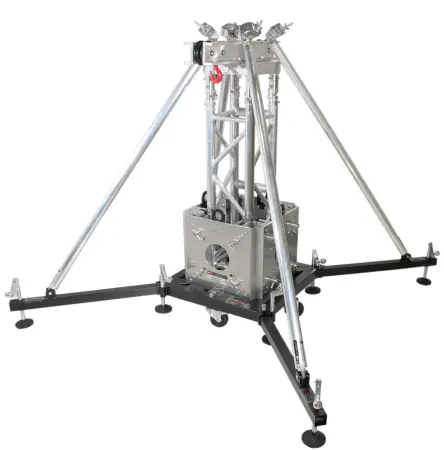

The ProX XTP-GSBPACK3 PRO is a comprehensive truss tower stage lift system package designed for mid to heavy-grade stage installations. This full package includes a four-legged outrigger truss base, 4-way square truss junction box sleeve block, and a 3' ladder truss segment. Everything you need for one climbable leg in building and flying a large-scale truss is included, except the lift hoist.

Features

  • ProX Trussing provides high strength with exceptional quality control and excellent value.
  • Manufactured to exacting specifications in our own factory
  • TÃœV Certified Welding
  • Compatible with most conical coupled trussing
  • Includes tapered shear pins with clips

XT-SQPL Series Dimensions

  • Height: 11.42in / 290mm
  • Width: 11.42in / 290mm
  • Weight: 21lb/9.5kg per 3.28 ft/1 meter
  • Main Tube: 2in / 50mm
  • Premium Tubing - Wall Thickness: 1/8in / 3mm
  • Braces: .75in / 20mm
  • Ladder Steps: 2in / 50mm
  • Ladder Step Spacing: 9.84in / 250mm
  • Material: EN-AWT6 6082 Aluminum
  • TÃœV Certified Aluminium Welding

Package Contents

  • XT-GSB MK2 Rigger Base, with Extendable Feet
  • XT-SQPL328 3.28ft Long LADDER Truss segment
  • XT-GSOUT3 3' Outrigger Brace Tubes (4) with clamps
  • XT-BLOCK Sleeve Block 4-Way Junction box
  • XT-TOPCM Truss Top with I-Beam mount with chain Pulley wheels
  • XT-HINGE 4 Hinge block set
  • Lift Hoist NOT included

Exterior Dimensions & Weight

  • XT-SQPL328 (1): 11.50"H x 11.50"W x 39.36"L - Weight: 23.00 lbs
  • XT-GSOUTS3 (4): 64.00"H x 2.00"W x 37.50"L - Weight: 29.00 lbs
  • XT-BLOCK-MK2 (1): 18.50"H x 22.50"W x 22.50"L - Weight: 77.30 lbs
  • XT-TOPCM (1): 11.50"H x 9.50"W x 24.00"L - Weight: 26.40 lbs

Shipping Dimensions & Weight

  • Box 1 of 6: XT-SQPL328: 13.00"H x 13.00"W x 40.00"L - Shipping Weight: 25.00 lbs
  • Box 2 of 6: XT-GSOUTS3 (4 boxes): 6.00"H x 8.00"W x 64.00"L - Shipping Weight: 34.00 lbs
  • Box 3 of 6: XT-GSB MK3: 9.00"H x 29.00"W x 29.00"L - Shipping Weight: 70.00 lbs
  • Box 4 of 6: XT-HINGE (4 boxes): 2.00"H x 5.00"W x 5.00"L - Shipping Weight: 2.50 lbs
  • Box 5 of 6: XT-BLOCK-MK2: 20.00"H x 24.00"W x 24.00"L - Shipping Weight: 80.00 lbs
  • Box 6 of 6: XT-TOPCM: 12.00"H x 10.00"W x 25.00"L - Shipping Weight: 28.00 lbs

Suggested Shipping Method: LTL

UPC: 019372413622

Pro X XTP-GSBPACK3PRO (ProX XTP-GSBPACK3 PRO Truss Package)

Brand ProX
Name ProX XTP-GSBPACK3 PRO | Truss Tower Stage Lift System Package
Primary Category Truss Tower Stage Lift System
SKU XTP-GSBPACK3 PRO

Build Material EN-AWT6 6082 Aluminum
Depth 39.36in in
Height 11.50in in
Included Accessories Four-legged outrigger truss base, 4-way square truss junction box sleeve block, 3' ladder truss segment, XT-GSB MK2 Rigger Base with extendable feet, XT-SQPL328 ladder truss segment, XT-GSOUT3 outriggers with clamps, XT-BLOCK sleeve block, XT-TOPCM truss top with I-beam mount and chain pulley wheels, XT-HINGE hinge block set
Mounting Options Includes tapered shear pins with clips, compatible with most conical coupled trussing
Weight 21lb/9.5kg kg
Width 11.50in in

Warranty Length Not specified years

This package provides a high-quality, TÃœV certified, and comprehensive truss tower stage lift system ideal for mid to heavy-grade stage installations, ensuring strength, compatibility, and ease of assembly.

The system includes all necessary truss components for one climbable leg of a large-scale truss, allowing secure building and flying of stage structures, except the lift hoist which must be sourced separately.

Manufactured with TÃœV certified aluminum welding and designed for compatibility with most conical coupled trussing, this package includes specialized components like tapered shear pins with clips and a 4-way square truss junction box sleeve block.

ProX Trussing offers high strength with exceptional quality control and excellent value. Manufactured to exacting specifications with TÃœV Certified Welding. Compatible with most conical coupled trussing and includes tapered shear pins with clips.

XT-SQPL328 segment measures 11.50"H x 11.50"W x 39.36"L and weighs 23.00 lbs. XT-GSOUTS3 outriggers (4 pieces) measure 64.00"H x 2.00"W x 37.50"L and weigh 29.00 lbs. XT-BLOCK-MK2 measures 18.50"H x 22.50"W x 22.50"L and weighs 77.30 lbs. XT-TOPCM measures 11.50"H x 9.50"W x 24.00"L and weighs 26.40 lbs.

Includes XT-GSB MK2 Rigger Base with extendable feet, XT-SQPL328 3.28ft ladder truss segment, XT-GSOUT3 3' outrigger brace tubes with clamps, XT-BLOCK sleeve block 4-way junction box, XT-TOPCM truss top with I-beam mount and chain pulley wheels, XT-HINGE 4 hinge block set. Lift hoist is not included.

The package ships in 6 boxes with specified dimensions and weights. Suggested shipping method is LTL.
