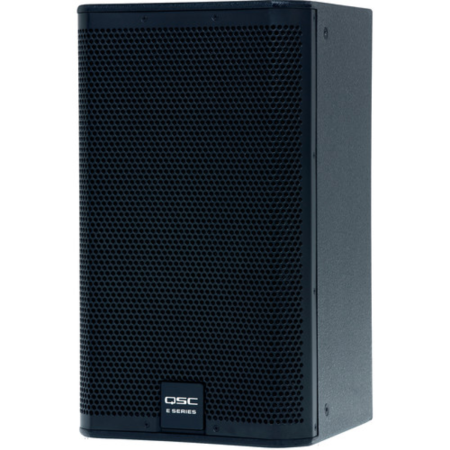

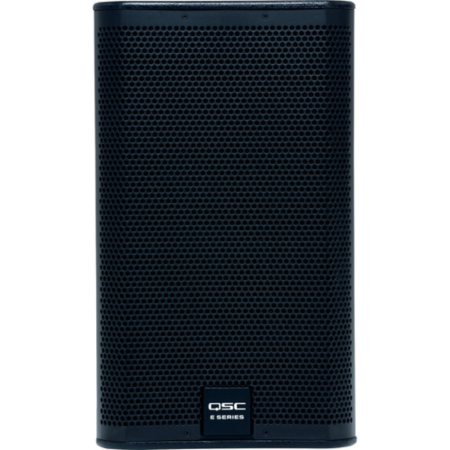

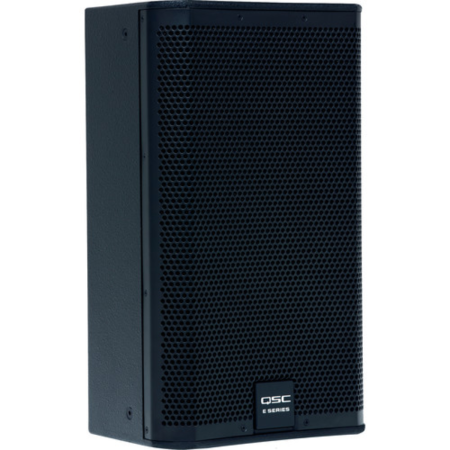

QSC E110

Passive Loudspeaker

QSC E110 is a compact 10-inch, 2-way non-powered loudspeaker designed for entertainment venues, houses of worship, mobile performers, rental systems, and production applications. Its multi-angle plywood enclosure allows it to work as either a main PA speaker or a stage monitor, giving users flexible deployment in tight or crowded spaces.

QSC E110 Competitive Differences

• 10-inch die-cast frame woofer with a 2.5-inch voice coil for compact, high-output performance
• 300W continuous and 1200W peak power handling for live sound and event production
• 126dB peak SPL output delivers strong projection from a compact passive loudspeaker
• 85-degree conical DMT coverage helps provide even sound across the listening area
• Multi-angle enclosure supports both main PA and 55-degree stage monitor placement

QSC E110 Description

The QSC E110 is built for users who need a compact passive loudspeaker with dependable output and flexible placement options. Its 10-inch woofer uses a die-cast frame and 2.5-inch voice coil, giving the speaker the durability and power handling needed for live performance, DJ systems, karaoke, event production, and installed sound.

QSC’s Directivity Matched Transition design provides 85-degree conical coverage, helping the E110 deliver consistent sound throughout the audience area. The 1-inch exit compression driver with a 1.75-inch voice coil supports clear high-frequency reproduction, while the full-range crossover is tuned for smooth performance.

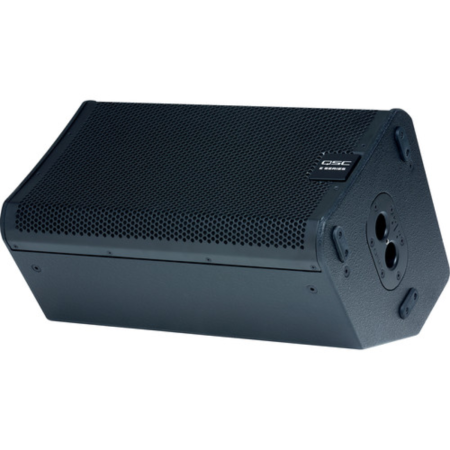

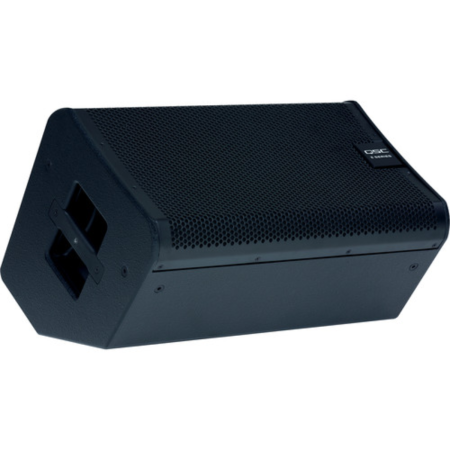

The multi-angle enclosure makes the E110 equally useful as a main PA speaker or a stage monitor. When used as a monitor, the cabinet sits at a 55-degree angle so it can be placed close to performers on crowded stages without taking up excessive space.

For enhanced system performance, the E110 can be used with QSC GXD or PLD amplifiers, or with a QSC TouchMix digital mixer, to access factory-tuned DSP presets. These presets support applications such as live sound reinforcement, systems with or without subwoofers, stage monitoring, dance music, and karaoke.

E110 Features

• 10-inch, 2-way non-powered loudspeaker
• 300W continuous and 1200W peak power handling
• 10-inch die-cast frame woofer
• 2.5-inch low-frequency voice coil
• 1-inch exit compression driver
• 1.75-inch high-frequency voice coil
• 85-degree conical DMT coverage
• 126dB peak SPL output at 1 meter
• Suitable for main PA and stage monitor applications
• 55-degree monitor angle for close performer placement
• Multi-angle plywood enclosure
• Black tour-grade textured paint finish
• Foam-lined perforated steel grille
• Updated cabinet design with improved yoke mount points
• Durable metal top-mounted handle
• Dual-angle 35 mm pole socket
• 6 x M8 suspension points
• 2 x NL4 and 1 x barrier strip input connectors
• Compatible with QSC E Series DSP tunings through select QSC amplifiers and TouchMix mixers
• Optional padded cover available for transportation protection

E110 Specifications

• Configuration: 1 x 10-inch, 2-way, non-powered loudspeaker
• Frequency Range (-10 dB): 50 Hz - 20 kHz
• Power Capacity: 300W continuous, 1200W peak
• Sensitivity: 95 dB, 1W at 1 m
• Coverage Angle: 85-degree conical DMT
• Peak SPL: 126dB at 1 m
• LF Driver: 254 mm (10 in) driver with 64 mm (2.5 in) voice coil
• HF Driver: 25 mm (1 in) exit, 45 mm (1.75 in) voice coil compression driver
• Nominal Impedance: 8 ohms
• Crossover: Full-range only, 1.8 kHz
• Input Connectors: 2 x NL4, 1 x barrier strip
• Enclosure: Multi-angle plywood with black texture paint finish
• Grille: Perforated powder-coated steel grille with foam lining
• Handle: One top-mounted metal handle
• Mounting and Suspension: 6 x M8 suspension points, dual-angle 35 mm pole socket
• Dimensions: 13 x 22 x 13 in (330 x 560 x 330 mm)
• Net Weight: 44 lb (20 kg)
• Shipping Weight: 50 lb (23 kg)

QSC E110-BK (QSC E110BK)
