Active Line Array Subwoofer

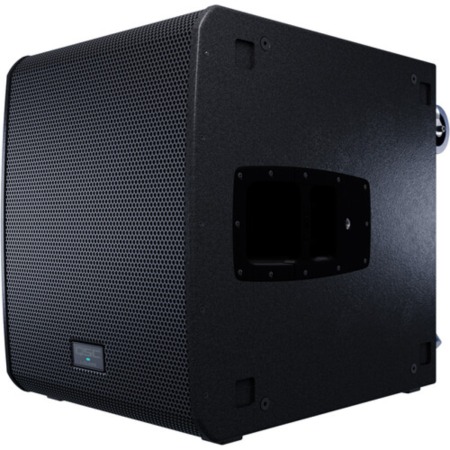

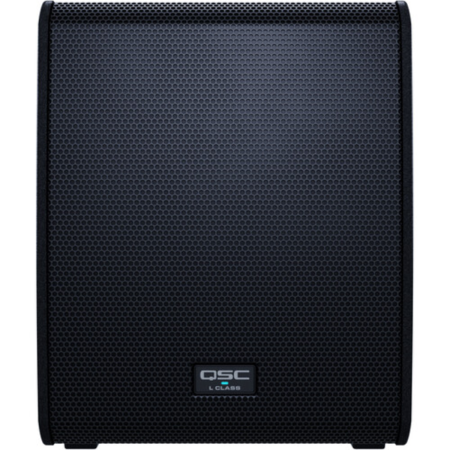

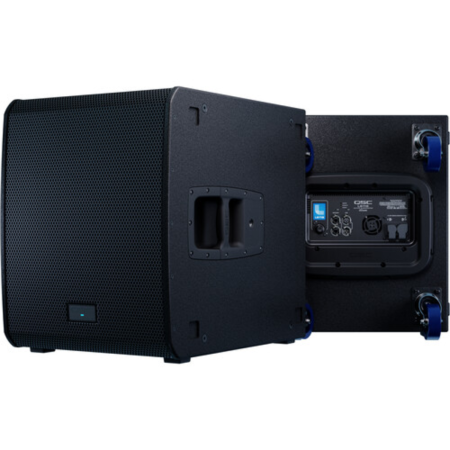

QSC LS118 is an 18-inch active line array subwoofer built for high-output low-frequency reinforcement in live venues, fixed installations, mobile entertainment systems, AV rental, and event production. With a 4000W Class-D amplifier module, 138 dB peak SPL, Dante networking, and QSC SysNav control, it delivers powerful bass performance in a rugged, easy-to-deploy package.
QSC LS118 Competitive Differences
- 18-inch long-excursion direct-radiating woofer for powerful low-frequency output
- 4000W peak Class-D amplifier module with Power Factor Correction
- Up to 138 dB peak SPL for high-impact bass reinforcement
- QSC Acoustic Linear Phase design supports coherent deployment with compatible QSC loudspeakers
- Dante and Q-SYS network integration through dual RJ45 connections
- Omnidirectional or cardioid operation when using two or more LS118 subwoofers
QSC LS118 Description

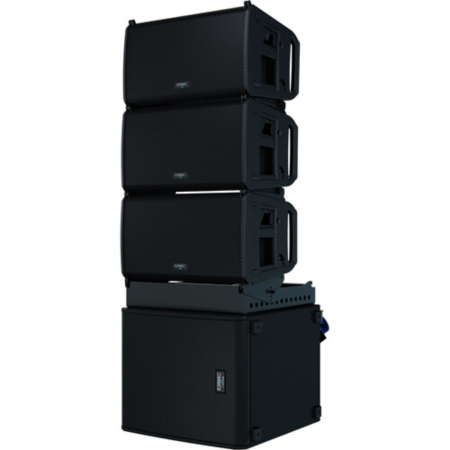

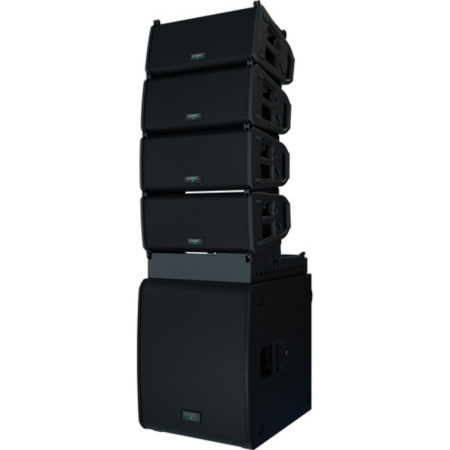

The QSC LS118 is designed to complement QSC LA108 and LA112 active line array loudspeakers, giving system designers and production teams a scalable subwoofer solution for modern sound reinforcement. Its purpose-designed 18-inch woofer and bass-reflex enclosure provide strong low-frequency performance for music playback, live sound, corporate AV, houses of worship, and installed venue systems.
At the core of the LS118 is a 4000W peak Class-D amplifier module engineered for high output with efficient power use. The subwoofer reaches up to 138 dB peak SPL, making it suitable for demanding applications where clean, extended bass and deployment flexibility are essential.
QSC Acoustic Linear Phase technology helps the LS118 integrate coherently with other compatible QSC loudspeakers in the same system, supporting a more uniform listening experience throughout the venue. QSC SysNav control allows users to design, configure, monitor, and apply signal processing to individual subwoofers, full arrays, or combined system groupings from a compatible iPadOS device.
For advanced system layouts, the QSC LS118 supports both omnidirectional and cardioid radiation modes, with cardioid operation requiring a minimum of two units. Dante audio-over-IP, Q-SYS integration, analog XLR input and thru, and powerCON power input and output make the LS118 well suited for plug-and-play AV installs, rental systems, and professional live production environments.
LS118 Features
- 18-inch active line array subwoofer
- Purpose-designed 18-inch long-excursion direct-radiating woofer
- 4000W peak Class-D amplifier module
- Power Factor Correction for efficient amplifier performance
- Maximum SPL of 138 dB peak
- Frequency response down to 35 Hz at -10 dB
- QSC Acoustic Linear Phase design for coherent system deployment
- QSC SysNav app control for design, configuration, monitoring, and signal processing
- Dante digital audio-over-IP support
- Q-SYS Ecosystem integration through Q-SYS Inventory Extensions
- Analog XLR input and thru connections
- Dual RJ45 network connections for Dante and QSC SysNav in/thru operation
- Omnidirectional or cardioid radiation modes with two or more units
- Selectable DEEP mode for extended low-frequency performance
- Rugged birch enclosure with polyurea finish
- Metal grille for driver protection

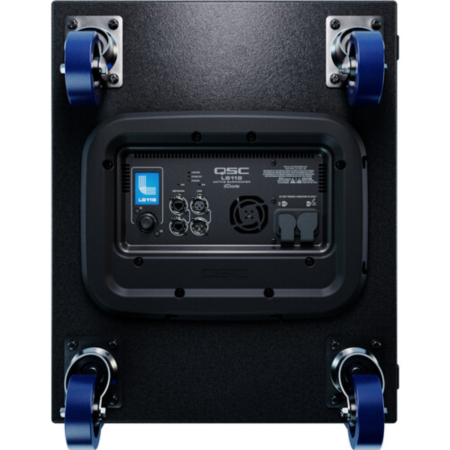

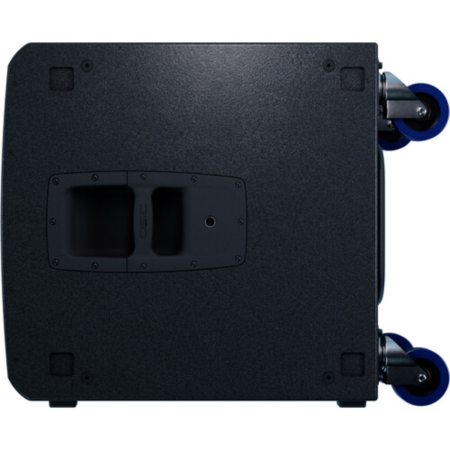

- Four low-noise, heavy-duty 4-inch casters included
- Supports vertical or horizontal deployment
- Two M20 threaded pole sockets for flexible mounting
- Compatible with optional QSC LA108 and LA112 active line array loudspeakers
- 6-year extended warranty available with product registration
LS118 Specifications
- Speaker Type: Active line array subwoofer
- Enclosure Type: Bass-reflex
- LF Driver: 1 x 18 in (45.7 cm) woofer
- Total Output Power: 4000W peak
- Amplifier Class: Class-D
- Frequency Range: 35 Hz - 111 Hz (-10 dB)
- Frequency Response: 41 Hz - 98 Hz (-6 dB)
- Maximum SPL: 138 dB peak
- Dynamic Processing: Limiter
- Audio I/O: 1 x XLR 3-pin line input
- Audio I/O: 1 x XLR 3-pin line thru
- Network I/O: 2 x RJ45 for Dante
- Mobile App Compatible: Yes, iPadOS only
- App Name: QSC SysNav
- AC Input Power: 100 to 240 VAC, 50/60 Hz
- AC Power I/O: 1 x powerCON input, 1 x powerCON output
- Current Consumption: 3.6 A at 100 VAC, 1/8 power
- Current Consumption: 3 A at 120 VAC, 1/8 power
- Current Consumption: 1.7 A at 230 VAC, 1/8 power
- Mounting: Stand mount
- Pole Sockets: 2 x M20 threaded pole sockets on side and top
- Suspension Points: 8 x M10 fly points on side and top
- Construction Material: Metal grille, plywood
- Finish: Polyurea coating
- Color: Black
- Dimensions: 31.1 x 25.2 x 20.5 in (79 x 64 x 52.1 cm)
- Weight: 110 lb (49.9 kg)
- Package Weight: 134 lb
- Box Dimensions: 35 x 29.5 x 22.5 in
What's In The Box
- QSC LS118 active line array subwoofer
- Four 4-inch casters
- powerCON power cord
QSC LS118
(QSC LS-118)
