This package includes:
The Rane FOUR Package is a premium solution for professional DJs, combining the advanced Rane FOUR DJ controller with the rugged ProX XS-RANEFOUR WLT flight case. This package is designed to deliver top-tier performance and protection, making it ideal for both studio use and live performances.
Rane FOUR DJ Controller
Professional DJ Controller: The Rane FOUR is a high-end DJ controller known for its robust build quality and advanced features.
4-Channel Mixer: Equipped with a 4-channel mixer, offering extensive control and flexibility for mixing.
High-Resolution Jog Wheels: Features high-resolution jog wheels that provide precise control and a tactile DJing experience.
Integrated Performance Pads: Includes performance pads for triggering samples, loops, and effects, enhancing creative possibilities.
Serato DJ Pro Integration: Fully compatible with Serato DJ Pro, offering seamless integration and advanced software features.
ProX XS-RANEFOUR WLT Flight Case
Durable Construction: Built with high-quality materials to ensure maximum protection for your equipment during transport.
Custom Fit: Specifically designed to fit the Rane FOUR controller, providing a snug and secure fit.
Laptop Shelf: Comes with a sliding laptop shelf for convenient placement of your laptop during performances.
Heavy-Duty Hardware: Features heavy-duty hardware, including reinforced corners and sturdy latches, ensuring long-lasting durability.
Key Benefits:
All-in-One Solution: Combines a top-tier DJ controller with a protective flight case, offering a complete package for professional DJs.
Enhanced Portability: The flight case makes it easy to transport your Rane FOUR controller safely to gigs and events.
Professional Performance: The Rane FOUR controller provides all the tools needed for high-level DJ performances, while the ProX flight case ensures your gear is always protected.
This package is perfect for DJs who demand reliability, performance, and protection for their equipment.
SPCIFICATIONS:
Rane FOUR:
Digital Audio
Converters: Cirrus Logic, 24-bit PCM, 48 kHz
Digital Signal Processing: 32-bit, Floating Point, Double precisio
Dynamic Range (A-weighted, unity gain):
ADC: 113 dB
DAC: 113 dB
CD Input to Analog Output: 110 dB
CD Input to USB Output: 113 dB
USB Input to Analog Output: 113 dB
Inputs
Microphone 1/2 (Combo XLR/1/4" [6.35 mm] TRS):
Analog Gain: 25 dB
Maximum Input: 110 mV
Gain Trim: Off to +26 dB (unity at center)
Tone Control: 2-band
Line/Phono Inputs 3/4 (RCA stereo pairs, switchable):
Line: Line
Maximum Input: 4 Vrms
Gain Trim: Off to +12 dB
Tone Control: 3-band, full-cut to +10 dB
THD+N (20 kHz BW @ 1 kHz: 0.004%
Phono: RIAA
RIAA Curve: +/-0.25 dB
Gain (@ 1 kHz): 31.5 dB
Maximum Input (@ 1 kHz): 106 mV
Dynamic Range (A-weighted): 102 dB
Outputs
Main Outputs (XLR):
Gain Trim: Off to 0 dB
Maximum Output: 8 Vrms
THD+N (20 kHz BW @ 1 kHz): 0.004%
Frequency Response: Flat - 20-20kHz
Main Outputs (RCA stereo pair):
Maximum Output: 4 Vrms
THD+N (20 kHz BW @ 1 kHz): 0.004%
Frequency Response: Flat - 20-20kHz
Booth Outputs (1/4”):
Gain Trim: Off to 0 dB
Maximum Output: 8 Vrms
THD+N (20 kHz BW @ 1 kHz): 0.004%
Frequency Response: Flat - 20-20kHz
Headphone Outputs (1/4"/6.35 mm and 1/8"/3.5 mm TRS):
Maximum Output: 4 Vrms Voltage: (no load)
Output Power: 50 mW (50 ohms)
Dynamic Range (A-weighted): 108 dB
Pads
(16) on/off multi-color back-lit pads (8 per deck, 9 modes each
Wheel Displays
(2) 320 x 240 Color LCD’s
Pad & FX Displays
(9) 128 x 32 Monochrome OLED’s
Faders
(1) MAG FOUR tension-adjustable crossfader with contour
(4) Standard channel faders
Connections
(2) XLR outputs (Main)
(2) 1/4” outputs (Booth)
(1) RCA stereo output pair (Main)
(2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
(2) RCA stereo input pairs (Deck 3-4)
(1) 1/4” (6.35 mm) TRS output (Headphones)
(1) 1/8” (3.5 mm) TRS output (Headphones)
(2) USB Type-B ports
(1) IEC power cable input
Power
Connection: IEC
Voltage: 100–240 V, 50/60 Hz
Consumption: 20 W
Dimensions
Dimensions (width x depth x height): 30.8” x 15.9” x 4.2”
782.32 x 403.8 x 106.6 mm
Weight (including platters)
18.25 lbs.
8.27 kg
ProX XS-RANEFOUR WLT:
Silver Hardware + Black Finish
Sliding Laptop Shelf with Cable Thru
1U Rackspace & Removable Access Lid
Heavy-Duty Steel Ball Corners
Low Profile Off-Terrain Rubber Wheels
Super-Sleek Honeycomb Digital™ Surface
Industrial Grade Rubber Stopping Feet
Recessed Spring-Loaded Rubber Handles
Twist-locking Recessed Butterfly Latches
High-Density Foam Interior
Reinforced Dual Anchor Rivets
ProX Limited Lifetime Warranty

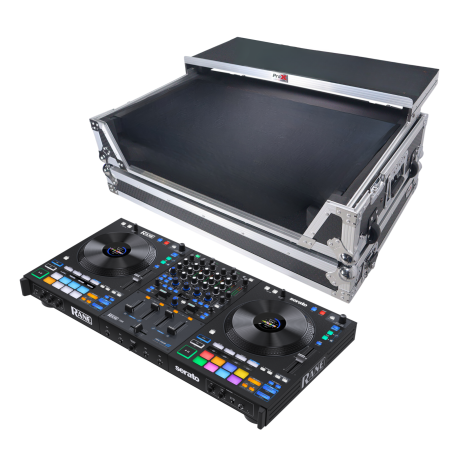

RANE Four with Flight Case
(Rane FOUR with ProX Flight Case)
