This package includes:
Powered Column Speaker & Subwoofer Bundle
The
RCF NXL 14A + SUB 18-AX System Package is a full-range, high-output live sound system designed for portable events and professional installations. With advanced DSP control, Bluetooth connectivity, and robust hardware, this all-RCF system is ideal for mobile DJs, bands, houses of worship, and production companies needing uncompromised performance, portability, and reliability.
RCF System Package Includes
- (2) RCF NXL 14A Powered Column Array Speakers – 2×6in drivers, 128 dB SPL, 2100W Class-D amp
- (2) RCF SUB 18-AX Powered Subwoofers – 18in, 135 dB SPL, Bluetooth DSP, 2200W amp

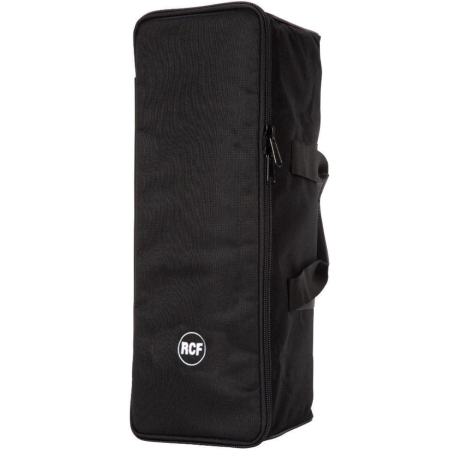

- (2) RCF CVR60685 – Padded Protective Covers for NXL 14A

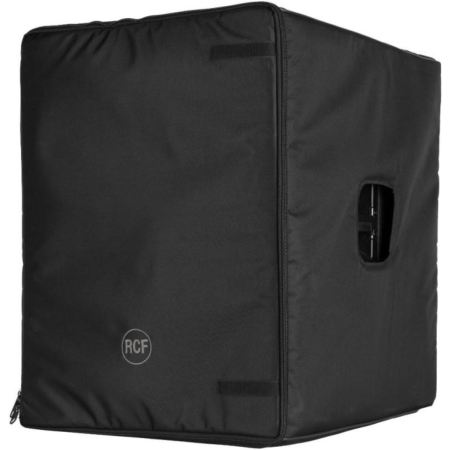

- (2) RCF CVR 003 – Padded Protective Covers for SUB 18-AX

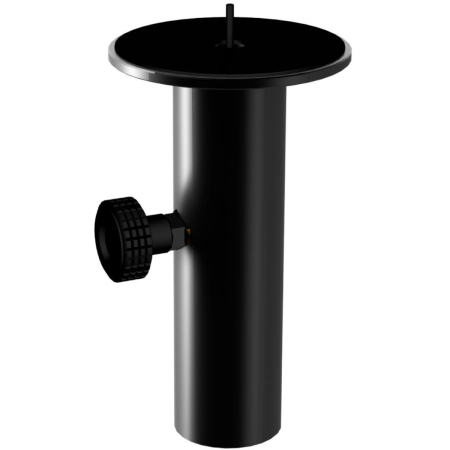

- (2) RCF PMK60678 – 35mm Pole Adapters for NXL 14A

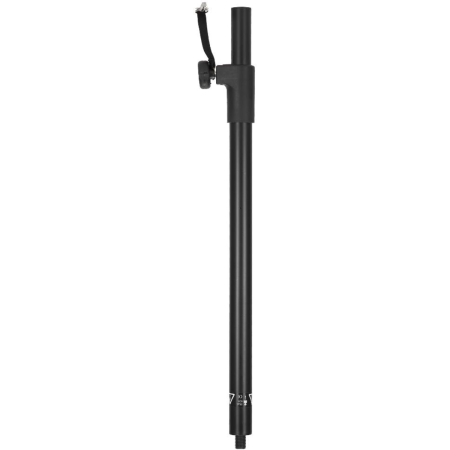

- (2) RCF AC PM M20 – Adjustable Subwoofer Poles (725–1135 mm)

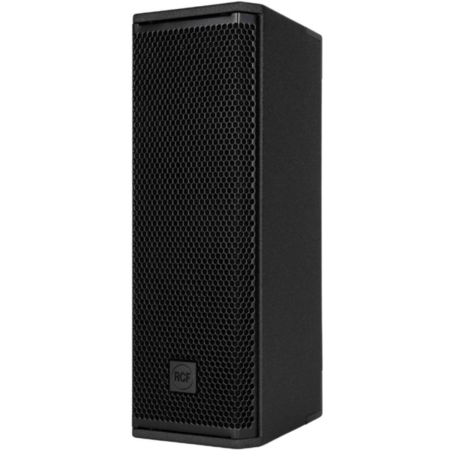

RCF NXL 14A Description
The
RCF NXL 14A is a compact, column-style powered speaker designed to deliver precision, power, and portability. With two 6" neodymium woofers and a 1.75" PKX compression driver in a rotatable TRW waveguide, the NXL 14A produces 128 dB max SPL powered by a 2100W Class-D amplifier. Its rugged plywood enclosure is finished in black or white polyurea and includes top and bottom rigging points, making it ideal for portable sound reinforcement or fixed installation.
RCF NXL 14A Features
- 128 dB max SPL output
- 2100W peak Class-D bi-amplification
- 1.75" PKX compression driver + 2× 6" neodymium woofers
- Rotatable 100° x 70° waveguide
- DSP with Linear, Boost, and Stage presets
- FiRPHASE and Bass Motion Control
- Weather-resistant polyurea-coated wood cabinet
RCF NXL 14A Specifications
- Max SPL: 128 dB
- Frequency Response: 70 Hz – 20,000 Hz
- Power Output: 2100W Peak
- Dimensions: 22.32 x 7.76 x 10.63 in (567 x 197 x 270 mm)
- Weight: 28.22 lbs (12.8 kg)

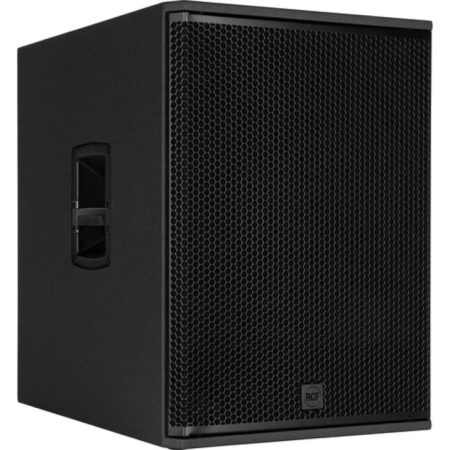

RCF SUB 18-AX Description
The
RCF SUB 18-AX delivers deep, controlled low-end with 135 dB of max SPL and advanced onboard DSP. With Bluetooth control via the LiveRemote app and a 2.4” color touchscreen, the subwoofer supports crossover presets, cardioid setup, delay, and 8-band EQs. The 18" woofer is housed in a polyurea-coated birch cabinet with a sealed PowerCON TRUE1 TOP connector, ideal for demanding mobile or installed environments.
RCF SUB 18-AX Features
- 2200W Class-D amplifier (1100W RMS)
- 135 dB max SPL
- 18” high-excursion woofer with 4” voice coil
- Digital DSP with presets for RCF tops (incl. NXL 14A)
- Bluetooth control via LiveRemote app (iOS/Android)
- 2.4” color touchscreen for full system tuning
- Bass Motion Control algorithm for extended LF performance
RCF SUB 18-AX Specifications
- Max SPL: 135 dB
- Frequency Response: 35 Hz – 120 Hz
- Power Output: 2200W Peak / 1100W RMS
- Dimensions: 27.28 x 19.88 x 26.97 in (693 x 505 x 685 mm)
- Weight: 94.58 lbs (42.9 kg)
Included Accessories
- 2 × RCF CVR60685 Padded Covers for NXL 14A
- 2 × RCF CVR 003 Padded Covers for SUB 18-AX
- 2 × RCF PMK60678 35mm Adapters
- 2 × RCF AC PM M20 Subwoofer Poles (725–1135 mm, 88 lb load)
What's In The Box
- 2 × RCF NXL 14A Powered Column Speakers
- 2 × RCF SUB 18-AX Powered Subwoofers
- 2 × RCF CVR60685 Speaker Covers
- 2 × RCF CVR 003 Subwoofer Covers
- 2 × RCF PMK60678 35mm Pole Adapters
- 2 × RCF AC PM M20 Adjustable Sub Poles

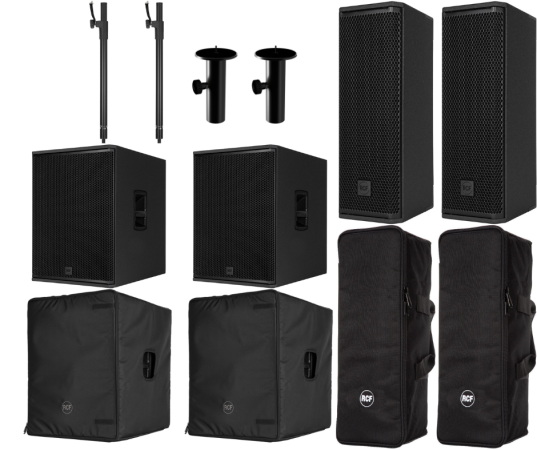

RCF EVOX 18 | 2x NXL 14A, 2x Sub 18AX, Covers & Poles
(RCF EVOX 18 | 2x NXL 14A, 2x Sub 18AX, Covers & Poles Package)
