RCF HDL 26A

2way 6in - 133dB

Call For Price
$0 Tax $1124 Back or Join VIP for upfront discounts.

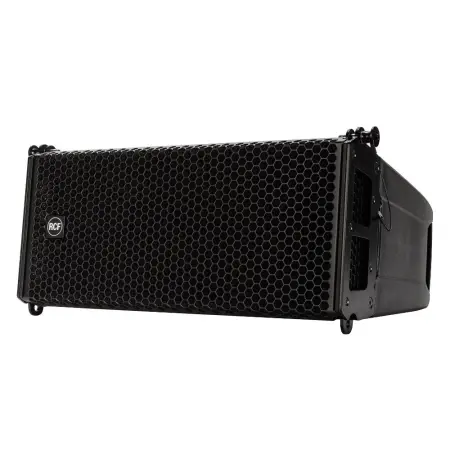

Dual 6-Inch Powered Line Array Speaker

The RCF HDL 26A is an ultra-compact, two-way active line array speaker designed for professional live sound reinforcement, touring productions, concerts, and small to medium-sized events. Featuring dual 6-inch neodymium woofers, a neodymium compression driver with a 3-inch titanium diaphragm voice coil, and a 2000W peak Class-D amplifier, this speaker delivers up to 133 dB maximum SPL. Advanced FiRPHASE DSP processing, RDNet networked management, and a proprietary 4PATH waveguide provide precise 100° x 10° coverage, exceptional vocal clarity, and consistent sound reproduction. Its lightweight composite enclosure and integrated array rigging hardware make it suitable for both portable and installed line array configurations.

RCF HDL 26A Competitive Differences

  • 133 dB Maximum SPL: Delivers powerful sound pressure levels for live performances, touring systems, and professional sound reinforcement.
  • 2000W Peak Class-D Amplification: Provides 1400W peak low-frequency power and 600W peak high-frequency power with efficient bi-amplified operation.
  • Dual 6-Inch Neodymium Woofers: Two high-powered woofers with 2-inch voice coils provide controlled bass response, accurate midrange reproduction, and high output in a compact enclosure.
  • 3-Inch Titanium Compression Driver Voice Coil: High-performance neodymium compression driver provides clear vocal reproduction and detailed high-frequency projection.
  • 4PATH Waveguide Technology: Proprietary waveguide design maintains consistent 100° horizontal by 10° vertical directivity for precise audience coverage.
  • 750 Hz Crossover: Low crossover frequency optimizes the transition between the woofers and compression driver for detailed vocal reproduction.
  • FiRPHASE Processing: Proprietary DSP filtering improves phase coherence and sound clarity while maintaining low system latency.
  • RDNet Networked Management: Integrated RDNet connectivity enables remote monitoring, system configuration, and control of compatible line array systems.
  • Symmetrical Cabinet Design: Coplanar woofer arrangement and centrally positioned waveguide provide consistent left and right coverage.
  • Integrated Array Rigging: Built-in rigging hardware allows multiple modules to be assembled into flown line array configurations using compatible accessories.
  • Lightweight Construction: Reinforced polypropylene composite enclosure weighs approximately 29.76 lbs (13.5 kg) for convenient transportation and installation.

RCF HDL 26A Description

The RCF HDL 26A combines powerful output, advanced acoustic engineering, and compact dimensions in a professional active line array module. Its dual 6-inch neodymium woofers feature 2-inch voice coils and are arranged symmetrically around a centrally positioned high-frequency waveguide. A neodymium compression driver with a 1.5-inch exit and 3-inch titanium diaphragm voice coil delivers detailed vocals and precise high-frequency reproduction. Together, these transducers provide an extended frequency response of 55 Hz to 20 kHz and up to 133 dB maximum SPL, making the speaker suitable for demanding live sound applications.

The integrated 2000W peak Class-D amplifier provides 1400W peak power for the low-frequency drivers and 600W peak power for the high-frequency driver. Advanced digital signal processing incorporates RCF's proprietary FiRPHASE technology to optimize phase coherence and frequency response across the operating range. The 750 Hz crossover helps maintain consistent vocal reproduction, while thermal protection, RMS protection, and soft limiting help protect the system during demanding performances. Fanless convection cooling supports efficient operation without additional mechanical noise.

The proprietary 4PATH waveguide provides a controlled 100° horizontal by 10° vertical coverage pattern, allowing multiple HDL 26A modules to work together in line array configurations. The symmetrical cabinet design uses coplanar woofers and a central high-frequency waveguide to maintain consistent horizontal directivity. The specialized front baffle also contributes to controlled low-frequency dispersion while minimizing unwanted acoustic turbulence and distortion. These design features help deliver clear, balanced sound throughout the listening area in both standalone and multi-module applications.

For professional system management, the HDL 26A includes onboard RDNet connectivity through EtherCON input and output connections. Compatible RDNet systems allow audio engineers to remotely monitor speaker operation, configure processing settings, and manage multiple loudspeakers from a centralized interface. Balanced and unbalanced XLR audio connections provide straightforward integration with professional mixing consoles and audio systems. Preset controls and an RDNet bypass function provide additional configuration flexibility for different array applications.

Designed for touring and professional installation, the HDL 26A features a reinforced polypropylene composite enclosure, a protective steel grille, two rear carrying handles, and integrated array rigging hardware. The compact enclosure measures approximately 18.5 inches wide, 9.33 inches high, and 14.84 inches deep, with a weight of only 29.76 lbs. Multiple modules can be combined using compatible RCF flybars and rigging accessories, while the separately available RCF HDL 35-AS flyable subwoofer provides extended bass reinforcement for larger systems. Its combination of portability, precise coverage, and advanced networked control makes the HDL 26A suitable for concerts, live bands, corporate events, houses of worship, rental companies, and professional sound installations.

HDL 26A Features

  • Ultra-compact active two-way line array speaker module
  • 2000W peak Class-D bi-amplification
  • 1000W RMS total amplifier power
  • 133 dB maximum SPL at 1 meter
  • Dual 6-inch high-powered neodymium woofers
  • 2-inch voice coil on each low-frequency driver
  • Neodymium compression driver with 1.5-inch exit
  • 3-inch titanium diaphragm compression driver voice coil
  • 55 Hz - 20 kHz frequency response
  • 100° horizontal x 10° vertical coverage
  • Proprietary 4PATH constant-directivity waveguide
  • Symmetrical woofer and waveguide arrangement
  • Hybrid-bandpass front baffle design for controlled low-frequency dispersion
  • 750 Hz crossover frequency for precise vocal reproduction
  • 1400W peak low-frequency amplifier power
  • 600W peak high-frequency amplifier power
  • RCF FiRPHASE DSP technology
  • Onboard RDNet networked monitoring and management
  • RDNet EtherCON input and output connections
  • XLR audio input and output connections
  • Balanced and unbalanced audio signal compatibility
  • Preset selection and RDNet bypass controls
  • Integrated DSP-based crossover and signal processing
  • Thermal and RMS protection
  • Soft limiter for speaker protection
  • High-efficiency convection cooling
  • PowerCON AC input and output connections
  • Reinforced polypropylene composite cabinet
  • Protective steel front grille
  • Two integrated rear carrying handles
  • Integrated line array rigging hardware
  • Compatible with RCF line array flybars and rigging accessories
  • Suitable for standalone or multi-module line array applications
  • Compatible with separately available RCF HDL 35-AS flyable subwoofer systems
  • Lightweight design weighing 29.76 lbs (13.5 kg)
  • Designed for concerts, live bands, touring productions, corporate events, and professional installations

HDL 26A Specifications

  • Brand: RCF
  • Model: HDL 26A
  • Manufacturer Model Designation: HDL 26-A
  • Product Type: Active Two-Way Line Array Module
  • Speaker Configuration: Dual 6-Inch Woofers with Compression Driver
  • Frequency Response: 55 Hz - 20,000 Hz
  • Maximum SPL: 133 dB @ 1 m
  • Horizontal Coverage: 100°
  • Vertical Coverage: 10°
  • Waveguide: Proprietary 4PATH
  • Low-Frequency Transducers: 2 x 6 in (152.4 mm) Neodymium
  • Woofer Voice Coil: 2.0 in (50.8 mm) Each
  • Compression Driver: 1 x 1.5 in (38.1 mm) Neodymium
  • Compression Driver Voice Coil: 3.0 in (76.2 mm)
  • Compression Driver Diaphragm: Titanium
  • Amplifier Type: Class D, Bi-Amplified
  • Total Power Output: 2000W Peak / 1000W RMS
  • Low-Frequency Power: 1400W Peak / 700W RMS
  • High-Frequency Power: 600W Peak / 300W RMS
  • DSP Processing: RCF FiRPHASE
  • Crossover Frequency: 750 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Preset, RDNet Bypass
  • Networked Management: RCF RDNet
  • RDNet Connectivity: EtherCON Input and Output
  • Input Signal: Balanced/Unbalanced
  • Audio Input Connector: XLR
  • Audio Output Connector: XLR
  • Input Sensitivity: +4 dBu
  • Cooling: Convection (Fanless)
  • Power Connections: PowerCON Input/Output
  • Cabinet Material: Polypropylene Composite
  • Rigging Hardware: Integrated Array Fittings
  • Handles: 2 Rear
  • Grille Material: Steel
  • Color: Black
  • Safety Compliance: CE
  • Dimensions (H x W x D): 9.33 x 18.50 x 14.84 in (237 x 470 x 377 mm)
  • Weight: 29.76 lbs (13.5 kg)
  • Shipping Dimensions (H x W x D): 10.24 x 21.65 x 16.73 in (260 x 550 x 425 mm)
  • Shipping Weight: 32.85 lbs (14.9 kg)
  • US Part Number: 13000964
  • US EAN: 8024530023447

What's In The Box

  • 1 x RCF HDL 26A Active Two-Way Line Array Speaker Module

Important: This listing is for one RCF HDL 26A powered line array module. Additional array modules, flybars, rigging accessories, RDNet control equipment, and subwoofers are sold separately. Flown installations must use compatible manufacturer-approved rigging hardware and follow the appropriate load limits and installation requirements.

RCF USA HDL 26A (RCF HDL 26)

App Control Via RDNet networked management
Control Interfaces Preset selection, RDNet bypass controls, balanced/unbalanced XLR audio input/output
Firmware Updates Supported via RDNet
Onboard DSP RCF FiRPHASE DSP technology
Wireless Capabilities None

Beam Angle 100° horizontal x 10° vertical degrees
Frequency Response 55 Hz - 20 kHz Hz
Impedance Not specified ohms
IP Rating Not specified
LED Type Titanium
Max SPL 133 dB dB
Power Rating 2000W Peak / 1000W RMS W
Wattage 2000W Peak W

Brand RCF
Name RCF HDL 26A
Primary Category Active Two-Way Line Array Module

Build Material Reinforced polypropylene composite
Dimensions 9.33 x 18.50 x 14.84 in in
Included Accessories 1 x RCF HDL 26A Active Two-Way Line Array Speaker Module
Mounting Options Integrated array rigging hardware compatible with RCF flybars and rigging accessories
Weight 29.76 lbs lbs

CE Certified Yes
Warranty Length Not specified years

Driver Configuration Dual 6-Inch Woofers with Compression Driver
Woofer Size 6 in in

The RCF HDL 26A offers powerful sound output with 133 dB max SPL in a compact and lightweight design, advanced DSP processing for clear and coherent audio, and flexible networked control via RDNet. Its integrated rigging hardware and consistent coverage make it ideal for professional live sound and touring applications.

The speaker uses dual 6-inch neodymium woofers and a 3-inch titanium diaphragm compression driver powered by a 2000W peak Class-D amplifier. FiRPHASE DSP technology optimizes phase coherence and frequency response, while the proprietary 4PATH waveguide controls directivity. RDNet connectivity allows remote monitoring and configuration.

The HDL 26A's combination of dual 6-inch neodymium woofers with a 3-inch titanium diaphragm compression driver, proprietary 4PATH waveguide for precise coverage, FiRPHASE DSP processing, and integrated RDNet networked management distinguishes it as a versatile and high-performance compact line array module.

Ultra-compact active two-way line array speaker module with 2000W peak Class-D bi-amplification, 133 dB max SPL, dual 6-inch neodymium woofers with 2-inch voice coils, 3-inch titanium diaphragm compression driver, 55 Hz - 20 kHz frequency response, 100° horizontal x 10° vertical coverage via proprietary 4PATH waveguide, 750 Hz crossover frequency, FiRPHASE DSP technology, onboard RDNet networked monitoring and management, balanced/unbalanced XLR inputs and outputs, thermal and RMS protection, soft limiter, convection cooling, reinforced polypropylene composite cabinet, steel grille, integrated rigging hardware, and weighing 29.76 lbs.

Suitable for concerts, live bands, touring productions, corporate events, houses of worship, rental companies, and professional sound installations. Compatible with RCF line array flybars, rigging accessories, and the separately available RCF HDL 35-AS flyable subwoofer for extended bass reinforcement.
