RCF P6215

RCF P6215 (RCF P 6215)

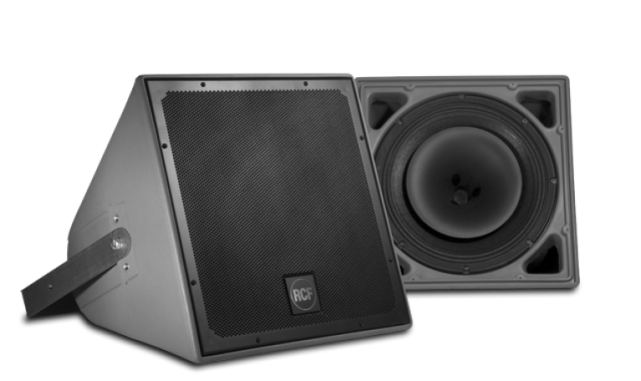

The P6215 is a weatherproof full range, wide-dispersion, coaxial two way loudspeaker system for very high output and longer throw applications.

The high-frequency section is a constant directivity CMD horn loaded to a 1.3” RCF Precision compression driver with a 2.5” diaphragm assembly for smooth, wide dispersion.
The low frequency transducer is a 15” woofer with a 3” voice coil. The cabinet is equipped with 12 x M10 brass inserts, a stainless steel U-Bracket and pair of spacers for 90° mounting. P6215 meets the requirements of IP 55 code (International Protection Rating)

FEATURES

Cabinet is a single piece rotational moulded in medium density polyethylene, fully UV protected and waterproof IP 55
Front grille in custom perforated aluminium with open-cell fibres and water repellent woven fabric backing
Stainless steel bracket
One 15" high-output LF transducer with 3" voice coil
One RCF Precision 1.3" C. Driver with 2.5" voice coil
60° x 60° conical horn
10° X 20° enclosure sides for array configurations
Active Mosfet Compression Driver Protection
12 brass suspension points (M10)
Line transformer

ACOUSTICAL SPECIFICATIONS

Frequency Response -10 dB:75 Hz ÷ 20000 Hz
Max SPL @ 1m:134 dB
Horizontal coverage angle:60°
Vertical coverage angle:60°
Directivity index; Q:12.8
System Sensitivity:100 dB
Nominal Impedance:8 Ω
Power Handling:600 W
Peak Power Handling:2400 W
Protections:Dynamic
Crossover frequencies:1100 Hz

TRANSDUCERS

Compression Driver:1.3" HF driver, 2.5" voice coil
Nominal Impedance:8 Ω
Input Power Rating:90 W AES
Sensitivity:108 dB
Woofer:15" woofer, 3" coil
Nominal Impedance:8 Ω
Input Power Rating:90 W AES
Sensitivity:101 dB

INPUT SECTION

Input connector:4 x 1.5mm square, 5m Neoprene cable

CABINET

Cabinet Material:Polyethylene rotomoulded
Hardware:12 x M10 inserts
Grille:Custom perforated aluminium grillewith open-cell fiber and water repellent woven fabric backing
Color:Grey

PHYSICAL SPECIFICATIONS

Height:463 / 18.22 mm/inch
Width:463 / 18.22 mm/inch
Depth:433 / 17.04 mm/inch
Net Weight:19.2 / 42.32 kg/lbs
