Touring-grade power distribution rack for live events and pro audio systems
The

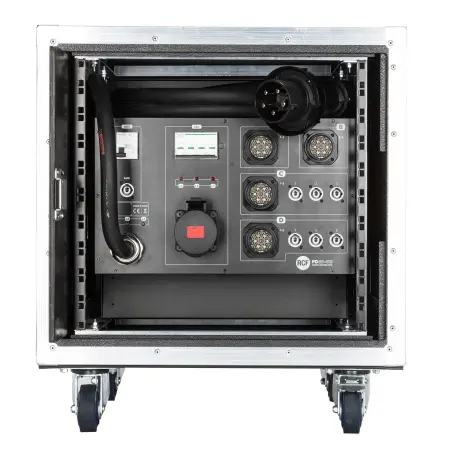

RCF PR 63 is a robust power distribution solution designed for demanding touring applications. Featuring a 63A Cekon input and a wide variety of professional-grade outputs, it ensures reliable and safe power management for large-scale audio and lighting setups. Housed in a durable flight case, it offers the performance and protection required for mobile production environments.
RCF PR 63 Competitive Differences
- 63A Cekon power input with 5-meter (16.4 ft) fixed cable
- 32 Cekon outputs for extensive connectivity
- 4 x LKS 19 outputs and 6 x Powercon outputs + 1 auxiliary Powercon output
- 24 individual RCBOs for maximum output protection and operational continuity
- Front-mounted RCBOs for 32A and auxiliary lines
- Tour-grade flight case construction for rugged environments
RCF PR 63 Description
The
RCF PR 63 is engineered for large-scale live sound and touring systems requiring stable and protected electrical power distribution. At its core is the PD 63 A-419 unit, offering a powerful 63A three-phase input with a rugged 5-meter Cekon cable. Designed to keep your equipment running smoothly and safely, each output is protected by its own RCBO, ensuring that a fault in one circuit doesn’t compromise the entire system.
Ideal for high-demand applications such as concerts, festivals, and broadcast setups, the PR 63’s extensive output array includes 32 Cekon connectors, four LKS 19 outputs, six standard Powercon connections, and one auxiliary Powercon line – commonly used for supporting devices like the CR 16-ND Control Rack. All components are housed in a road-ready flight case for superior durability and transport protection.
PR 63 Features
- 63A Cekon input with 5 m (16.4 ft) cable
- 32 x Cekon outputs
- 4 x LKS 19 outputs
- 6 x Powercon outputs + 1 auxiliary Powercon output
- 24 individual RCBOs for safe and isolated output control
- Front panel RCBOs for 32A and auxiliary lines
- Built-in PD 63 A-419 power distribution system
- Rugged touring-grade flight case for durability and ease of transport
PR 63 Specifications
- Power Input Connector: 63 Ampere Cekon with 5 m (16.4 ft) cable
- Output Connectors: 32 x Cekon, 4 x LKS 19
- Powercon Outputs: 6 + 1 Auxiliary
- Individual RCBOs: 24 outputs protected
- Compliance: CE certified
- Product Weight: 145.06 lbs (65.8 kg)
- Shipping Dimensions (H x W x D): 22.44 x 24.02 x 24.8 in (570 x 610 x 630 mm)
- Shipping Weight: 150.36 lbs (68.2 kg)
- Part Number: 12100006
- EAN: 8024530014001
RCF PR63 Distro
(RCF PR-63 Power Distributor)
