High-Performance 16-Inch Active Touring Subwoofer
The

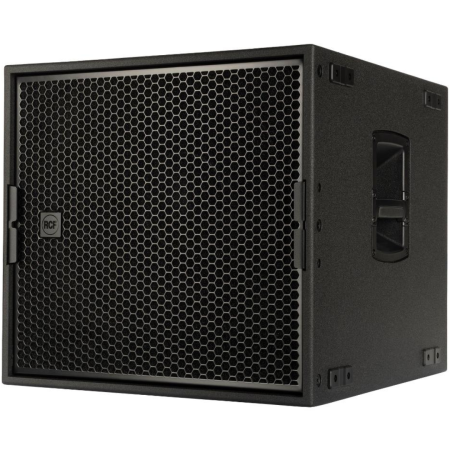

RCF SUB 9016-AS is a compact yet incredibly powerful 16” active subwoofer designed for touring professionals. Featuring a robust 4000W Class-D amplifier and a high-excursion neodymium transducer, this unit delivers up to 137 dB max SPL with tight, impactful low-end reproduction. Its compact footprint and rugged build make it ideal for demanding live sound applications where space, power, and clarity are critical.
RCF SUB 9016-AS Competitive Differences
- High-output 16” neodymium woofer with 4” voice coil
- Up to 137 dB SPL output
- 4000W peak Class-D amplifier for massive headroom
- Advanced RDNet control for EQ, delay, cardioid configuration, and more
- Contactless RDTap configuration—works even when unpowered
- ACE crossover presets for seamless integration with RCF top boxes
- Tour-grade Polyurea-coated plywood cabinet with rain cover included
- Optional detachable front cart for easy transport
- powerCON TRUE1 TOP AC connectors for secure, reliable power
RCF SUB 9016-AS Description
Purpose-built for touring and high-demand professional audio systems, the
SUB 9016-AS combines compact size with powerful bass performance. It features a 16” high-excursion precision transducer capable of moving serious air while maintaining low distortion. Whether paired with line arrays, point-source tops, or used in distributed systems, this subwoofer ensures clear, punchy, and deep bass across all applications.
With RDNet onboard, users can monitor and tune their system in real-time. Its RDTap functionality allows fast configuration without powering on the sub—a game changer for fast-paced setups. Designed to endure harsh conditions, the cabinet is coated in weatherproof Polyurea and includes ergonomic handles and M20 pole mounts for flexible deployment options.
SUB 9016-AS Features
- 137 dB max SPL output
- Frequency response: 30 Hz – 200 Hz
- 16” neodymium woofer with 4” voice coil
- 4000W Class-D peak amplifier
- Thermal and soft limiting protection
- RDTap contactless configuration (powered-off setup)
- RDNet onboard network control for delay, EQ, and cardioid presets
- ACE crossover presets for RCF top speaker matching
- Rain cover for I/O panel included
- Steel grille with weather-resistant cloth backing
- Durable Polyurea-coated plywood cabinet
SUB 9016-AS Specifications
- Frequency Response: 30 Hz – 200 Hz
- Max SPL: 137 dB
- Transducer: 1 x 16" neodymium woofer, 4" voice coil

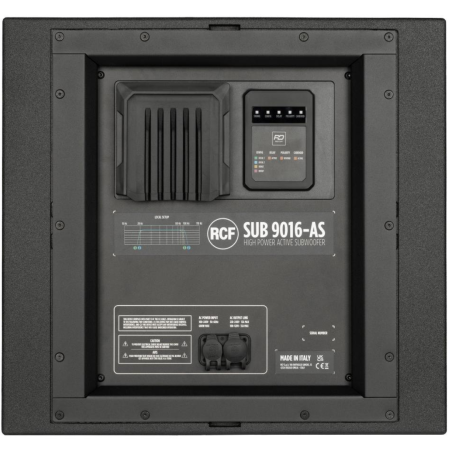

- Input Connectors: XLR, RDNet Ethercon
- Output Connectors: XLR, RDNet Ethercon
- Input Sensitivity: -2 dBu / +4 dBu
- Protections: Thermal
- Limiter: Soft Limiter
- Controls: MUTE, Volume, Presets, RDTap
- Cooling: Convection / Forced
- Power Connections: powerCON TRUE1 TOP IN/OUT
- Cabinet Material: Plywood with Polyurea coating

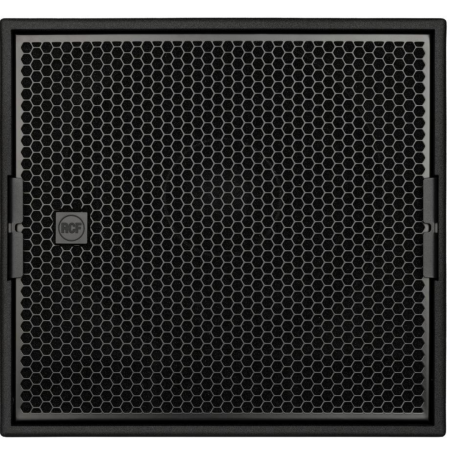

- Grille: Steel with weather-resistant cloth backing

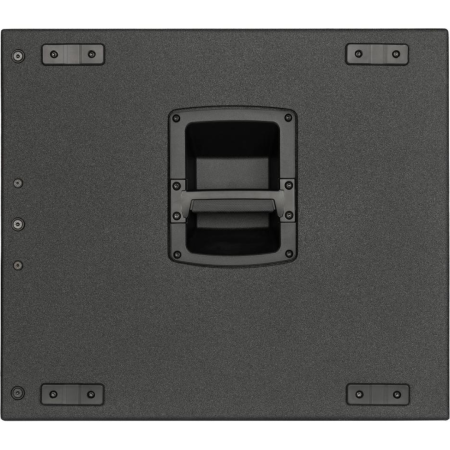

- Handles: 1 per side

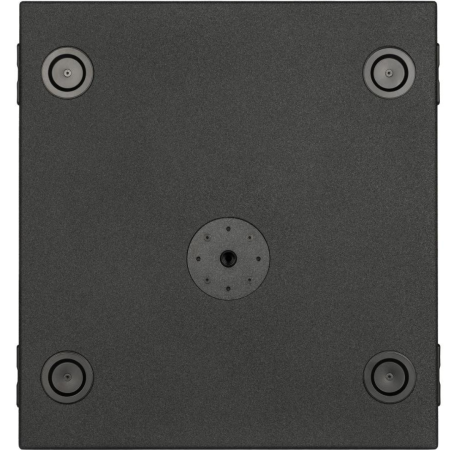

- Pole Mount: 2 x M20 threaded mounts
SUB 9016-AS Dimensions & Weight
- Height: 20.98 in (533 mm)
- Width: 22.44 in (570 mm)
- Depth: 23.62 in (600 mm)
- Weight: 99.21 lbs (45 kg)
Shipping Dimensions
- Package Height: 22.05 in (560 mm)
- Package Width: 23.43 in (595 mm)
- Package Depth: 25.47 in (647 mm)
- Package Weight: 110.23 lbs (50 kg)
RCF SUB 9016-AS
(RCF 13000935)
