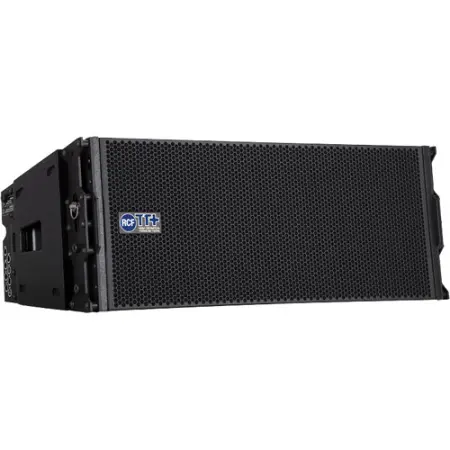

RCF TTL33-A MK2

ACTIVE THREE-WAY LINE ARRAY MODULE

The TTL33-A is a compact, wide dispersion, 3 way active line array module that offers the highest performance from a small size line array.

The incredible high output and dynamics, the extreme accuracy and high frequency extension plus the compact size makes the TTL33-A the ideal tool for outdoor sound reinforcement, live performances and events as well as fixed installations in theatres, concert halls or auditoriums.

Features:

750 W switching amplifiers
wide, constant directivity, coverage angle
6 high power neodymium transducers
High quality analog input board
96 kHz, 32 bit DSP processing
Soft limiter and RMS protection
Maximum output per size available on the market
RDNet on board

Specifications:

ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:60 Hz ÷ 20000 Hz
Max SPL: 135 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 15°
Compression Driver: 3 X 1.0" neo, 37mm voice coil
Midrange:8" neo, 64mm voice coil
Woofer:2 x 8" neo, 64 mm voice coil

INPUT/OUTPUT SECTION
Input signal: Bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: -2 dBu / + 4 dBu

PROCESSOR SECTION
Crossover frequencies: 400 Hz / 1800 Hz
Protections: Thermal, HF
Limiter: RMS, fast limiter
Controls: HF correction, cluster size, HPF

AMPLIFIER SPECIFICATIONS
Total power: 750 W RMS
   High frequencies: D/250 W RMS
   Mid frequencies: D/500 W RMS
   Low frequencies: D/500 W RMS
Cooling: Convection/forced
Connections: Powercon in/out

CABINET
Cabinet Material: Baltic birch
Hardware: Array side fittings
Handles: 2 on side
Colour: Black

PHYSICAL SPECIFICATIONS
Height: 300 / 11.8 mm/inch
Width: 760 / 30.0 mm/inch
Depth: 450 / 18.2 mm/inch
Net Weight: 32.5 / 71.5 kg/lbs

RCF TTL33-A II (RCF TTL33A MK2 )
