Wireless Microphone and In-Ear Monitor Distribution Bundle
The RF Venue C6CPS-D5DFIN is a complete wireless RF package for up to 5 wireless microphone channels and 6 in-ear monitor transmitters. It combines a DISTRO5 HDR and Diversity Fin antenna for microphone reception with a COMBINE6 HDR and CP Stage antenna for IEM transmission, plus the low-loss coaxial cabling and power accessories needed to build an organized touring or installed wireless system.
RF Venue C6CPS-D5DFIN Competitive Differences
- Complete RF solution supports up to 5 wireless microphone receivers and 6 IEM transmitters
- DISTRO5 HDR and COMBINE6 HDR use compact half-rack enclosures that can be mounted together in a single 1RU rack space
- Patented Diversity Fin combines vertically and horizontally polarized antenna elements to help reduce multipath-related wireless microphone dropouts
- CP Stage uses circular polarization and a 120-degree beam pattern for reliable IEM transmission in dynamic stage environments
- CP Stage features a rugged IP44 weather-resistant enclosure suitable for touring and permanent outdoor installations
- COMBINE6 HDR combines as many as 6 IEM transmitter signals onto one antenna, reducing the need for multiple transmitting antennas
- COMBINE6 HDR passive expansion ports allow two units to support up to 12 IEM transmitters in a single 1RU space
- DISTRO5 HDR provides up to 5A of 12V DC power for compatible rack equipment using the included DC Octopus cable
- Included low-loss, double-shielded RF Venue coaxial cables provide the antenna and equipment interconnections needed for both sides of the wireless system
RF Venue C6CPS-D5DFIN Description
The RF Venue C6CPS-D5DFIN brings wireless microphone reception and in-ear monitor transmission together in one coordinated RF package. For the microphone system, the DISTRO5 HDR distributes a single diversity antenna pair to five diversity receiver outputs across the 470–698 MHz range. Its High Dynamic Range architecture is designed to maintain low noise and high linearity across a wide range of incoming RF signal levels.
The included Diversity Fin is a patented polarization-diversity antenna that combines a directional LPDA element with a bidirectional dipole mounted orthogonally to one another. One element receives vertically polarized RF while the other receives horizontally polarized RF, helping maintain signal consistency as handheld microphones and bodypack transmitters change orientation. The included stand-mount bracket and padded cover make the antenna well suited to touring rigs, portable systems, and temporary event installations.
For IEM transmission, the COMBINE6 HDR accepts up to six transmitter RF feeds and combines them into one antenna output. Its HDR circuitry is designed to reduce intermodulation distortion and maintain clean RF performance, while built-in passive expansion connections allow two COMBINE6 HDR units to support up to 12 IEM transmitters through a single antenna system. In the USA and Canada, the COMBINE6 HDR operates from 470–608 MHz, with 470–698 MHz operation for applicable international markets.
The CP Stage provides the transmitting antenna for the IEM system. Its right-hand circularly polarized design, 120-degree beam width, 3 dBi gain at 500 MHz, and broad 470–928 MHz operating range make it suitable for professional stage monitoring systems. The IP44-rated enclosure is built for indoor and outdoor applications and can be mounted to a standard microphone stand, making this bundle especially useful for touring bands, production companies, houses of worship, schools, and venues that need both wireless microphones and IEMs in one compact RF package.
C6CPS-D5DFIN Features
- Complete wireless microphone and IEM RF distribution package
- Supports up to 5 diversity wireless microphone receivers
- Supports up to 6 in-ear monitor transmitters
- DISTRO5 HDR and COMBINE6 HDR use compact half-rack enclosures
- Components can be rack-mounted together in a single 1RU space
- Includes patented Diversity Fin polarization-diversity antenna
- Diversity Fin combines directional LPDA and bidirectional dipole elements
- Receives both vertically and horizontally polarized RF signals
- Diversity Fin operates from 470–698 MHz
- Includes Diversity Fin stand-mount bracket and protective cover
- DISTRO5 HDR distributes 1 diversity antenna pair to 5 diversity receiver output pairs
- DISTRO5 HDR operates from 470–698 MHz
- DISTRO5 HDR provides 12V DC power output up to 5A
- Included DC Octopus cable distributes power to compatible rack equipment
- DISTRO5 HDR can be cascaded for expanded wireless microphone systems
- Includes COMBINE6 HDR 6-channel IEM transmitter combiner
- COMBINE6 HDR combines up to 6 transmitter RF feeds to a single antenna output
- High Dynamic Range design helps reduce intermodulation distortion
- Passive RF expansion input and output connections support cascading
- Two COMBINE6 HDR units can support up to 12 IEM transmitters in 1RU
- Includes CP Stage circularly polarized antenna
- CP Stage operates from 470–928 MHz
- 120-degree CP Stage beam width
- Right-hand circular polarization
- IP44-rated weather-resistant CP Stage enclosure
- CP Stage supports standard microphone stand mounting
- Includes separate low-loss antenna and BNC interconnect cabling for microphone and IEM systems
C6CPS-D5DFIN Specifications
- Bundle Capacity: Up to 5 wireless microphone receivers and 6 IEM transmitters
- Rack Configuration: DISTRO5 HDR and COMBINE6 HDR are each half-rack width and can mount together in 1RU
- DISTRO5 HDR Frequency Range: 470–698 MHz
- DISTRO5 HDR RF Inputs: 1 diversity pair, BNC
- DISTRO5 HDR RF Outputs: 5 diversity pairs, BNC
- DISTRO5 HDR Impedance: 50 ohms
- DISTRO5 HDR AC Power: 100–240 VAC, 50/60 Hz, 2A
- DISTRO5 HDR Optional DC Input: 12V DC, 250mA
- DISTRO5 HDR DC Output: 12V DC, 5A
- DISTRO5 HDR DC Output Connector: Anderson Powerpole
- DISTRO5 HDR Dimensions: 8.80 x 8.25 x 1.75 in (223.5 x 210 x 44.5 mm)
- DISTRO5 HDR Weight: 3.7 lb (1.7 kg)
- Diversity Fin Operating Frequency: 470–698 MHz
- Diversity Fin Bandwidth: 228 MHz
- Diversity Fin Impedance: 50 ohms
- Diversity Fin LPDA Beam Width: 140° azimuth
- Diversity Fin LPDA Gain: 5 dBd
- Diversity Fin Dipole Beam Width: 100° azimuth
- Diversity Fin Dipole Gain: 1.8 dBd
- Diversity Fin Connectors: (2) BNC female
- Diversity Fin Dimensions: 12 x 14.6 in (300 x 370 mm)
- Diversity Fin Weight: 1 lb (454 g)
- COMBINE6 HDR Frequency Range, USA/Canada: 470–608 MHz
- COMBINE6 HDR Frequency Range, International: 470–698 MHz
- COMBINE6 HDR RF Inputs: (6) BNC
- COMBINE6 HDR Antenna Outputs: (1) BNC
- COMBINE6 HDR Maximum Input Power: 60mW (+18 dBm) per port
- COMBINE6 HDR Input Port Isolation: 50 dB typical
- COMBINE6 HDR Signal Overload Threshold: +17 dBm typical
- COMBINE6 HDR Passive Circuit Loss: 4 dB typical
- COMBINE6 HDR DC Input: 12V DC, 3A
- COMBINE6 HDR Power Supply: External, 100–240 VAC, 50/60 Hz, 1A
- COMBINE6 HDR Dimensions: 8.80 x 8.25 x 1.75 in (223.5 x 210 x 44.5 mm)
- COMBINE6 HDR Weight: 3.56 lb (1.6 kg)
- CP Stage Operating Frequency: 470–928 MHz
- CP Stage Bandwidth: 458 MHz
- CP Stage Impedance: 50 ohms
- CP Stage Pattern: Hypercardioid
- CP Stage Polarization: RHCP
- CP Stage Beam Width: 120°
- CP Stage Gain: 3 dBi at 500 MHz
- CP Stage Connector: BNC female
- CP Stage IP Rating: IP44
- CP Stage Mounting Interface: 5/8-27 and 3/8-16
- CP Stage Dimensions: 10 x 12 x 1 in (248 x 306 x 27 mm)
- CP Stage Weight: 2 lb (0.9 kg)
- CP Stage Operating Temperature: 14 to 104°F (-10 to 40°C)
- CP Stage Color: Matte Black

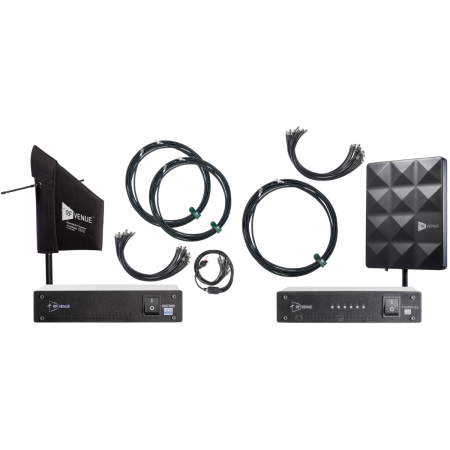

What's In The Box
- (1) DISTRO5 HDR Antenna Distribution System
- (1) IEC Power Cord for DISTRO5 HDR
- (1) Set of DISTRO5 HDR Short and Long Rack Ears
- (1) DISTRO5 HDR Half-Rack Connecting Plate and Mounting Hardware Kit
- (1) DC-OCTOPUS-CABLE
- (1) Diversity Fin Antenna
- (1) Diversity Fin Stand-Mount Bracket
- (1) Diversity Fin Padded Cover
- (2) 25 ft RF Venue Low Loss Antenna Cables for the Wireless Microphone System
- (1) 10-Pack of 1.5 ft RF Venue Low Loss BNC Interconnect Cables for the Wireless Microphone System
- (1) COMBINE6 HDR IEM Transmitter Combiner
- (1) 12V 40W COMBINE6 HDR Power Supply
- (1) IEC Power Cord for COMBINE6 HDR
- (1) Set of COMBINE6 HDR Short and Long Rack Ears
- (1) COMBINE6 HDR Half-Rack Connecting Plate and Mounting Hardware Kit
- (1) CP Stage Antenna
- (1) 25 ft RF Venue Low Loss Antenna Cable for the IEM System
- (1) 10-Pack of 1.5 ft RF Venue Low Loss BNC Interconnect Cables for the IEM System
