RF Venue COMB6CP-ARC | 6-Channel IEM Combiner with...
$2,349.00

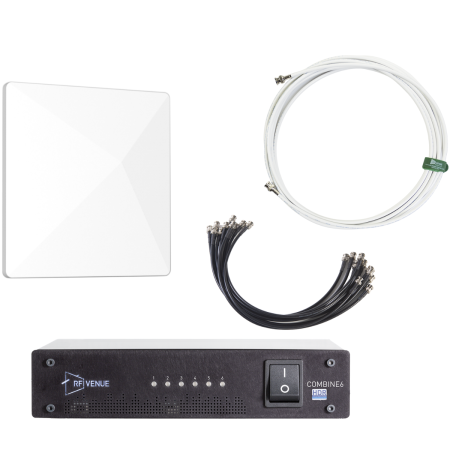

The RF Venue COMB6CP ARC is a six-channel IEM transmitter combining package designed for permanent installations that need reliable RF performance with a discreet architectural antenna. It combines the half-rack COMBINE6 HDR with a white CP Architectural Antenna, a 25 ft low-loss antenna cable, and ten 1.5 ft BNC interconnect cables for a streamlined multi-channel IEM system.
The RF Venue COMB6CP ARC is built for houses of worship, theaters, auditoriums, schools, performance spaces, and other installed venues operating multiple wireless in-ear monitor channels. The COMBINE6 HDR combines as many as six transmitter outputs into one antenna feed, replacing an antenna farm with a centralized RF transmission system.
The COMBINE6 HDR uses RF Venue's High Dynamic Range architecture to provide lower noise and greater linear headroom in demanding multi-channel IEM systems. Six BNC transmitter inputs feed a single antenna output, while approximately 50 dB of typical input-port isolation helps separate connected transmitters. The compact half-rack enclosure can be mounted by itself or paired with another compatible half-rack device using the included rack hardware.
A built-in passive expansion circuit makes the system especially useful for growing IEM installations. A second COMBINE6 HDR can be connected to create a 12-channel combining system that occupies a single 1RU rack space, allowing venues to expand without replacing the original combiner.
The included CP Architectural Antenna operates from 470–928 MHz and uses a right-hand circularly polarized hypercardioid pattern with a 120-degree beam width. Its slim 11 x 11 x 2 in enclosure can be mounted on a wall or ceiling in any orientation and painted to coordinate with the surrounding interior, making it well suited for permanent installations where both RF performance and appearance matter.
| Beam Angle | 120 Degrees degrees |
| Connectivity Protocols | 6 x BNC RF transmitter inputs, 1 x BNC antenna output |
| Frequency Response | 470–608 MHz MHz |
| Impedance | 50 Ohms Ohms |
| Power Consumption | 12V DC, 3A watts |
| Voltage Range | 100–240 VAC, 50/60 Hz volts |
| Brand | RF Venue |
| Name | RF Venue COMB6CP-ARC | 6-Channel IEM Combiner with White CP Architectural Antenna | Half-Rack |
| Primary Category | In-Ear Monitor Antenna Combiner |
| Build Material | Matte White |
| Dimensions | 8.8 x 8.25 x 1.75 in inches |
| Included Accessories | White CP Architectural Antenna, 25 ft low-loss antenna cable, ten 1.5 ft low-loss BNC interconnect cables, 12V 40W power supply, IEC power cable, rack ears, half-rack connecting plate, mounting hardware |
| Mounting Options | Wall or ceiling |
| Weight | 3.56 lb lb |
| Channels | 6 |
