Antenna Distribution System
The
RF Venue DISTRO9 HDR is a high-performance, 9-channel multi-zone antenna distribution system designed for professional wireless microphone setups. With low-noise circuitry, dual-zone antenna inputs, and advanced signal processing, it ensures clean and stable RF performance across large venues or multi-room installations.
RF Venue DISTRO9 HDR Competitive Differences
- Distributes signal to up to 9 wireless microphone receivers in 1RU
- Dual-zone coverage with DC power for in-line amps or active antennas
RF Venue DISTRO9 HDR Description
The
RF Venue DISTRO9 HDR sets a new standard for RF distribution by replacing traditional splitters with a proprietary “divide-by-three” circuit, delivering ultra-clean RF outputs with minimal noise. Designed to streamline complex wireless microphone installations, this unit provides 9 diversity channels from two antenna zones—all within a single rack space.
Each output maintains exceptional signal integrity thanks to low-noise amplifiers and carefully optimized gain structure, offering high dynamic range across VHF, T-Band, and UHF frequencies. The two antenna zones allow flexible coverage across large venues, campuses, or multiple rooms, each with DC power to support active antennas or inline amplifiers.
Uniquely, any output on the DISTRO9 HDR can be used to cascade another unit, removing the need for dedicated cascade ports. This expands system capacity up to 17 channels using just 2RU. With an internal power supply and optional DC cable kit, it can also power wireless receivers and be used with DC battery sources for mobile sound cart configurations.
The built-in I/O platform prepares the DISTRO9 HDR for future upgrades like remote spectrum monitoring or integrated filtering, making it a long-term investment for AV integrators and RF professionals.
Model Features
- 9 channels of diversity wireless support
- Two RF input zones with diversity (2x2)
- DC power outputs for active antennas or amps
- Cascade output flexibility—no dedicated ports needed
- Flat gain performance across VHF, T-Band, and UHF
- Internal I/O section for future module expansion
- ETL Listed for commercial and government installations
Model Specifications
- Max Outputs: 9 diversity channels (18 RF outputs)
- Zones: 2 zones with diversity RF inputs (4 total)
- Power Supply: Internal, with optional DC battery input
- Dimensions: 1RU standard rackmount
- UPC: 602573615225
What's In The Box
- RF Venue DISTRO9 HDR main unit
- Power cable
- Rackmount hardware

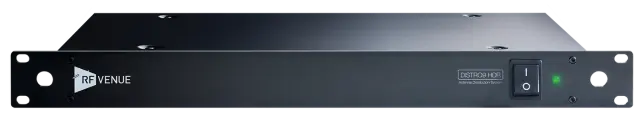

RF Venue Distro9 HDR Multi-Zone Antenna Distribution System
(RF Venue Distro 9HDR)
