Professional 2-Channel UHF Wireless Beltpack
The

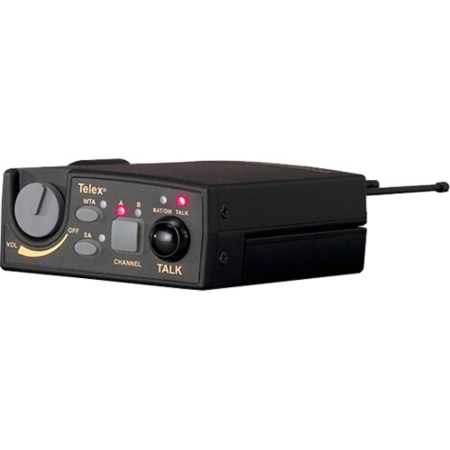

RTS TR-800-E88R5 is a rugged, frequency-agile, 2-channel UHF wireless beltpack designed for seamless use with the RTS BTR-800 base station. Built with a durable cast magnesium housing, this beltpack provides reliable full-duplex communication for broadcast, theater, live productions, and event professionals.
RTS TR-800-E88R5 Competitive Differences
- Compatible with RTS BTR-800 base stations for professional intercom setups
- UHF wireless operation across 470–608 MHz and 614–740 MHz frequency bands
- Rugged all-metal cast magnesium case for durability in demanding environments
- Enhanced ClearScan technology for interference-free frequency selection
- LCD-based graphical user interface for intuitive operation
- Wireless Talk Around (WTA) and Stage Announce (SA) functions built-in
- Auto-sensing headset connector supports electret and dynamic mics
- Replaceable screw-on antennas for both TX and RX
RTS TR-800-E88R5 Description
The
RTS TR-800-E88R5 beltpack delivers professional-grade wireless intercom performance in a compact and durable design. As part of the BTR-800 system, it offers 2-channel full-duplex communication with independent volume controls for clear and reliable team coordination.
Designed with convenience and flexibility in mind, the TR-800 includes an LCD graphical interface for easy configuration and monitoring. Operators can quickly activate Wireless Talk Around (ISO) or Stage Announce features, providing direct communication options when needed.
The rugged cast magnesium housing makes the unit both lightweight and durable, while the detachable screw-on antennas enhance portability and field serviceability. Its auto-sensing headset connector accommodates both electret and dynamic microphones, ensuring compatibility with a wide range of professional headsets.
Powered by six standard AA batteries (alkaline or NiMH), the TR-800-E88R5 provides dependable wireless communication with RTS’s Enhanced ClearScan technology, ensuring optimal frequency selection even in crowded RF environments.
TR-800-E88R5 Features
- 2-channel UHF wireless intercom beltpack
- Full compatibility with RTS BTR-800 base stations
- Durable cast magnesium case
- On/Off and independent volume control
- Wireless Talk Around (WTA) and Stage Announce (SA) activation
- LCD-based graphical user interface
- Talk light, talk button, and battery/overmod indicators
- Auto-sensing headset connector for electret/dynamic microphones
- ¼-wave screw-on replaceable antennas (TX and RX)
- Enhanced ClearScan for frequency agility
TR-800-E88R5 Specifications
- Form Factor: Beltpack
- Power Requirements: 6x AA alkaline (NiMH optional)
- Frequency Range: 470–608 MHz, 614–740 MHz (18 MHz TX/RX bands)
- Modulation: FM, dual conversion superheterodyne
- Channels: 712 selectable
- Frequency Response: 300 Hz–8 kHz
- Squelch Quieting: 90 dB
- Distortion: < 1% (at full deviation)
- RF Sensitivity: < 0.7 µV (12 dB SINAD)
- RF Frequency Stability: 0.005%
- Squelch Threshold: 20 dB (about 1.0 µV)
- IF Selectivity: 3 dB (at 230 kHz)
- Image Rejection: ≥ 70 dB
- Headset Output: 40 mW into 600 Ω (1% distortion)
- Operating Current Draw: 140 mA (PTT, Talk On)
- Storage Temperature: -4° F to 130° F (-20° C to 55° C)
- Antenna: ¼ wave, screw-type, replaceable (TX and RX)
- FCC ID: B5DM518 (470–608 MHz TX), B5DM515 (614–746 MHz TX)
RTS TR-800-E88R5
(Electro-Voice TR-800E88R5)
