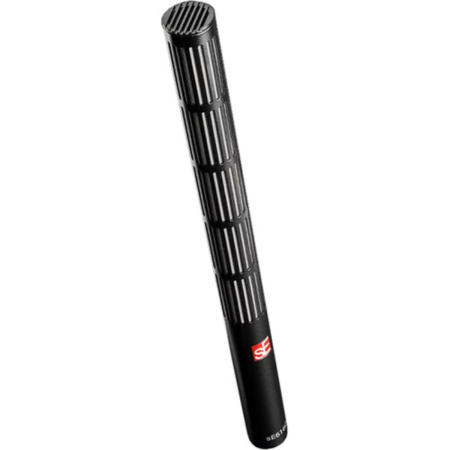

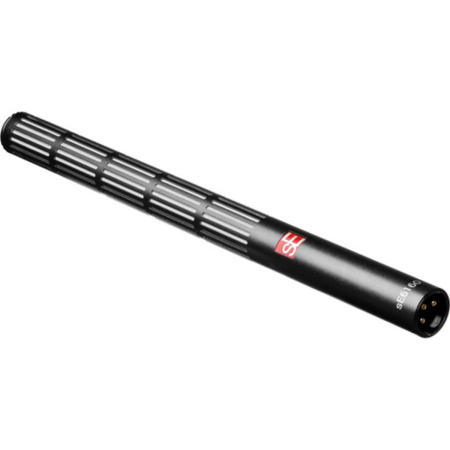

sE Electronics sE6160 Pair

Matched Pair Shotgun Condenser Microphones

The sE Electronics sE6160 Pair is a factory-matched set of compact true-condenser shotgun microphones designed for focused sound capture in live sound, broadcast, video production, orchestral recording, and stereo applications. Their highly directional supercardioid/lobar pickup pattern provides strong off-axis rejection and high gain before feedback while maintaining clear, natural sound.

sE Electronics sE6160 Pair Competitive Differences

• Factory-matched pair provides consistent response for stereo recording and audience miking
• Handcrafted small-diaphragm true-condenser capsules with gold-sputtered diaphragms
• Supercardioid/lobar shotgun pattern provides focused pickup and strong off-axis rejection
• Handles up to 157 dB SPL with the 20 dB attenuation pad engaged
• Switchable 10 dB and 20 dB attenuation pads accommodate loud sound sources
• Switchable 80 Hz and 160 Hz low-cut filters help control rumble, footfall noise, and proximity effect
• Transformerless, low-noise electronics provide a clean and transparent signal path
• Roadworthy all-metal die-cast construction is designed for demanding live and production environments

sE Electronics sE6160 Pair Description

The sE Electronics sE6160 Pair combines two factory-matched shotgun microphones for applications where consistent directional pickup is essential. The handcrafted true-condenser capsules use gold-sputtered diaphragms and are engineered to deliver clear, uncolored sound across a 20 Hz to 20 kHz frequency range.

Each microphone uses a tightly controlled supercardioid/lobar pickup pattern to focus on the desired source while reducing unwanted off-axis sound. This makes the pair especially useful for live IEM crowd microphones, concert recording, on-set dialogue, broadcast applications, orchestral spot miking, percussion, drum overheads, and stereo recording setups.

Integrated controls provide added flexibility for changing sound-pressure levels and environments. A switchable attenuation pad offers 10 dB or 20 dB of signal reduction, increasing maximum SPL handling from 137 dB to as much as 157 dB. The switchable 80 Hz and 160 Hz low-cut filter can reduce rumble, footfall noise, and excessive low-frequency energy while helping compensate for proximity effect.

The microphones are housed in durable all-metal die-cast bodies for reliable use on stage, in studios, and on location. Each sE6160 operates from standard 48V phantom power and connects through a 3-pin male XLR output, while the matched-pair package includes clips, thread adapters, windscreens, and a soft carrying case.

sE6160 Pair Features

• Factory-matched pair of compact shotgun microphones
• Handcrafted small-diaphragm true-condenser capsules
• Gold-sputtered diaphragms
• Supercardioid/lobar polar pattern
• High gain before feedback
• Strong off-axis sound rejection
• 20 Hz to 20 kHz frequency response
• 10 dB and 20 dB switchable attenuation pads
• 80 Hz and 160 Hz switchable low-cut filters
• Transformerless output design
• Low-noise electronics
• Roadworthy all-metal die-cast housing
• 3-pin male XLR output
• 48V phantom powered
• Designed for IEM crowd miking, broadcast, video shoots, orchestral spot miking, and stereo recording

sE6160 Pair Specifications

• Microphone Type: Shotgun condenser
• Capsule: Handcrafted small-diaphragm true-condenser
• Polar Pattern: Supercardioid / Lobar
• Frequency Response: 20 Hz to 20 kHz
• Sensitivity: 25 mV/Pa (-32 dBV)
• Maximum SPL: 137 dB SPL at 0.5% THD, 0 dB pad
• Maximum SPL with 10 dB Pad: 147 dB SPL at 0.5% THD
• Maximum SPL with 20 dB Pad: 157 dB SPL at 0.5% THD
• Dynamic Range: 124 dB at 0 dB pad, 134 dB at 10 dB pad, 144 dB at 20 dB pad
• Equivalent Noise Level: 13 dB(A)
• Signal-to-Noise Ratio: 81 dB
• Low-Cut Filter: 80 Hz / 160 Hz, 6 dB/octave, switchable
• Attenuation Pad: 10 dB / 20 dB, switchable
• Electrical Impedance: 110 ohms
• Recommended Load Impedance: Greater than 1k ohms
• Power Requirement: 48V phantom power
• Current Consumption: 2.6 mA
• Output Connector: 3-pin male XLR
• Dimensions per Microphone: 0.77 x 9.84 in (19.6 x 250 mm), diameter x length
• Weight per Microphone: 3.88 oz (110 g)

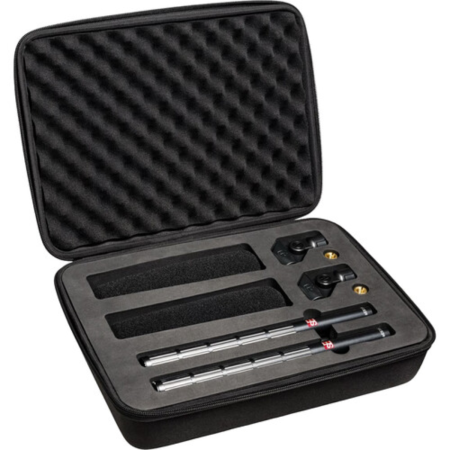

What's In The Box

• Two sE6160 microphones

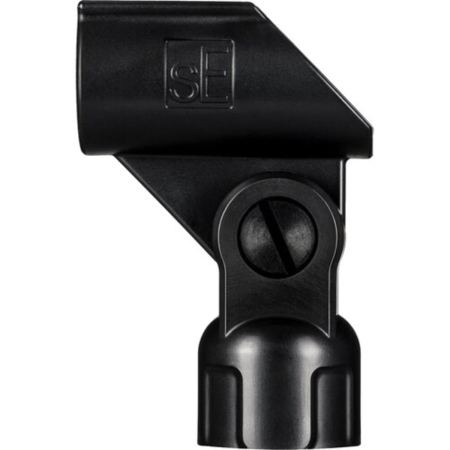

• Two microphone clips with thread adapters

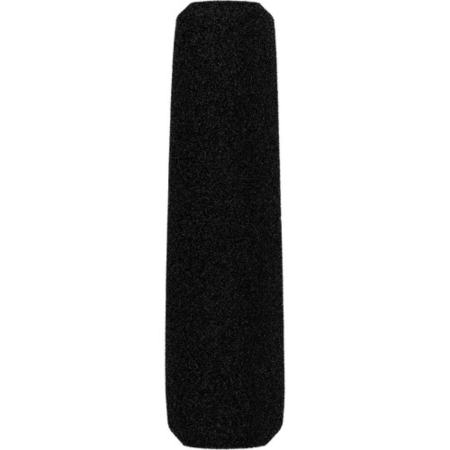

• Two windscreens
• Soft carrying case

sE Electronics sE6160(P) (sE Electronics sE6160pair)
