sE Electronics sE8 Cardioid Capsule

Cardioid Condenser Microphone Capsule

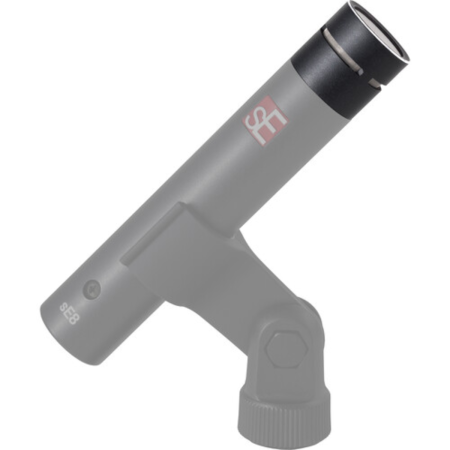

The sE Electronics sE8 Cardioid Capsule is a hand-crafted 1/2-inch true condenser capsule designed for use with the sE8 microphone body. Its cardioid polar pattern provides focused pickup with reduced sound from the rear, while an ultra-thin gold-sputtered diaphragm and precision electrode design deliver fast transient response, natural tonality, and consistent off-axis performance.

sE Electronics sE8 Cardioid Capsule Competitive Differences

• Hand-crafted 1/2-inch true condenser capsule designed specifically for the sE8 microphone platform
• Cardioid polar pattern provides focused front pickup with useful rejection of sound arriving from behind the microphone
• Ultra-thin 3-micron gold-sputtered diaphragm provides fast transient response for percussion, cymbals, and detailed acoustic sources
• Precision backplate and electrode design is optimized for linear response and natural sound reproduction
• Low 13 dBA equivalent noise level makes it suitable for quiet instruments, ensembles, and distant microphone placement
• Supports up to 159 dB SPL when used with an sE8 body and its -20 dB attenuation pad
• Interchangeable design allows an existing sE8 microphone body to be configured with a cardioid pickup pattern

sE Electronics sE8 Cardioid Capsule Description

The sE Electronics sE8 Cardioid Capsule brings the original focused pickup pattern of the sE8 pencil condenser to compatible sE8 microphone bodies. Its true condenser design uses an ultra-thin gold-sputtered diaphragm and precision-engineered backplate to capture transients and subtle tonal details with a smooth, balanced response.

The cardioid polar pattern emphasizes sound arriving from the front while reducing pickup from the rear. This makes the capsule well suited for applications where source isolation and control of room sound or nearby instruments are important, including acoustic guitar, piano, drums, cymbals, percussion, woodwinds, strings, vocals, and ensemble recording.

When installed on an sE8 microphone body, the capsule provides a 20 Hz-20 kHz frequency range, 25 mV/Pa sensitivity, and a low 13 dBA equivalent noise level. The sE8 body's selectable attenuation settings allow maximum SPL handling of 139 dB, 149 dB, or 159 dB with the 0, -10, or -20 dB pad settings respectively.

The interchangeable design also retains access to the sE8 body's selectable 80 Hz and 160 Hz low-cut filters and -10 dB / -20 dB attenuation pads. This allows users to configure the microphone for quieter acoustic material or high-output sources without changing the capsule.

sE8 Cardioid Capsule Features

• Designed for the sE Electronics sE8 microphone body
• Hand-crafted 1/2-inch true condenser capsule
• Cardioid polar pattern
• Ultra-thin 3-micron gold-sputtered diaphragm
• Precision electrode and backplate design
• Natural and balanced frequency response
• Fast transient response
• Consistent off-axis response
• 20 Hz-20 kHz frequency range when installed on an sE8 body
• 13 dBA equivalent noise level
• Up to 159 dB SPL handling with the sE8 body's -20 dB pad engaged
• Compatible with the sE8 body's 80 Hz and 160 Hz low-cut filters
• Compatible with the sE8 body's -10 dB and -20 dB attenuation pads
• Suitable for acoustic guitar, piano, strings, woodwinds, vocals, drums, percussion, cymbals, overheads, choirs, and ensembles

sE8 Cardioid Capsule Specifications

• Compatibility: sE Electronics sE8 Microphone Body
• Capsule Type: Hand-Crafted 1/2 in True Condenser
• Polar Pattern: Cardioid
• Frequency Range: 20 Hz-20 kHz with sE8 Body
• Sensitivity: 25 mV/Pa (-32 dBV) with sE8 Body
• Maximum SPL: 139 dB with 0 dB Pad
• Maximum SPL: 149 dB with -10 dB Pad
• Maximum SPL: 159 dB with -20 dB Pad
• Equivalent Noise Level: 13 dBA
• Dynamic Range: 126 / 136 / 146 dB with 0 / -10 / -20 dB Attenuation
• Signal-to-Noise Ratio: 81 dB
• Compatible Low-Cut Filters: 80 Hz / 160 Hz, 6 dB/Octave via sE8 Body
• Compatible Attenuation Pads: -10 dB / -20 dB via sE8 Body
• Power Requirement: 48V Phantom Power through sE8 Body
• Mounting: Screw-On Capsule Connection
• Color: Black

What's In The Box

• sE Electronics sE8 Cardioid Capsule

sE Electronics sE8 C C (sE Electronics sE8-C-C)
