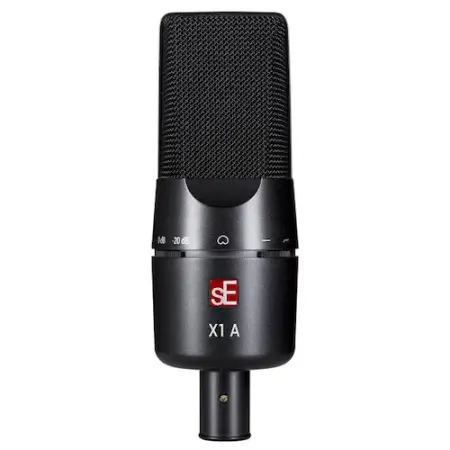

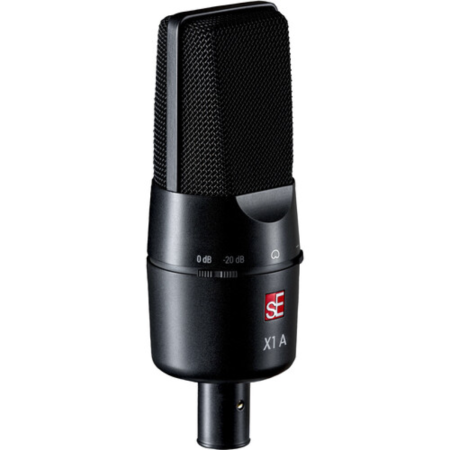

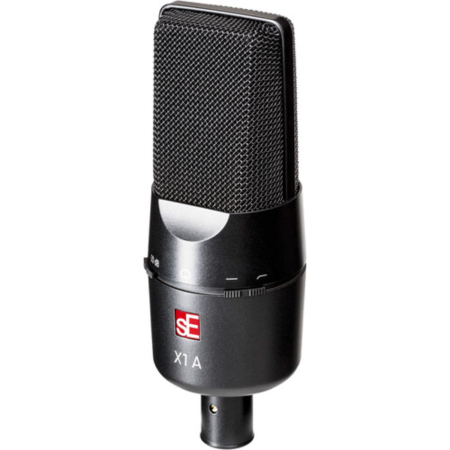

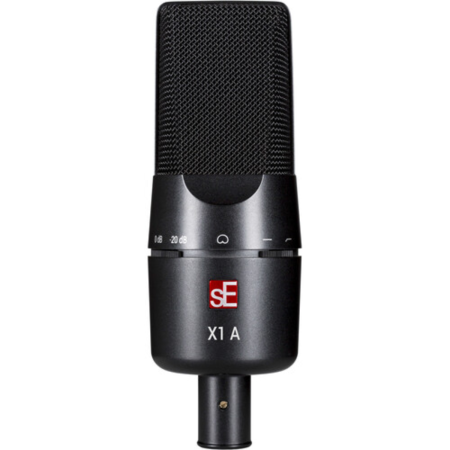

sE Electronics X1 A

Cardioid Condenser Microphone

The sE Electronics X1 A is a versatile electret condenser microphone built for vocals, acoustic instruments, guitar amplifiers, percussion, and general recording applications. Its 2/3-inch cardioid capsule combines a wide 20 Hz to 20 kHz frequency response with low self-noise, high SPL handling, a switchable -20dB pad, and a 100Hz low-cut filter for flexible use in home, project, and professional studios.

sE Electronics X1 A Competitive Differences

• 2/3-inch electret condenser capsule provides detailed full-range capture for vocals and instruments
• Switchable -20dB attenuation pad increases maximum SPL handling from 130dB to 150dB
• 100Hz low-cut filter helps reduce rumble, foot noise, proximity effect, and unwanted low-frequency buildup
• 16dBA self-noise supports clean recording of quieter sources
• All-metal chassis provides durability while helping shield the microphone from electrical interference
• Integrated windscreen adds protection against unwanted air movement and plosive noise
• Gold-plated XLR connection provides a durable and reliable balanced audio connection

sE Electronics X1 A Description

The sE Electronics X1 A is designed as an adaptable condenser microphone for engineers, musicians, content creators, and home-studio users who need one microphone capable of handling a broad range of sources. Its permanently biased 2/3-inch electret condenser capsule uses a cardioid pickup pattern to focus on sound arriving from the front while reducing pickup from the rear.

With a frequency response of 20 Hz to 20 kHz, the X1 A is suitable for vocals, acoustic guitars, percussion, amplified instruments, brass, and other full-range sources. Its 16dBA equivalent noise level helps preserve detail when recording quieter material, while a maximum SPL of 130dB without attenuation provides substantial headroom for louder instruments.

Engaging the -20dB pad extends maximum SPL handling to 150dB, making the microphone useful for close-miking high-output sources such as guitar cabinets, drums, and brass instruments. A switchable 100Hz low-cut filter with a 6dB-per-octave slope helps remove low-frequency rumble and can reduce excessive bass caused by close-miking proximity effect.

The microphone is housed in a rugged all-metal body with an integrated windscreen and gold-plated 3-pin XLR output. It operates from standard 48V phantom power and includes a microphone clip and thread adapter for mounting to common microphone stands.

X1 A Features

• 2/3-inch electret condenser capsule
• Cardioid polar pattern
• 20 Hz to 20 kHz frequency response
• 16dBA equivalent self-noise
• 130dB maximum SPL without pad
• 150dB maximum SPL with -20dB pad engaged

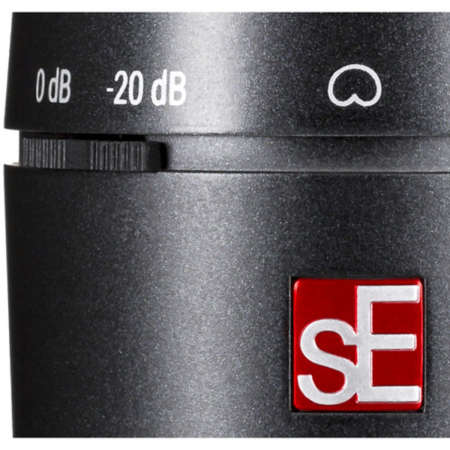

• Switchable -20dB attenuation pad

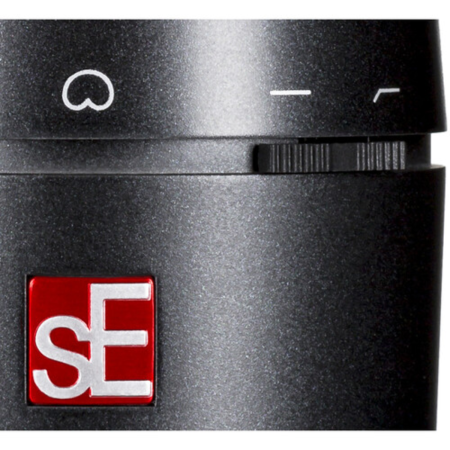

• Switchable 100Hz low-cut filter
• 100Hz filter provides a 6dB/octave slope
• Integrated windscreen
• All-metal chassis
• Gold-plated XLR connector
• Side-address design
• 48V phantom powered
• Includes microphone clip and thread adapter

X1 A Specifications

• Element Type: Electret condenser
• Capsule Size: 0.67 in (17.02 mm)
• Polar Pattern: Cardioid
• Orientation: Side address
• Frequency Response: 20 Hz - 20 kHz
• Maximum SPL: 130dB at 1 kHz, 0.5% THD without pad
• Maximum SPL with Pad: 150dB at 1 kHz, 0.5% THD with -20dB pad
• Dynamic Range: 114dB without pad
• Dynamic Range with Pad: 134dB
• Equivalent Noise Level: 16dBA
• Attenuation Pad: -20dB, switchable
• Low-Cut Filter: 100Hz, 6dB/octave
• Output Connector: 1x 3-pin male XLR
• Power Requirement: 48V phantom power
• Mounting Thread: 5/8"-27 female with 3/8"-16 adapter
• Dimensions: 2.28 in diameter x 6.65 in long (57.9 x 168.9 mm)
• Weight: 13.8 oz (391.2 g)
• Color: Black

What's In The Box

• sE Electronics X1 A condenser microphone

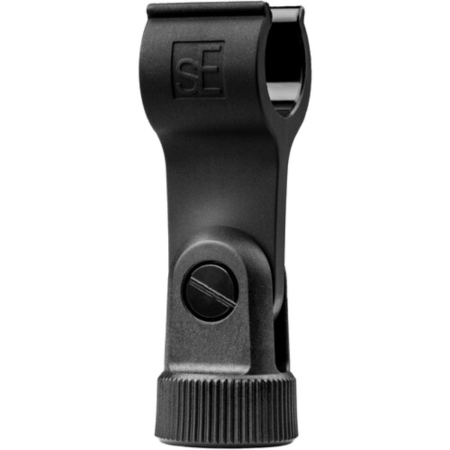

• Microphone clip
• Thread adapter

SE Electromics X1A (sE Electronics X1-A-U)
