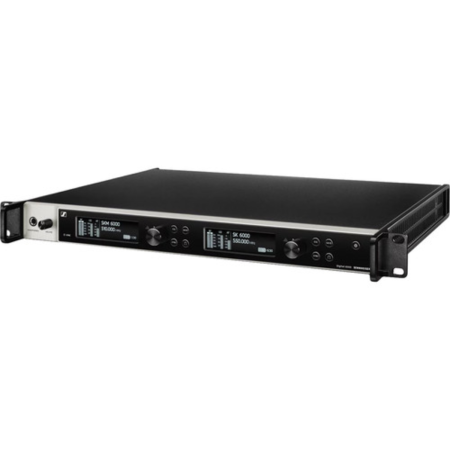

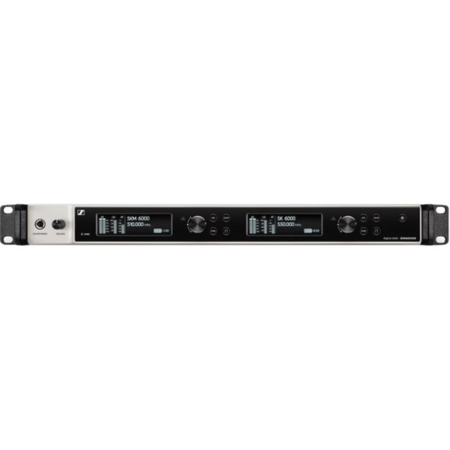

Sennheiser EM 6000 DANTE

Digital Wireless Receiver

Sennheiser EM 6000 DANTE is a 2-channel Digital 6000 rackmount wireless receiver built for high-end live production, broadcast, theater, corporate, worship, and installation environments. With Dante digital audio, true-bit diversity reception, AES-256 encryption, and an ultrawide 244 MHz tuning range, it provides dependable wireless performance for complex RF applications.

Sennheiser EM 6000 DANTE Competitive Differences

• 2-channel Digital 6000 receiver with integrated Dante networking via Audinate Brooklyn II card
• Ultrawide 244 MHz tuning range from 470 to 714 MHz for flexible frequency coordination
• True-bit diversity reception with error correction and audio error masking for dropout protection
• Intermodulation-free operation with equidistant frequency grid for dense multichannel setups
• AES-256 encryption for secure wireless transmission in corporate, broadcast, and sensitive installations
• Integrated active antenna splitter allows daisy-chaining up to eight receiver units from one antenna pair

Sennheiser EM 6000 DANTE Description

The Sennheiser EM 6000 DANTE is engineered for mission-critical wireless audio where reliability, sound quality, and system flexibility are essential. It supports two digital audio channels in a compact 1U rackmount chassis and is ideal for rental companies, touring rigs, theaters, houses of worship, broadcast facilities, and large corporate systems.

Digital 6000 technology delivers transparent 24-bit/96 kHz audio with a 30 Hz to 20 kHz frequency response, 111 dB dynamic range, and low 3 ms latency. Its true-bit diversity reception analyzes each bit across parallel reception streams, while error correction and audio error masking help prevent RF issues from becoming audible.

The receiver includes Dante network audio, AES3 digital output, transformer-balanced analog XLR and 1/4" outputs, word clock input and output, and headphone monitoring for one or both channels. An Ethernet control port allows remote configuration and monitoring through Sennheiser Wireless Systems Manager software.

For large-scale wireless deployments, the Sennheiser EM 6000 DANTE offers automatic frequency setup, OLED displays, transmitter parameter sync via infrared, and an integrated active antenna splitter for cascading up to eight units without additional antenna distribution hardware. It is compatible with SK 6000, SK 6212, SKM 6000, SK 9000, and SKM 9000 transmitters operating in compatible modes.

EM 6000 DANTE Features

• 2-channel Digital 6000 wireless receiver
• Integrated Dante networking with 2 RJ45 Dante ports
• Digital UHF wireless operation
• 244 MHz switching bandwidth
• RF frequency range from 470 to 714 MHz
• True-bit diversity reception
• Intermodulation-free operation with equidistant frequency grid
• AES-256 encryption for secure transmission
• Active antenna splitter for daisy-chaining up to eight receivers
• 24-bit/96 kHz digital audio processing
• 30 Hz to 20 kHz frequency response
• 111 dB dynamic range
• 3 ms latency
• OLED displays for high-contrast system monitoring
• Automatic frequency setup and smart menu navigation
• Wireless Systems Manager software control via Ethernet
• Analog XLR and 1/4" balanced outputs
• AES3 digital output
• Word clock input and output
• Headphone monitoring output with volume control
• Compatible with SK 6000, SK 6212, SKM 6000, SK 9000, and SKM 9000 transmitters in supported modes

EM 6000 DANTE Specifications

• Wireless Technology: Digital UHF
• Receiver Type: 1U rackmount receiver
• Number of Audio Channels: 2
• RF Frequency Band: 470 to 714 MHz
• Switching Bandwidth: 244 MHz
• Diversity: True-bit diversity
• Max Operating Range: 300 ft / 91.4 m typical
• Latency: 3 ms
• Encryption: AES-256
• Frequency Response: 30 Hz to 20 kHz
• Dynamic Range: 111 dB
• Audio Outputs: 2 x XLR 3-pin balanced outputs
• Audio Outputs: 2 x 1/4 in TRS balanced outputs
• Digital Output: 1 x XLR 3-pin AES3 output
• Headphone Output: 1 x 1/4 in TRS headphone output
• Network I/O: 1 x RJ45 Ethernet port
• Dante I/O: 2 x RJ45 Dante ports
• Word Clock I/O: 1 x BNC input, 1 x BNC output
• Antenna Inputs: 2 x removable rear-mounted BNC external antennas
• Gain Range: -10 to +18 dB in 1 dB steps
• Display: OLED
• Power Requirements: 100 to 240 VAC, 50/60 Hz
• Included Transmitters: No transmitters included
• Microphone Included: No
• Dimensions: 19 x 14.7 x 1.7 in / 483 x 373 x 44 mm
• Weight: 11.2 lb / 5.1 kg
• Package Weight: 14.855 lb
• Box Dimensions: 21.4 x 17.2 x 7 in

Sennheiser EM 6000 DANTE (Sennheiser 508475)
