Evolution Wireless Digital Handheld and BodyPack System w/ e835 and ME2 Lav
For over 20 years Sennheiser's Evolution Wireless has allowed performers of every type to roam free. The next logical step in that Evolution is the EW-D series, delivered just when we need to roam more than ever!

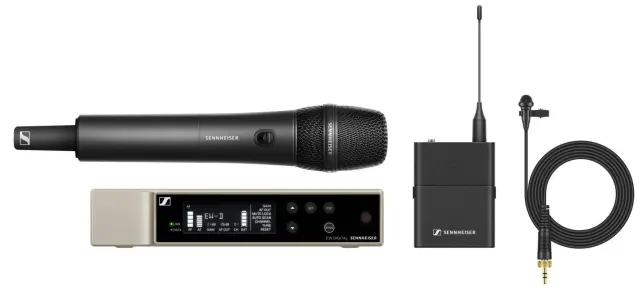

The EW-D-ME2 835-S is a receiver and bodypack combination set that includes a Sennheiser ME2 lavalier mic and a handheld EW-D-SKM-S transmitter with the 835 microphone module. The system delivers pure digital wireless audio free from noise, interference, and annoying static bursts. The system's automated setup makes for quick easy implementation with little effort. A dedicated mobile app eschews deep menus giving users a convenient familiar way to operate and change settings.
The ME2 clip-on lavalier has an omnidirectional pickup pattern that produces natural-sounding vocals even when the user is not speaking directly into the microphone, great for performers who dislike head-worn units.
The renowned e 835 microphone module has a cardioid pickup pattern that rejects sound from the rear and sides to deliver intimate highly intelligible vocals, even on loud stages. Whether speaking or singing, you know they'll hear every word.
With over 2,200 selectable frequencies you're never out of range or out of touch. Speaking of range, the EW-D-ME2 835-S' 134 dB dynamic range means they'll hear everything you intend, from a whisper to a scream. The bodypack's familiar metal housing reflects Sennheiser's standard rugged design. Operating up to 12 hours per charge when used with the Li-ion battery pack (sold separately) or 8 hours on a pair of AA batteries, you can be sure the show will go on, and on!
Sennheiser EW-D-ME2/835-S Includes:
EW-D EM rack receiver
EW-D SK bodypack transmitter
EW-D SKM-S handheld transmitter
ME 2 lavalier microphone
MMD 835 microphone module
MZQ 1 microphone clamp
2 rod antennas
Power supply with country adapters
Rackmount set
4 rubber feet
Quick guide
Safety guide
Manufacturer declaration sheet
Sennheiser EW-D-ME2/835-S Features:
Digital wireless eliminates noise, interference, and static bursts
UHF transmission greatly enhances range, reliability, and scalability
Mobile App streamlines setup and operation and eliminates complicated menus
Automated setup creates reliable connections with minimal time and effort
Up to 2,240 selectable frequencies
Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
56 MHz Bandwidth will allow for up to 90 channels
Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range
Sennheiser EW-D-ME2/835-S Specifications:
Audio link frequency ranges
Q1-6: 470.2 - 526 MHz
R1-6: 520 - 576 MHz
R4-9: 552 - 607.8 MHz
S1-7: 606.2 - 662 MHz
S4-7: 630 - 662 MHz
S7-10: 662 - 693.8 MHz
U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
V3-4: 925.2 - 937.3 MHz
Y1-3: 1785.2 - 1799.8 MHz
Bluetooth® Low Energy frequency range: 2402 - 2480 MHz
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
Operating temperature -10 °C - +55 °C (14 °F - 131 °F)
Relative humidity 5 - 95 % (non-condensing)
EW-D EM (Rack Receiver)
Input voltage: 11 - 13 V ⎓
Input current: ≤ 300 mA
Transmit power (radiated): BLE: max. 10 mW EIRP
Audio output power: 18 dBu max.
Dimensions: 212 x 44 x 189 mm
Weight: approx. 1000 g (without antennas and power supply)
EW-D SK (Bodypack Transmitter)
Input voltage: 2.0 - 4.35 V
Input current: < 300 mA
Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70
rechargeable battery pack
Occupied bandwidth: 200 kHz
Transmit power: (radiated) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
BLE: max. 10 mW EIRP
Dimensions: 63 x 80 x 20 mm (without antenna)
Weight: (without batteries) approx. 120 g
ME2 Lavalier Microphone
Transducer principle: pre-polarized condensor microphone
Pick-up pattern: omni-directional
Sensitivity: (free field, no load) (1 kHz) 17 mV/Pa
Max. SPL at 1 kHz: 130 dB
Frequency response: 50 to 18,000 Hz
Equivalent noise level A-weighted (DIN IEC 651): 32 dB
Connector: 3.5 mm jack
Cable length: approx. 1.60 m
Supply voltage: 7.5 V
EW-D SKM-S Handheld Transmitter
Input voltage: 2.0 - 4.35 V
Input current: < 300 mA
Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70
rechargeable battery pack
Occupied bandwidth: 200 kHz
Transmit power: (radiated) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
BLE: max. 10 mW EIRP
Dimensions: (ø x l) 50 x 268 mm (incl. MMD 835 microphone module)
40 x 200 mm (without microphone module)
Weight (without batteries): approx. 304 g (incl. MMD 835 microphone module) approx. 195 g (without microphone module)
MMD 835 Microphone Module
Transducer principle: dynamic
Sensitivity: 2.1 mV/Pa
Sound pressure level: 154 dB SPL
Pick-up pattern: cardioid
Sennheiser EWD ME2 835S Set
(Sennheiser EW-D ME2-835S Set w/ e835 and ME2 Lav)
