Dual-Channel Wireless Microphone System
Sennheiser EW-DX 835-S Set is a premium-grade, dual-channel UHF wireless microphone system built for high-demand environments like live performance stages, corporate venues, educational institutions, and houses of worship. This advanced wireless setup ensures crystal-clear digital audio, streamlined configuration, and remote management via Bluetooth or Ethernet—ideal for professionals requiring reliability and expandability.
Sennheiser EW-DX 835-S Set Competitive Differences
- 134 dB transmitter dynamic range for distortion-free audio at any input level
- Bluetooth sync and control via Smart Assist app or computer-based network software
Sennheiser EW-DX 835-S Set Description
The

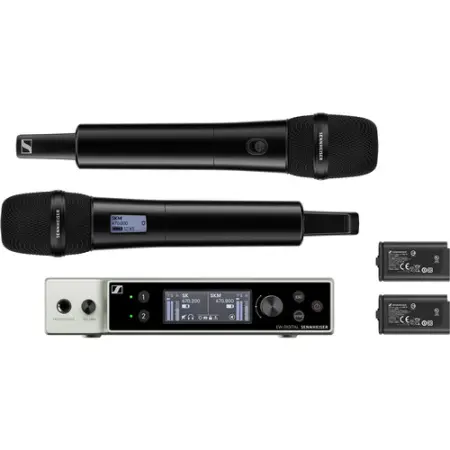

Sennheiser EW-DX 835-S Set delivers uncompromising performance with two rugged handheld transmitters, each fitted with MMD 835 cardioid capsules and e-Ink displays for at-a-glance configuration—even when powered off. These mics also feature lockable mute switches and rechargeable BA70 battery compatibility, offering up to 12 hours of runtime or 8 hours with AA batteries.
The included 1/2-rack dual-channel receiver offers intuitive setup with a high-contrast OLED screen, headphone monitoring, and both balanced XLR and unbalanced 1/4" outputs. Built-in Bluetooth enables quick syncing and adjustments via smartphone, while the RJ45 port supports PoE and advanced network integration through Sennheiser's Control Cockpit and Wireless Systems Manager software.
Engineered for reliability in dense RF environments, the EW-DX system boasts intelligent switching diversity, equidistant tuning, and Link Density mode. This allows up to 134 simultaneous channels—expandable to 269—making it an excellent choice for complex multi-mic productions.
As your needs grow, the system’s compatibility with other Sennheiser EW-DX transmitters, mic capsules, and antenna accessories provides unmatched scalability and flexibility.
Model Features
- Dual-channel digital UHF wireless receiver with OLED display
- Two handheld transmitters with MMD 835 cardioid capsules and mute switches
- Bluetooth-enabled syncing and mobile control
- e-Ink transmitter displays visible even when powered off
- Rackmount kit included for professional installation
Model Specifications
- Max SPL: Not specified
- Dynamic Range: 134 dB
- Operating Range: 328 ft (100 m)
- Latency: 1.9 ms
- RF Frequency Band: Q1-9 (470.2 – 550 MHz)
- Max Channels: 134 (Link Density Mode: 269)
- Outputs: 2x XLR, 2x 1/4" TS, 1x 1/4" headphone
- Display: OLED (receiver), e-Ink (transmitters)
- Power Supply: AC/DC adapter or PoE
- Transmitter Battery Life: 12 hours (BA70), 8 hours (AA)
- Dimensions (box): 18.5 x 14 x 2.9 in
- Weight (package): 7.975 lb
What's In The Box
- Dual-channel EW-DX EM 2 receiver
- 2x Handheld transmitters with MMD 835 capsules
- 2x Antennas
- Power supply
- Rackmount kit
- 2x AA batteries
- Quick start guide
