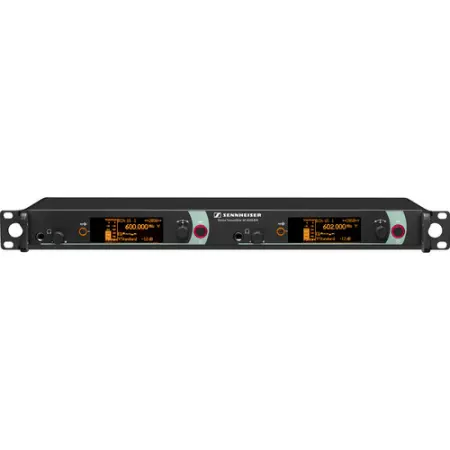

Sennheiser SR 2050 IEM | Dual-Channel Wireless Transmitter
The Sennheiser SR 2050 IEM is an easy-to-use rackmount wireless transmitter with professional features for enhanced reliability and control. It provides two stereo channels of in-ear monitoring without troublesome cables or monitor speakers, ideal for applications requiring talkback signals.
Key Features
- Easy setup with automatic frequency scan function and IR sync with receivers
- 20 fixed frequency banks each with up to 32 compatible frequency presets (no intermodulation) and 6 user banks with up to 32 user-programmable frequencies
- Switchable 10/30/50mW RF power output for versatile use
- Headphone jack with volume knob to monitor your audio right from the front panel
- Integrated 5-band EQ and enhanced low-end frequency response
- Receivers can be configured from the transmitter menu
- Monitoring and control using Sennheiser WSM computer software (Mac/Windows)
- User-friendly menu operation with a backlit graphic display
- Display shows current frequency, frequency bank and channel number, metering of AF level, transmission status, transmission power, equalizer setting, input sensitivity, and lock status
- Loop I/Os allow you to daisy chain an audio signal that is to be transmitted to all receivers from the mixing console to one transmitter and then to the other transmitters
- Pilot tone squelch for eliminating RF interference
- Two removable antennas
- Sturdy metal housing with integrated 110-240V power supply unit
Specifications
- Modulation: Wideband FM Stereo (MPX Pilot Tone)
- Frequency Band: AW+: 470 to 558 MHz
- Number of RF Channels: 3250
- Switching Bandwidth: AW+: 470 to 558 MHz
- Nominal/Peak Deviation: ±24 kHz/±48 kHz
- MPX Pilot Tone: Frequency/Deviation: 19 kHz/±5 kHz
- Frequency Stability: ±10 ppm
- Antenna Output: 2 x BNC Sockets, 50 Ohms
- Auto Channel Selection: Yes
- IR Sync: Yes
- RF Output Power: Low: 10 mW, Standard: 30 mW, High: 50 mW (At 50 Ohms, Switchable)
- Compander: Sennheiser HDX
- Frequency Response: 25 Hz to 15 kHz
- Audio Inputs: 2 x BAL AF IN L (I): Combo XLR-1/4" / 6.3 mm Electronically Balanced, 2 x BAL AF IN R (II): Combo XLR-1/4" / 6.3 mm Electronically Balanced, Headphone Output: 1/4" / 6.3 mm
- Input Level: +22 dBu, Max
- Audio Outputs: 2 x LOOP OUT BAL L (I): 1/4" / 6.3 mm Stereo Jacks, 2 x LOOP OUT BAL R (II): 1/4" / 6.3 mm Stereo Jacks
- Headphone Output: >100 mW, at 32 Ohms with Volume Knob
- Ethernet: 2 x RJ-45 Ethernet Ports
- Display: Backlit LCD: Current Frequency, Frequency Bank and Channel Number, Metering of AF Level, Transmission Status, Transmission Power, Equalizer Setting, Input Sensitivity, Lock Status
- Total Harmonic Distortion: <0.9%
- Signal-to-Noise Ratio: >90 dB
- Temperature Range: 14 to 131°F / 10 to +55°C
- Power Supply: 100-240 VAC, Auto-Switching, Built-In
- Current Consumption: 0.2 A
- Material of Construction: Metal
- Dimensions: 8.54 x 19.02 x 1.69" / 217 x 483 x 43 mm, Approx
- Weight: 5.95 lb / 2.7 kg, Approx
SENNHEISER SR 2050 IEM AW+
(Sennheiser SR 2050 IEM (AW+: 470 to 558 MHz))
