Wireless Headset Microphone System for Live Performers and Presenters
The

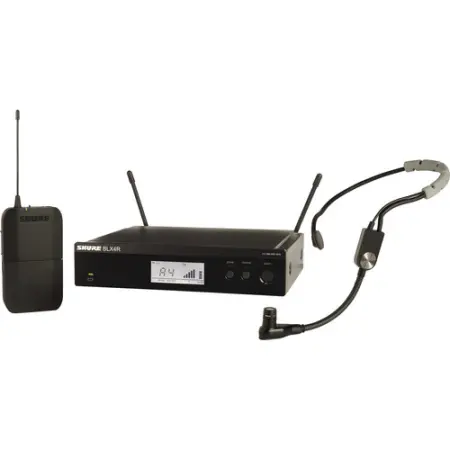

Shure BLX14R/SM35-H10 is a dependable wireless headset microphone system designed for vocalists, presenters, and multi-instrumentalists who need hands-free freedom and high-quality audio performance. With a comfortable SM35 cardioid headset mic and a rugged rackmount receiver, this system is built for clear speech and vocals in live environments like small venues, houses of worship, and event halls.
Shure BLX14R/SM35-H10 Competitive Differences
- SM35 condenser headset mic with cardioid pickup pattern for excellent off-axis rejection
- BLX4R single-channel receiver with removable antennas and rackmount hardware included
- One-touch QuickScan finds clean frequencies from 123 available UHF channels
- Up to 14 hours of operation with just two AA batteries
- 300-foot (91.4m) maximum range (line of sight)
- Lightweight BLX1 bodypack transmitter with ergonomic design and adjustable gain
- Supports up to 12 simultaneous systems per frequency band
Shure BLX14R/SM35-H10 Description
The
Shure BLX14R/SM35-H10 system offers a practical solution for performers and speakers who demand professional wireless performance in a portable and easy-to-use package. The SM35 headset mic provides clear, isolated vocal pickup with its cardioid polar pattern, making it ideal for stage environments where feedback and signal bleed can be an issue. Its lightweight, secure design ensures comfort over long periods of use.

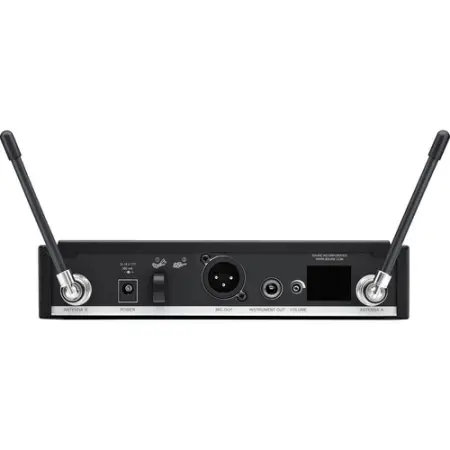

The BLX1 bodypack transmitter pairs easily with the BLX4R rackmount receiver, which includes an LCD display for monitoring audio levels and frequency settings, plus an LED for battery status. The receiver's microprocessor-controlled antenna diversity enhances audio reliability, and its 1/4" and XLR outputs allow flexible connectivity to various sound systems.
Built with flexibility in mind, this system is part of Shure’s modular BLX series—compatible with various mic options and accessories to suit evolving audio needs. Whether used for vocals, presentations, or musical performance, the BLX14R/SM35-H10 offers the reliability and sound quality Shure is known for.
BLX14R/SM35-H10 Features
- Cardioid SM35 headset mic minimizes background noise and feedback
- Flexible gooseneck for precise mic positioning
- Locking windscreen to reduce plosives and wind noise

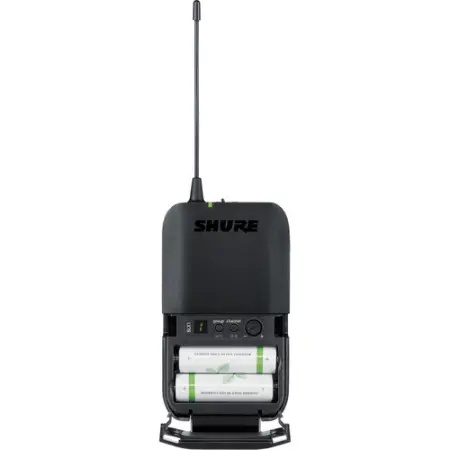

- BLX1 bodypack with quick frequency matching and gain control
- BLX4R receiver with LCD display, audio metering, and LED battery indicator
- Adjustable output levels for XLR and 1/4” outputs
- Microprocessor-controlled internal antenna diversity
- Compatible with other BLX series transmitters and mic options
BLX14R/SM35-H10 Specifications
- Wireless Technology: Analog UHF
- RF Frequency Band: H10 (542–572 MHz)
- Number of RF Frequencies: 123
- Max Operating Range: 300 ft (91.4 m)
- Dynamic Range: 100 dBA
- Max Simultaneous Channels per Band: 12
- Receiver Type: Rackmountable (1U, half-rack)
- Receiver Outputs: 1x XLR, 1x 1/4" TS
- Display: Backlit LCD
- Transmitter Type: Bodypack (BLX1)

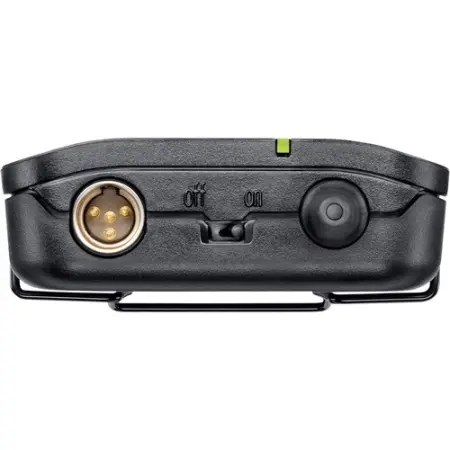

- Transmitter Input: TA4M 4-pin mini-XLR
- RF Output Power: 10 mW
- Gain Range: -16 to +10 dB
- Battery Life: Up to 14 hours with 2x AA batteries
- Microphone Frequency Response: 40 Hz – 20 kHz
- Microphone Max SPL: 153 dB
- Microphone Sensitivity: -59 dBV/Pa
- Receiver Dimensions: 7.8 x 2 x 6.4 in (198 x 50 x 163 mm)
- Receiver Weight: 35.2 oz (998 g)
- Transmitter Dimensions: 2.5 x 4.3 x 0.8 in (64 x 110 x 21 mm)
- Transmitter Weight (w/o batteries): 2.6 oz (75 g)
- Microphone Weight: 2.5 oz (72 g)
- Package Dimensions: 18.3 x 14.8 x 3.7 in
- Package Weight: 6.48 lb
What's In The Box
- Shure BLX1 Bodypack Transmitter
- Shure SM35 Cardioid Headset Microphone
- Shure BLX4R Rackmount Receiver
- Rackmount Hardware Kit
- 2x AA Batteries
- Power Supply
- Windscreens and Collar Clip
SHURE BLX14R/SM35 (H10 Band)
(Shure BLX14R/SM35 (H10: 542 to 572 MHz))
