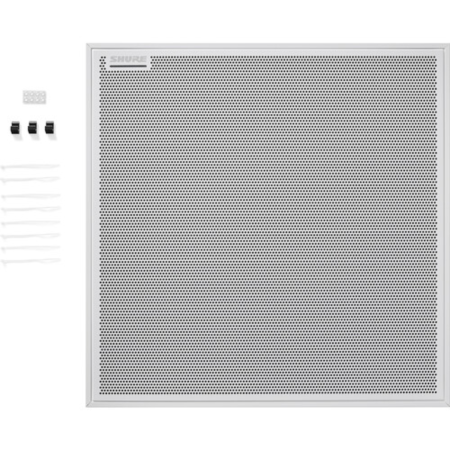

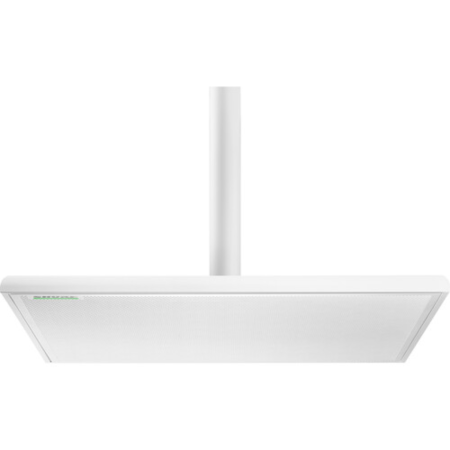

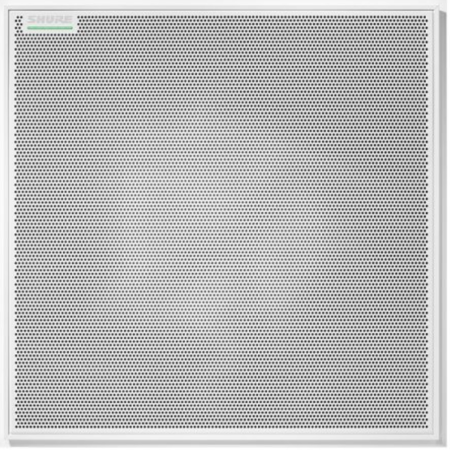

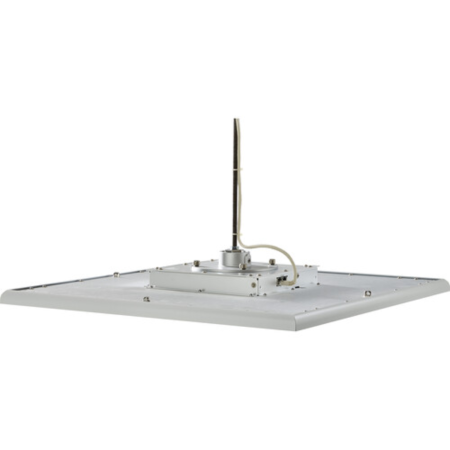

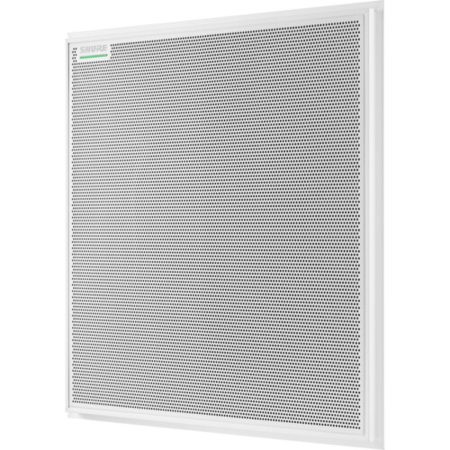

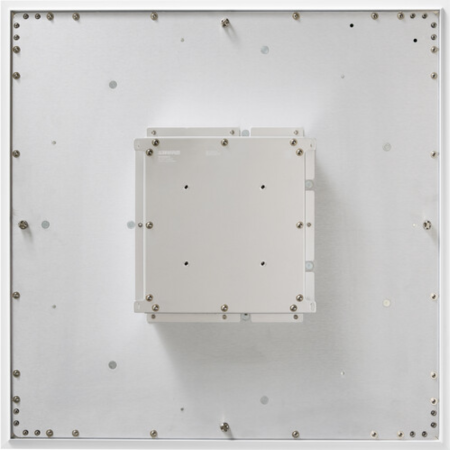

Shure MXA925W-S

Ceiling Array Microphone

Shure MXA925W-S is a white square ceiling array microphone designed for modern meeting rooms, conference spaces, classrooms, presentation areas, and collaboration environments. With automatic room coverage, onboard IntelliMix DSP, AI-powered echo cancellation, and networked audio connectivity, it helps capture clear speech while keeping the microphone hardware discreetly installed overhead.

Shure MXA925W-S Competitive Differences

• Automatic Coverage captures up to a 30 x 30 ft seating area without manual lobe aiming
• Eight configurable coverage areas allow focused pickup for specific talker zones
• AI-enabled IntelliMix DSP provides echo, noise, and reverb cancellation for clearer conferencing audio
• Dual RJ45 ports support flexible audio, control, and PoE network deployment
• Certified for Microsoft Teams Rooms and Zoom Rooms for professional collaboration spaces

Shure MXA925W-S Description

The Shure MXA925W-S is built for AV conferencing, presentations, camera tracking, voice lift, and sound reinforcement applications where clean speech capture and simple setup are essential. Its square white ceiling-tile form factor blends into modern room designs while providing powerful microphone array performance from above the meeting space.

Out of the box, the MXA925W-S can automatically cover a 30 x 30 ft seating area, helping reduce setup time for installers and AV teams. For rooms that require more precise pickup control, users can create up to eight adjustable coverage areas through the built-in web interface.

Onboard IntelliMix DSP helps improve speech quality with automatic mixing, echo cancellation, noise reduction, reverb reduction, and automatic gain control. AI-powered acoustic echo cancellation is designed to handle challenging room acoustics and close loudspeaker placement while reducing echo artifacts as talkers move around the space.

The MXA925W-S also supports advanced talker localization for accurate camera tracking and integration with third-party camera and room control systems. Dante and AES67 digital audio networking, Shure Audio Encryption, and enterprise-grade 802.1X security help make it suitable for professional and enterprise meeting environments.

MXA925W-S Features

• White square ceiling array microphone for meetings, conferences, and presentations
• Automatic Coverage for up to a 30 x 30 ft seating area
• Up to eight configurable coverage areas
• Steerable Coverage mode with eight pickup lobes and individual audio outputs
• Onboard IntelliMix DSP for automatic mixing and audio processing
• AI acoustic echo cancellation for improved conferencing clarity
• AI denoising and AI dereverberation processing
• Virtual acoustic boundary helps reduce unwanted noise pickup
• Optimized talker tracking for camera integration
• Supports third-party cameras and room control systems
• Certified for Microsoft Teams Rooms and Zoom Rooms
• Dante and AES67 digital audio networking

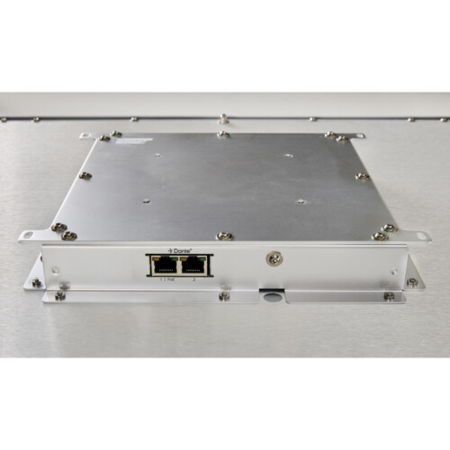

• Dual locking RJ45 ports for audio, control, and PoE network configurations
• Enterprise-grade security with 802.1X support
• Shure Audio Encryption for secure Microflex Ecosystem audio
• LED status bar with configurable colors and brightness
• Compatible with Shure Designer System configuration software
• IP5X dust-resistant design

MXA925W-S Specifications

• Product Type: Ceiling array microphone
• Model: MXA925W-S
• Form Factor: Square
• Color: White
• Applications: Meetings, conferences, presentations, AV conferencing, camera tracking, voice lift, and sound reinforcement
• Coverage Area: Up to 30 x 30 ft with Automatic Coverage
• Configurable Coverage Areas: Up to 8
• Frequency Range: 125 Hz - 20 kHz
• Coverage Angle: 30 degrees horizontal x 30 degrees vertical
• Inputs/Outputs: 2 x locking RJ45 input/output ports
• Network Audio: Dante and AES67
• Power: PoE via network connection
• Environmental Resistance: Dust-resistant, IP5X
• Operating Temperature: 20 to 104 degrees F (-6 to 40 degrees C)
• Mounting: Ceiling tile
• Dimensions: 23.77 x 23.77 x 2.15 in (60.38 x 60.38 x 5.46 cm)
• Weight: 11.8 lb (5.4 kg)
• Package Weight: 19.2 lb
• Box Dimensions: 29.75 x 28.6 x 4 in

Shure MXA925W-S (Shure MXA925WS)
