Dual wireless bodypack system for clear digital audio in live performance setups
The
Shure SLXD14D-H55 is a high-performance dual-channel digital wireless system designed for performers, presenters, and musicians needing reliable, interference-resistant audio. With a rugged rackmount receiver and two bodypack transmitters, this system offers exceptional 24-bit sound quality and simplified setup, making it ideal for small to medium venues, event spaces, and houses of worship.
Shure SLXD14D-H55 Competitive Differences
- 24-bit digital audio with 120 dB dynamic range for crystal-clear sound
- Operates in the UHF H55 band (514 to 558 MHz) with 1760 selectable frequencies
- True diversity reception and Digital Predictive Switching Diversity for drop-out resistance
- Dual bodypack transmitters with selectable RF output (1/10 mW) and 330 ft (100 m) range
- 8-hour battery life with AA batteries or SB903 rechargeable battery (sold separately)
- Dual-channel SLXD4D rackmount receiver with LCDs, IR sync, and Ethernet networking
- Up to 32 compatible systems supported simultaneously
- Expandable with optional mics, instrument cables, antennas, and rechargeable battery systems
Shure SLXD14D-H55 Description
The
Shure SLXD14D-H55 system brings professional-grade wireless technology to your stage or installation. Designed for flexibility and scalability, it includes a rugged SLXD4D dual-channel receiver and two bodypack transmitters, making it ideal for duos, ensembles, or multiple presenters. Each transmitter offers up to 8 hours of runtime and supports either instrument or mic input through a TA4M connector (mics and cables sold separately).
Operating in the reliable UHF spectrum, the system avoids congested 2.4 GHz frequencies, and its predictive switching diversity ensures stable signal performance even in challenging RF environments. The receiver features two independent LCD screens for real-time monitoring and easy control, while network connectivity enables seamless system expansion and coordination across large multi-channel setups.
This system supports up to 32 concurrent channels, with options to add active or passive antennas and rechargeable battery solutions for optimized performance and cost efficiency over time. Whether for mobile gigs or permanent installations, the SLXD14D is engineered to deliver consistent, professional wireless sound.
SLXD14D-H55 Features
- Dual-channel digital wireless bodypack system
- 24-bit digital audio for transparent sound
- Digital Predictive Switching Diversity technology
- Operates in UHF H55 band (514–558 MHz)
- 1760 selectable frequencies and 44 MHz tuning range
- Up to 32 compatible systems per band
- Two bodypack transmitters with TA4M inputs
- Transmission range up to 328 ft (100 m)
- 8-hour runtime on AA or optional SB903 batteries
- Backlit LCDs on receiver and transmitters
- Auto frequency scan and IR sync
- Rackmountable receiver with detachable BNC antennas
- Ethernet port for group frequency coordination
- Compatible with ShurePlus app for remote control
SLXD14D-H55 Specifications
- Wireless Technology: Digital UHF
- RF Frequency Band: H55 (514–558 MHz)
- Receiver Type: Tabletop/rackmountable (1U)
- Diversity: True Diversity
- Max Operating Range: 328 ft (100 m)
- RF Output Power: 1 / 10 mW
- Latency: 3.2 ms
- Dynamic Range: 120 dBA
- Receiver Audio Outputs: 2x XLR (balanced), 2x 1/4" TS (unbalanced)
- Gain Range: 0 to +21 dB (3 dB steps)
- Receiver Display: Backlit LCD
- Transmitter Audio Input: 1x TA4M (Mini-XLR 4-pin male)
- Power: 2x AA batteries or 1x SB903 rechargeable battery (not included)
- Battery Life: Up to 8 hours (alkaline or SB903)
- Power Adapter: 15 VDC at 600 mA (included)
- Receiver Input Power: 100–240 VAC, 50/60 Hz
- Product Weight: 8.34 lb
- Product Dimensions (LxWxH): 17.8 x 13.8 x 4.5 in

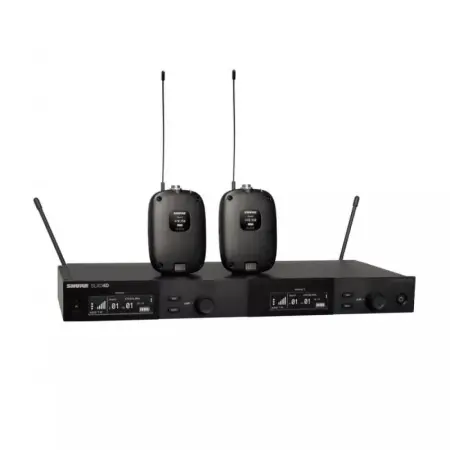

What's In The Box
- 1x SLXD4D Dual-Channel Receiver
- 2x SLXD1 Bodypack Transmitters
- 2x Rackmount Brackets
- 2x BNC Antennas
- 2x AA Batteries
- 1x Power Supply
- 1x Rackmount Hardware Kit
- 1x User Manual
SHURE SLXD14D H55 Band
(Shure SLXD14D (H55: 514 to 558 MHz))
