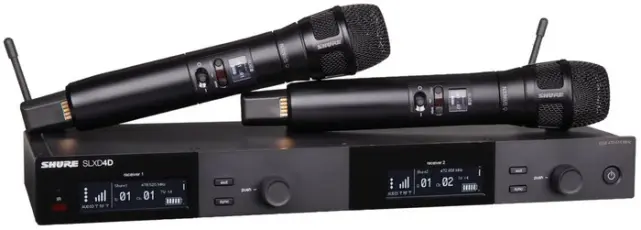

Professional Dual-Channel Digital Wireless Microphone System
The Shure SLXD24D/N8SB-G58 is a premium dual-channel digital wireless microphone system designed for live performances, houses of worship, corporate presentations, broadcasting, and event productions. Featuring Shure's industry-leading digital wireless technology, this system ensures transparent 24-bit digital audio, reliable transmission, and effortless setup.
Equipped with two SLXD2/N8SB handheld transmitters featuring Nexadyne 8S supercardioid dynamic capsules, this system delivers natural, clear vocals with excellent off-axis rejection, making it an excellent choice for professional environments. The SLXD4D dual-channel receiver allows for simultaneous operation of two microphones, offering flexibility and efficiency for high-demand audio setups.
Shure SLXD24D/N8SB Competitive Differences
- Dual wireless microphone system with two SLXD2/N8SB handheld transmitters
- Shure Nexadyne 8S capsules for premium vocal clarity and background noise rejection
- 24-bit digital audio with a 20 Hz – 20 kHz frequency range
- 118 dB dynamic range for distortion-free performance
- Digital predictive switching diversity for dropout-free audio
- Operating range of up to 100 meters (300 feet) for venue-wide coverage
- 32 available channels per frequency band, supporting multiple wireless systems
- IR scan and sync for fast and simple transmitter-receiver pairing
- Up to 8 hours of battery life with AA batteries, upgradeable to Shure SB903 rechargeable battery for detailed battery monitoring
- Rugged metal construction for professional durability
- Ethernet networking for remote control and monitoring
Shure SLXD24D/N8SB Description
The Shure SLXD24D/N8SB-G58 wireless microphone system is built for professional performers, public speakers, broadcasters, and event producers who require crystal-clear audio, reliability, and flexibility. The SLX-D digital wireless platform delivers exceptional sound quality and seamless wireless operation, ensuring stable RF performance without interference.

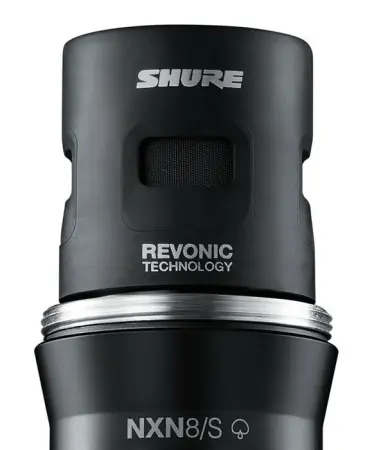

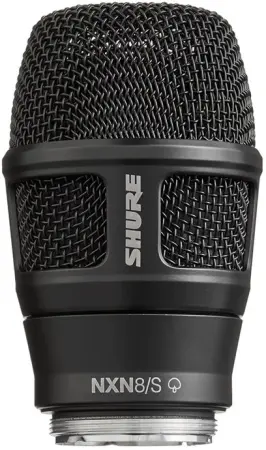

Each SLXD2/N8SB handheld transmitter features Shure’s Nexadyne 8S dynamic capsule, offering enhanced off-axis rejection and a natural vocal response. The SLXD4D dual-channel receiver provides independent control over two wireless microphones, making it an ideal solution for duos, panel discussions, and live performances.
With automatic frequency scanning, IR sync, and an easy-to-use interface, setting up the system is quick and hassle-free. The optional Shure SB903 rechargeable battery system provides real-time monitoring of battery life and performance, reducing downtime and ensuring consistent operation.
SLXD24D/N8SB Features
- Dual wireless system with two Nexadyne 8S-equipped handheld transmitters
- 24-bit digital audio quality for pristine sound reproduction
- Extended 20 Hz – 20 kHz frequency response (microphone dependent)
- 118 dB dynamic range for clean, distortion-free performance
- Digital predictive switching diversity for dropout-free audio transmission
- Operating range up to 100 meters (300 feet)
- 44 MHz tuning bandwidth (region-dependent)
- 32 available channels per frequency band (region-dependent)
- IR scan and sync for quick transmitter-receiver pairing
- Up to 8 hours of operation with AA batteries, upgradeable to Shure SB903 rechargeable battery
- Rugged metal construction for durability in professional settings
- Networkable control via Ethernet connectivity
SLXD24D/N8SB Specifications
SLXD2/N8SB Handheld Transmitter
- Battery Type: 2 x AA (alkaline) or SB903 rechargeable lithium-ion
- Dimensions (Dia. x L): 1.46 x 6.93 inches (37.1 x 176 mm)
- Weight: 5.2 oz (147 g)
- Housing: Aluminum
- Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp) (microphone dependent)
- Antenna Type: Integrated single-band helical
- RF Power Output: 1 mW / 10 mW (varies by region)
SLXD4D Dual-Channel Wireless Receiver
- Dimensions (H x W x D): 1.65 x 15.5 x 5.98 inches (42 x 393 x 152 mm)
- Weight: 3.2 lbs (1451 g) without antennas
- Housing: Galvanized steel
- Power Requirements: 15 VDC @ 600 mA (supplied by external power supply, tip positive)
RF Performance
- Operating Range: 100 meters (300 feet) typical
- Spurious Rejection: >75 dB (typical)
- RF Connectors: BNC
- Impedance: 50 Ω
Audio Output
- Gain Adjustment Range: –18 to +42 dB in 1 dB steps
- Output Connectors:
- 1/4" (6.35 mm): Balanced (Tip = audio +, Ring = audio –, Sleeve = ground)
- XLR: Balanced (1 = ground, 2 = audio +, 3 = audio –)
- Impedance:
- 1/4" (6.35 mm): 1.3 kΩ (670 Ω unbalanced)
- XLR (Line setting): 400 Ω (200 Ω unbalanced)
- XLR (Mic setting): 150 Ω
- Full-Scale Output:
- 1/4" (6.35 mm): +15 dB differentially (+9 dBV single-ended)
- XLR (Line setting): +15 dBV
- XLR (Mic setting): –15 dBV
What's in the Box
- (2) Shure SLXD2/N8SB Supercardioid Digital Wireless Handheld Transmitters
- (1) Shure SLXD4D Dual-Channel Wireless Receiver
- (2) Mic Clips (WA371)
- (2) Zippered Carrying Pouches
- (4) AA Alkaline Batteries
- (1) Power Supply
- Quick Start Guide
The Shure SLXD24D/N8SB-G58 is the perfect professional wireless microphone system for live performances, corporate events, houses of worship, and broadcast applications, delivering exceptional sound, reliability, and wireless performance.
SHURE SLXD24D/N8SB G58 band
(Shure SLXD24D/N8SB-G58 (470-514 MHz))
