Professional Dual-Channel Digital Wireless Microphone System
The Shure SLXD24D/N8SB-J52 is a premium dual-channel digital wireless microphone system designed for live performances, corporate events, houses of worship, broadcasting, and more. Utilizing Shure’s advanced digital wireless technology, this system delivers transparent 24-bit audio, rock-solid RF stability, and an easy setup process for a seamless wireless experience.
Equipped with two SLXD2/N8SB handheld transmitters featuring Nexadyne 8S supercardioid dynamic capsules, the system ensures outstanding vocal clarity with excellent off-axis rejection. The SLXD4D dual-channel receiver allows simultaneous operation of both microphones, making it a versatile solution for professional audio applications.
Shure SLXD24D/N8SB Competitive Differences

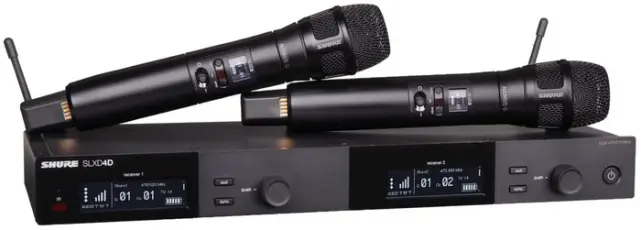

- Dual wireless microphone system with two SLXD2/N8SB handheld transmitters

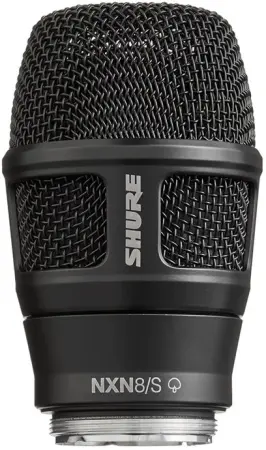

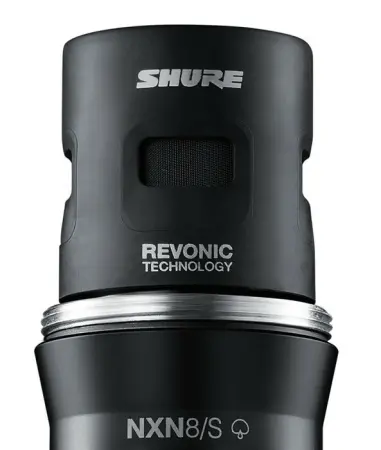

- Shure Nexadyne 8S capsules for superior vocal clarity and background noise rejection
- 24-bit digital audio with an extended 20 Hz – 20 kHz frequency range
- 118 dB dynamic range for distortion-free performance
- Digital predictive switching diversity for dropout-free audio
- Operating range of up to 100 meters (300 feet) for flexible venue coverage
- 32 available channels per frequency band, supporting multiple wireless systems
- IR scan and sync for fast and easy transmitter-receiver pairing
- Up to 8 hours of battery life with AA batteries, upgradeable to Shure SB903 rechargeable battery for detailed battery monitoring
- Durable metal construction for long-term professional use
- Ethernet networking for remote control and monitoring
Shure SLXD24D/N8SB Description
The Shure SLXD24D/N8SB-J52 wireless microphone system is built for professionals who need reliable, high-quality audio for live sound applications. Designed with Shure’s digital wireless expertise, it delivers outstanding RF performance and crystal-clear audio transmission, making it an excellent choice for performers, speakers, and event coordinators.
The Nexadyne 8S dynamic capsules provide exceptional vocal clarity with minimized background noise, ensuring a professional-grade audio experience. The SLXD4D dual-channel receiver allows for seamless operation of two microphones at the same time, making it ideal for panel discussions, interviews, or live performances.
With quick IR sync pairing, digital predictive switching diversity, and an optional rechargeable battery system, the SLXD24D/N8SB is engineered for convenience and reliability. This system is designed to perform flawlessly across a wide range of environments, ensuring uninterrupted audio transmission and maximum efficiency.
SLXD24D/N8SB Features
- Dual wireless system with two Nexadyne 8S-equipped handheld transmitters
- 24-bit digital audio for high-fidelity sound reproduction
- Extended 20 Hz – 20 kHz frequency response (microphone dependent)
- 118 dB dynamic range for crystal-clear, distortion-free audio
- Digital predictive switching diversity for uninterrupted signal performance
- Operating range up to 100 meters (300 feet)
- 44 MHz tuning bandwidth (region-dependent)
- 32 available channels per frequency band
- IR scan and sync for fast transmitter-receiver pairing
- Up to 8 hours of battery life with AA batteries, upgradeable to Shure SB903 rechargeable battery
- Rugged metal construction for professional durability
- Ethernet connectivity for networked control and monitoring
SLXD24D/N8SB Specifications
SLXD2/N8SB Handheld Transmitter
- Battery Type: 2 x AA (alkaline) or SB903 rechargeable lithium-ion
- Dimensions (Dia. x L): 1.46 x 6.93 inches (37.1 x 176 mm)
- Weight: 5.2 oz (147 g)
- Housing: Aluminum
- Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp) (microphone dependent)
- Antenna Type: Integrated single-band helical
- RF Power Output: 1 mW / 10 mW (varies by region)
SLXD4D Dual-Channel Wireless Receiver
- Dimensions (H x W x D): 1.65 x 15.5 x 5.98 inches (42 x 393 x 152 mm)
- Weight: 3.2 lbs (1451 g) without antennas
- Housing: Galvanized steel
- Power Requirements: 15 VDC @ 600 mA (supplied by external power supply, tip positive)
RF Performance
- Operating Range: 100 meters (300 feet) typical
- Spurious Rejection: >75 dB (typical)
- RF Connectors: BNC
- Impedance: 50 Ω
Audio Output
- Gain Adjustment Range: –18 to +42 dB in 1 dB steps
- Output Connectors:
- 1/4" (6.35 mm): Balanced (Tip = audio +, Ring = audio –, Sleeve = ground)
- XLR: Balanced (1 = ground, 2 = audio +, 3 = audio –)
- Impedance:
- 1/4" (6.35 mm): 1.3 kΩ (670 Ω unbalanced)
- XLR (Line setting): 400 Ω (200 Ω unbalanced)
- XLR (Mic setting): 150 Ω
- Full-Scale Output:
- 1/4" (6.35 mm): +15 dB differentially (+9 dBV single-ended)
- XLR (Line setting): +15 dBV
- XLR (Mic setting): –15 dBV
What's in the Box
- (2) Shure SLXD2/N8SB Supercardioid Digital Wireless Handheld Transmitters
- (1) Shure SLXD4D Dual-Channel Wireless Receiver
- (2) Mic Clips (WA371)
- (2) Zippered Carrying Pouches
- (4) AA Alkaline Batteries
- (1) Power Supply
- Quick Start Guide
The Shure SLXD24D/N8SB-J52 is the ideal wireless microphone system for live performances, corporate events, houses of worship, and professional broadcasting, delivering outstanding audio clarity, reliability, and wireless flexibility.
SHURE SLXD24D/N8SB J52 band
(Shure SLXD24D/N8SB-J52 (558-616 Mhz))
