Quad Digital Wireless Receiver with Dante
The

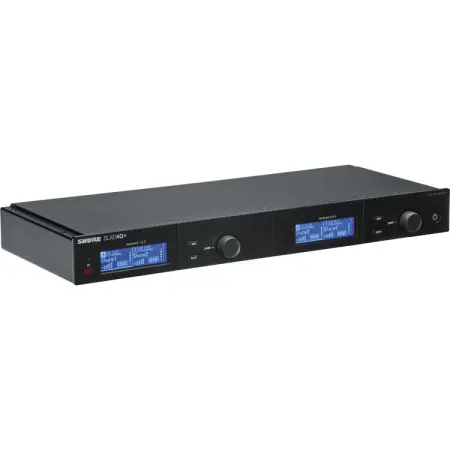

Shure SLXD4QDAN+ (G57 Band) is a 4-channel UHF digital wireless receiver with integrated Dante audio networking, offering scalable, interference-resistant performance. Housed in a rugged 1U rackmount chassis, it's built for mobile A/V setups and permanent installations in conference rooms, houses of worship, campuses, and event spaces.
Shure SLXD4QDAN+ (G57 Band) Competitive Differences
- Built-in Dante audio networking for direct digital console integration
- RF cascade enables 8-channel setups in just 2U rack space
Shure SLXD4QDAN+ (G57 Band) Description
The
Shure SLXD4QDAN+ (G57 Band) offers advanced quad-channel digital wireless reception with Dante output, Ethernet control, and professional-grade flexibility. It supports up to 32 simultaneous systems per band and delivers transparent 24-bit digital audio with over 118 dB of dynamic range—ideal for high-quality vocal transmission in live and installed sound environments.
This receiver features True Diversity with Digital Predictive Switching to maintain strong RF integrity even in congested environments. Automatic frequency scanning and IR sync streamline setup, while the intuitive front panel provides quick visual feedback with RF and audio metering.

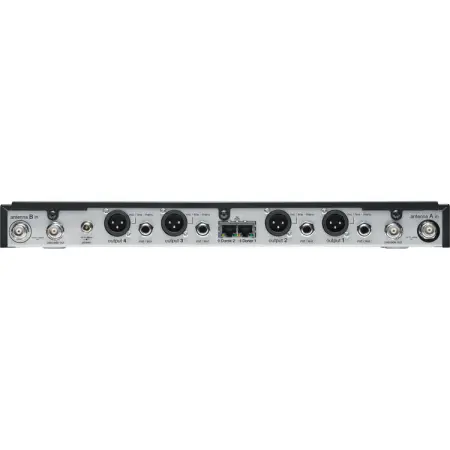

With four mic/line XLR and 1/4" TRS outputs, adjustable gain, and summing options, the SLXD4QDAN+ adapts easily to a wide range of mixer configurations. Its dual RJ45 ports support Dante digital audio networking, including switched, redundant, and split modes for seamless audio distribution.
The metal rackmount design, detachable antennas, and support for RF cascading make it easy to build an 8-channel system with centralized monitoring—perfect for AV professionals who need power, portability, and performance.
Model Features
- Quad-channel digital wireless receiver (G57 Band: 470–608 MHz)
- 5520 selectable frequencies with 138 MHz tuning range
- 24-bit audio with 118 dB dynamic range
- Digital Predictive Switching Diversity for stable RF
- Dante audio networking with dual RJ45 ports
- Auto frequency scan and IR sync
- Audio summing for flexible output routing
- Supports RF cascade for linking multiple receivers
- 1U rackmount chassis with metal housing
Model Specifications
- Wireless Technology: Digital UHF
- Frequency Band: G57 (470–608 MHz)
- Max Operating Range: 328 ft (100 m)
- Latency: 3.2 ms
- Max Systems per Band: 32
- Audio Outputs: 4x XLR, 4x 1/4" TRS
- Network I/O: 2x RJ45 (Dante)
- Gain Range: 18 to +42 dB (1 dB steps)
- Frequency Response: 20 Hz – 20 kHz (+1/-2 dB)
- Housing: Metal (rackmount, 1U)
- Dimensions: 15.5 x 6 x 1.7 in (393 x 152 x 42 mm)
- Weight: 3.9 lb (1750 g)
What's In The Box
- Shure SLXD4QDAN+ (G57 Band) receiver
- 2x removable BNC antennas
- Rackmount hardware
- AC/DC power adapter (15 VDC, 0.9 A)
Shure Professional SLXD4QDAN+ G57
(Shure SLXD4QDAN+ (G57 Band: 470–608 MHz))
