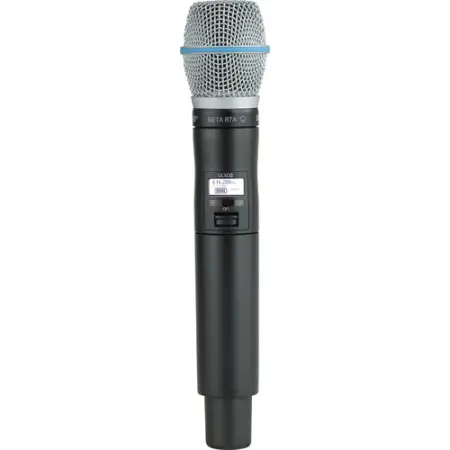

Shure ULXD2/B87A-G57

Handheld Digital Wireless Microphone

The Shure ULXD2/B87A-G57 is a professional-grade digital handheld wireless transmitter designed for high-end vocal applications in live sound, broadcast, and corporate production. Outfitted with the renowned Beta 87A condenser capsule, it delivers studio-level clarity and high gain-before-feedback in demanding environments.

Shure ULXD2/B87A-G57 Competitive Differences

• Beta 87A supercardioid condenser capsule for exceptional vocal detail
• Operates in the G57 band (470–534 MHz)
• Secure AES 256-bit encrypted wireless transmission
• Selectable RF output power: 1 mW, 10 mW, or 20 mW
• Durable aluminum body with integrated fixed helical antenna

Shure ULXD2/B87A-G57 Description

The Shure ULXD2/B87A-G57 is engineered for professionals who demand top-tier audio performance and secure wireless operation. With the factory-installed Beta 87A capsule, this transmitter captures vocals with clarity and precision, while its supercardioid pattern ensures excellent off-axis rejection and high feedback resistance. Operating in the 470–534 MHz G57 band, the ULXD2/B87A offers selectable RF output levels (1/10/20 mW) for adaptable performance in varying RF environments. It features AES 256-bit encryption to protect wireless audio content during high-profile performances, broadcasts, or corporate presentations. The transmitter’s aluminum construction and integrated helical antenna ensure durability and stable signal transmission. A backlit LCD provides real-time access to vital settings, including gain, mute status, and battery life. Power options include two AA batteries (included) or the optional SB900A rechargeable battery, offering up to 12 hours of runtime. IR sync allows fast, secure pairing with Shure ULX-D receivers, making this a powerful tool for professionals needing flexibility, quality, and reliability in wireless audio.

Model Features

• Digital handheld UHF wireless transmitter
• Includes Beta 87A supercardioid condenser capsule
• Interchangeable microphone capsule design
• AES 256-bit encrypted digital transmission
• Selectable RF power output: 1 mW / 10 mW / 20 mW
• IR sync with ULX-D digital wireless receivers
• Backlit LCD with gain, mute, and battery indicators
• Durable aluminum housing with integrated helical antenna
• Mute switch with configurable On/Off function

Model Specifications

• Frequency Range: 470–534 MHz (G57 Band)
• Operating Range: Up to 328 ft (100 m)
• Latency: Less than 2.9 ms
• RF Output Power: 1 / 10 / 20 mW (selectable)
• Polar Pattern: Supercardioid
• Frequency Response: 20 Hz – 20 kHz
• Maximum SPL: 140.5 dB
• Sensitivity: -52.5 dBV/Pa
• Battery Type: 2x AA (included) or 1x SB900A rechargeable (not included)
• Battery Life: Up to 11 hours (AA), up to 12 hours (SB900A)
• Housing: Aluminum
• Weight: 12 oz (340 g)
• Package Weight: 1.45 lb
• Package Dimensions: 12.76 x 4.88 x 3.47 in

What's In The Box

• Shure ULXD2 Handheld Transmitter
• Beta 87A Microphone Capsule (pre-installed)
• 2x AA Batteries
• User Documentation
