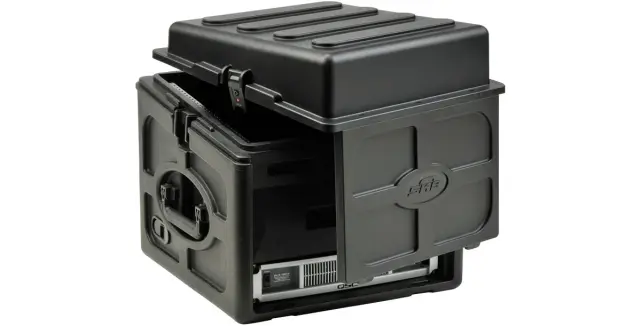

The 1SKB-R106 is a 10U slanted top and 6U front, rack case that features steel threaded rails, hard lid and doors, side access ports (for cable routing) and has enough space to mount the AV-8 with the lid closed!
The one piece base is roto-molded of Linear Medium Density Polyethylene (LMDPE) while the hard front, rear doors and lid are Injection molded of Rubber Modified Styrene (RMS). The back lid provides maximum access to the rack gear. Two TSA locking SKB patented trigger latches secure the lid while the flat hard top allows for stacking in transport and storage.

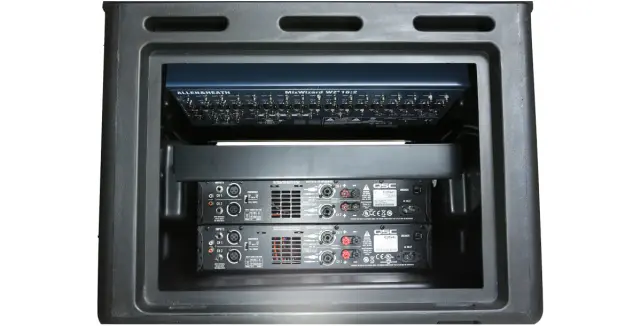

Note: Item is pictured with the 1SKB-AV8 Retractable Shelf and the 1SKB-DRW4 4 space drawer which are not included with this item.
Prop65 Information
This product can expose you to chemicals including carbon black, which is known to the State of California to cause cancer and birth defects or other reproductive harm. To understand why we must make this statement please click on the Prop 65 tab above. For more information on Prop 65, go to www.P65Warnings.ca.gov.
Features
10U Slanted rackmount on top
6U rackmount in front
Steel threaded rails
Hard lid and doors
Side access ports for cable routing
Injection molded front and rear doors and lid
Two TSA locking patented trigger latches
Stackable for storage and transport
Pictured 4 space drawer is NOT included
Pictured retractable shelf is NOT included
Specifications
Exterior
Hard
Rack Units
16
Top Space Units
10
Bottom Space Units
6
Front Rail To Back Lid
3.5 in
8.89 cm
Rear Rail to Front Lid
17 in
43.18 cm
Product Weight
26.34 lb
11.95 kg
Exterior Length
23.75 in
60.33 cm
Exterior Width
23.375 in
59.37 cm
Exterior Height
21.25 in
53.98 cm
Carton Length
24.5 in
62.23 cm
Carton Width
24.5 in
62.23 cm
Carton Height
22.5 in
57.15 cm
Shipping Weight
30.28 lb
13.73 kg
Rack depth is listed at 6" and that is referencing the top of the rail on the slant portion of the case. At the bottom of the rail, the depth is 3.75". If nothing is mounted in the 4 spaces on the front, then the actual depth at top of the slant rail would actually be 17.125". After the first 3" from the bottom of the slant rail (and with nothing mounted in the 4 spaces on the front), the depth is 15.375". Product weight is without the optional 1SKB-AV8. The 1SKB-AV8 weighs 6 pounds.
