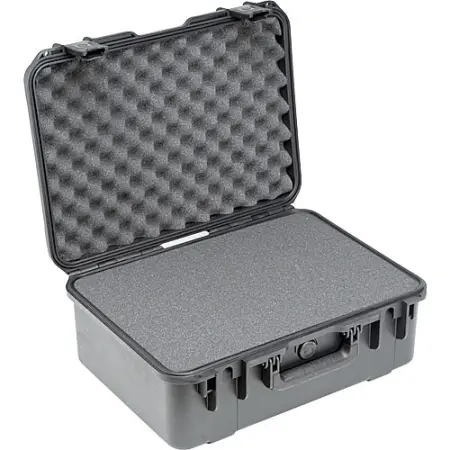

The SKB 3I-1813-7B-C Waterproof Case is an injection molded ultra high-strength polypropylene copolymer resin case. It features a gasketed, water and dust-tight, submersible design that is resistant to corrosion and impact damage. The case is ATA category 1 rated. There is a continuous molded-in hinge, "trigger release" latch system, comfortable, snap-down rubber over-molded cushion grip handle and automatic ambient pressure equalization valve. It is resistant to UV, solvents, corrosion, fungus and impact damage, and the cases are lockable with a customer supplied padlock.
This case has a cubed foam interior.
Injection molded ultra high-strength polypropylene copolymer resin case
ATA (Air Transport Association) category 1 rated
MIL-STD-810F Military specification for resistance to UV, solvents, corrosion, fungus and impact damage
MIL-STD-C-4150J Military specification for waterproof and water-vapor proof cases for transit and storage
IP67 Military specification for protection against dust and against the effect of immersion between 15cm and 1.0 m
MIL-STD-648C Military specification for automatic ambient pressure equalization valve
Trigger release latch system is lockable with a customer supplied padlock
Continuous molded-in hinge for added protection
Temperature rating = -40 to +160°F (-40 to +71.11°C)
Snap-down rubber over-molded cushion grip handle
Specifications:
Material
Exterior: Ultra high-strength polypropylene copolymer resin
Interior: 1.0" thick cubed foam, 3/4" dye cut squares
Type of Closure
Trigger release latch system
Lockable with a customer supplied padlock
Continuous molded-in hinge for added protection
Exterior Dimensions
20.75 x 15.125 x 7.81" (52.7 x 38.74 x 19.84cm) (LxWxD)
Interior Dimensions
Lid depth: 1.5" (3.81cm)
Base depth: 5.5" (13.97cm)
18.5 x 13 x 7.0" (46.99 x 33.02 x 17.78cm) (LxWxH)
Volume
Exterior space: 1.43 ft³ (0.041 m³)
Interior space: 0.97 ft³ (0.028 m³)
Interior Fitting
1.0" thick cubed foam, 3/4" dye cut squares
Accommodates
Gear that needs protection from water and dust
Carrying/Transport Options
Snap-down cushion grip handle
Weight 10 lbs (4.54kg)
SKB 3i18137bc
(SKB 3i1813-7BC)
