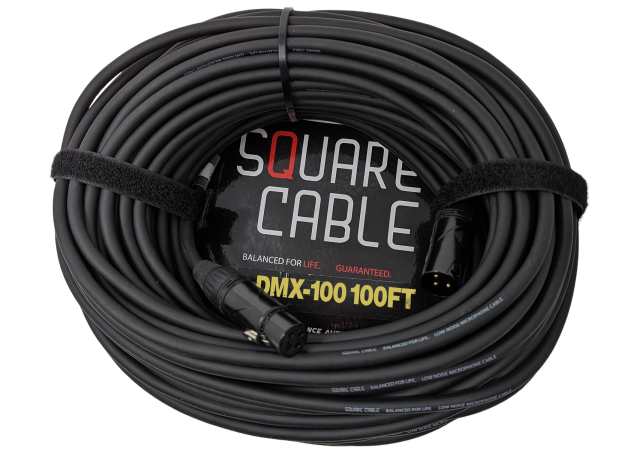

SquareCable DMX-100 | 100ft DMX Cable (3-Pin)
$59.99
Square Cable 100ft DMX Cable for Lighting
Tour Grade, Ultra High Performance DMX 3-Pin Male to DMX 3-Pin Female
3-Pin DMX Lighting Cable
All Metal XLR Connectors
Twisted Pair Data Cable with Polyethylene Insulation
100% Coverage Duofoil
85% Coverage Tinned Copper Braid Shield with Cotton
Durable PCV Jacket
Bend/Twist Resistant Cable
Gold Plated Contacts
Lifetime Guarantee
Nominal Characteristic Impedance: 110 Ohms
Nominal Velocity of Propagation: 66%
Nominal Delay: 1.6 Nanoseconds per foot
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/ft
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
Nominal Outer Shield DC Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
These Tour Grade Cables are resistant to bending & twisting. They are ideal for professional grade signal transfer with standard DMX fixtures.
| Brand | SquareCable |
| Name | SquareCable DMX-100 | 100ft DMX Cable (3-Pin) |
| Primary Category | DMX Cable |
| Impedance | 110 Ohms Ohms |
