The new DQX series, using the same amplifier and power supply platform as the QX series, feature a high quality DSP, with high precision and dynamic AD/DA converters and an informative 3.3” HD LCD screen. Real time monitoring is available both via the screen or via RS-485 connections, with support for receiving AES digital audio signals.
Additional features include active power factor correction (PFC) and ultra reliable soft power switching power supply which will operate universally between 90-250VAC.
The DQX series, are all 1U height lightweight designs, weighing less than 13kg. Both 2 and 4 channel versions are available, giving power ratings from 2550 watts per channel up to 5100 watts per channel at 4 ohms at over 95% efficiency.
At 2 ohm operation, the flagship DQX4-8000 will supply up to 4 x 5780 watts, making these amplifiers supply extremely high performance, and provide cost effective solutions for multiple install and rental applications, for example line array systems.
Features:
Energy saving with over 95% efficiency
Power factor correction (PFC)
Universal 90-250V power supply
2 channel model
Reliable and efficient operation at 2 ohm loads
Internally modular, variable speed fan cooling
DSP operation with 3.3”HD LCD screen
Stereo/parallel/bridge mode
Multiple gain modes
Output limiter
Balanced XLR inputs
32A mains power input socket
Thermal, overload, DC protection
Thermal, fault and limiter indictators

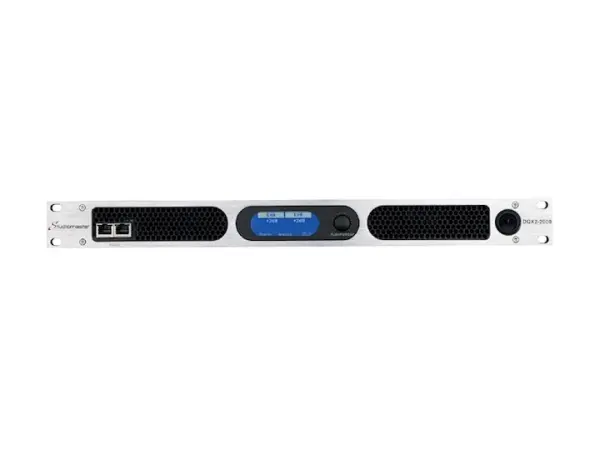

Studiomasters DQX2-1300 Ethernet
(Studio Master DQX 2 1300 E)
